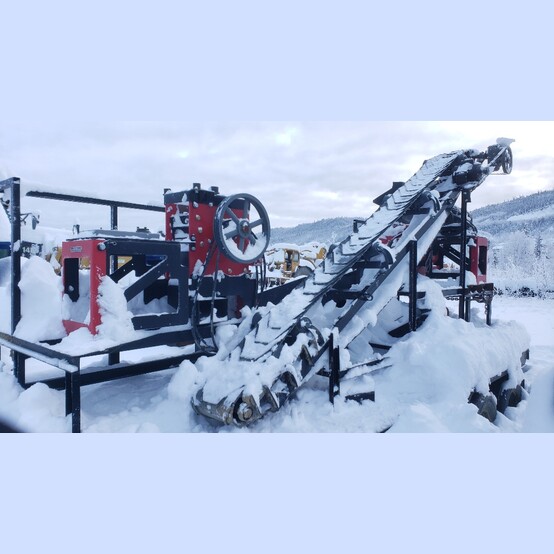

GME Crushing Plant

  • Make: Global Mining Equipment
  • Models: GME10 Jaw Crusher, GME14 Hammermill
  • Condition: Used, Reported in Good Condition
  • Includes New Conveyor
  • Mounted on New Tandem Axle Trailer

  • General Model Specifications:

    • GME10 Jaw Crusher
      • Condition: New
      • Jaw Size: Approx. 10in (254mm) Wide x 4in to 6in (102-152mm) Deep
      • Feed Size: 8in (205mm) Max
      • Discharge Size:
        • Min: 0.25in (6mm)
        • Max: 3in (76mm)
      • Flange/Pillowblock: Blue Brute Bearings
      • Shaft: 2.4in at Camshaft, 2in at Driveshaft
      • Wear Plates: 0.75in (19mm), 450 Brinell Hardness Material
      • Drive: 10HP Electric Motor (Required)
      • Dimensions:
        • Height: 48in (1,220mm)
        • Width: 32in (812mm)
        • Length: 56in (1,422mm)
        • Weight: Approx. 950 Lbs. (430kg)

    • GME14 Hammermill
      • Condition: Used, Reported in Good Condition
      • Quantity of Hammers: 10 Each (Approx Weight of Each Hammer is 8 Lbs. (3.6kg))
      • Feed Size:
        • Max: 2in
        • Recommended: 1in
      • Discharge Size: 100-400 Mesh
      • Pillowblock Bearings: Split Housing Bearings
      • Drive Shaft: 2in
      • Interior Disc System: Able to Change out 10 Hammers in Less than 10 Minutes
      • Wear Plates: 3/8in (9.5mm), 400 Brinell Hardness Material
      • Drive: 15HP Electric Motor
      • Height: 53in (1,346mm) - With Hopper
      • Width: 33in (838mm)
      • Length: 56in (1,422mm)
      • Weight: Approx. 1,400 Lbs. (635kg)

  • Location: Northern Canada
