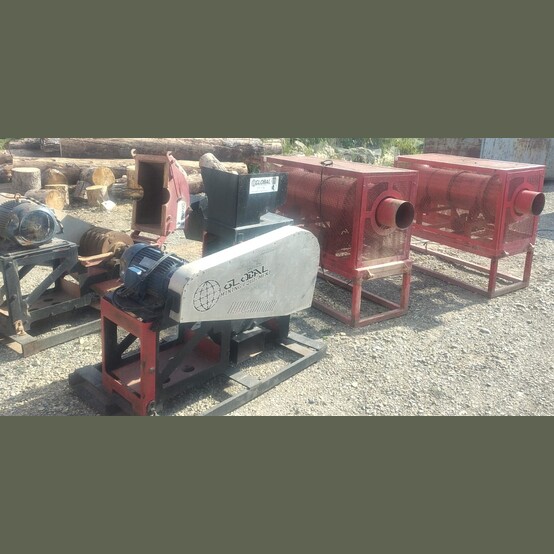

GME Crushing and ORO Concentrating Processing Plant

SOLD - GME10- Jaw Crusher
SOLD - GME14 Hammer Mill

Still Available - ORO Industries Concentrators - 1 Cleaner, 1 Finisher

• Make: Global Mining Equipment and Oro Industries
• Models:
  • Jaw Crusher: GME10 Jaw Crusher
  • Hammer Mill: GME14 Hammer Mill
  • Concentrators:
    • Reverse Multi-Helix Spiral 16in Cleaner
    • Reverse Multi-Helix Spiral 16in Finisher
• Condition: Used, All Reported in Good Condition


• General Model Specifications:

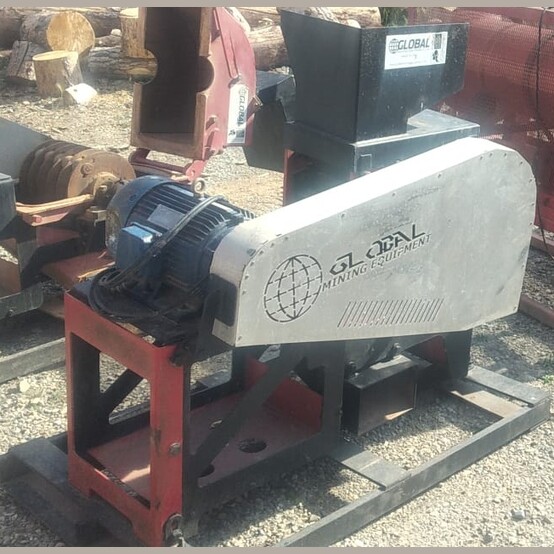

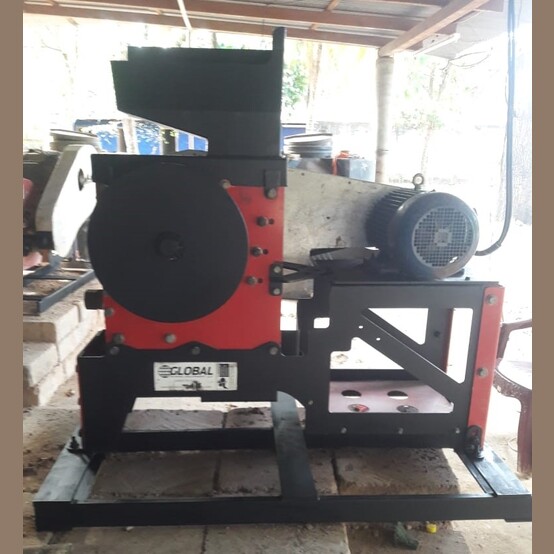

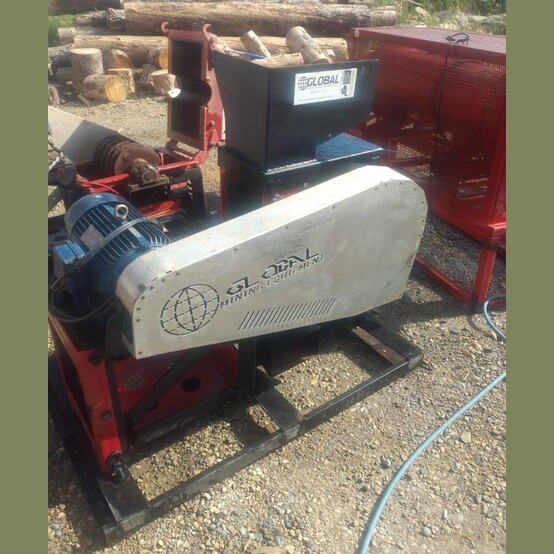

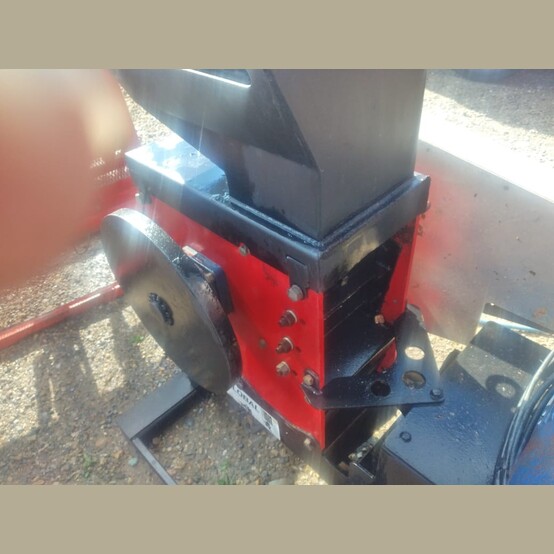

  • 10in Jaw Crusher
    • Make: Global Mining Equipment
    • Model: GME10
    • Size: 10in Wide x 4-6in Deep
    • Condition: Used, Reported in Good Condition
    • Feed Size: 8in (205mm)
    • Discharge Size:
      • Min: 0.25in (6mm)
      • Max: 3in (76mm)
    • Plates: 0.75in (19mm)

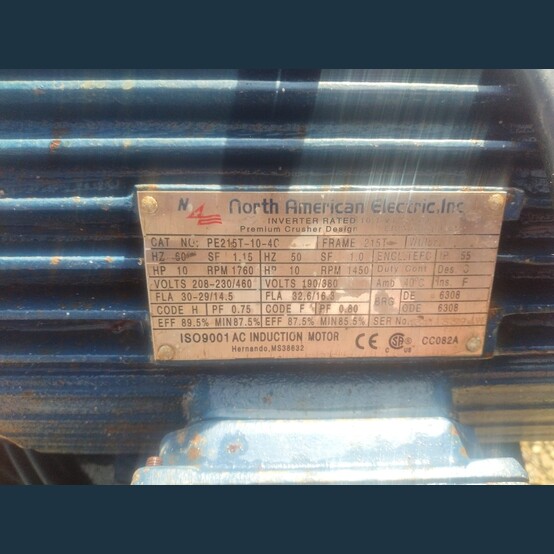

    • Drive: Electric Motor
      • Make: North American Electric
      • Model: PE215T-10-4C
      • Power Output: 10HP
      • RPM: 1760 RPM
      • Voltage: 208-230/460 Volt
      • Frequency: 60Hz
      • Phase: 3-Phase


    • Overall Dimensions:
      • Length: 56in (1,422mm)
      • Width: 32in (812mm)
      • Height: 48in (1,220mm)
      • Weight: 950 Lbs. Approx.

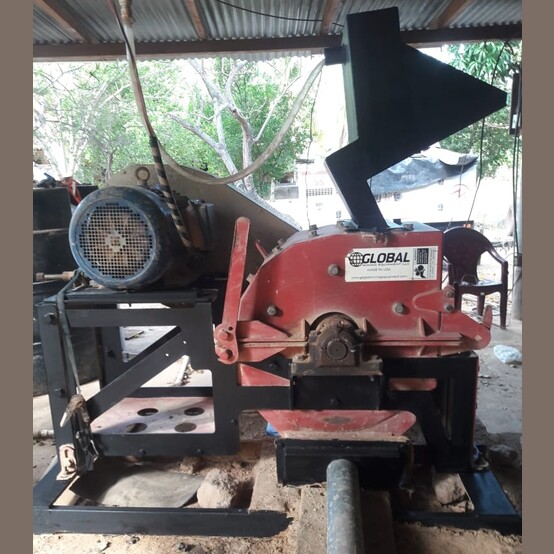

  • 14in Hammer Mill
    • Make: Global Mining Equipment
    • Model: GME14
    • Size: 14in
    • Condition: Used, Reported in Good Condition
    • Feed Size:
      • Nominal: 1in (25mm)
      • Max: 2in (51mm)
    • Discharge Size:
      • Min: 400 Mesh
      • Max: 100 Mesh
    • Plates: 0.375in (9.5mm) 400 Brinnel Hardness Material

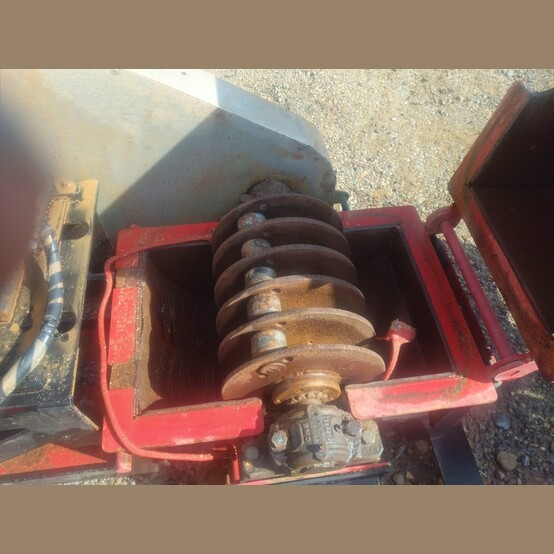

    •  Hammers:
      • Quantity: 10 Hammers
      • Weight: 8 Lbs. Per Hammer

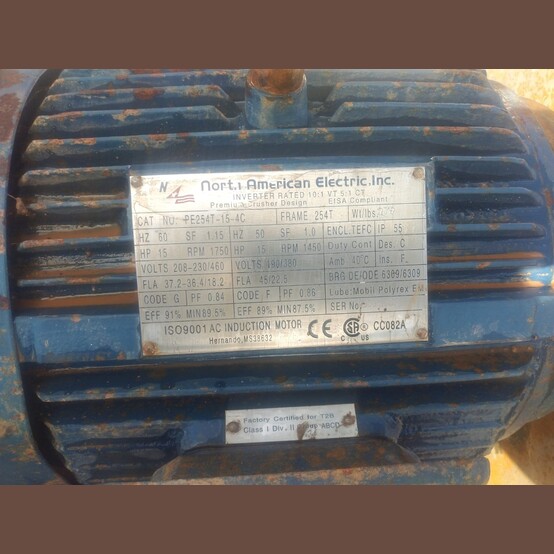

    • Drive: Electric Motor
      • Make: North American Electric
      • Model: PE254T-15-4C
      • Power Output: 15HP
      • Voltage: 208-230/460 Volt
      • Frequency: 60Hz
      • Phase: 3-Phase


    • Overall Dimensions:
      • Length: 56in
      • Width: 33in
      • Height: 53in (with Hopper)
      • Weight: 1,400 Lbs. (Approx.)

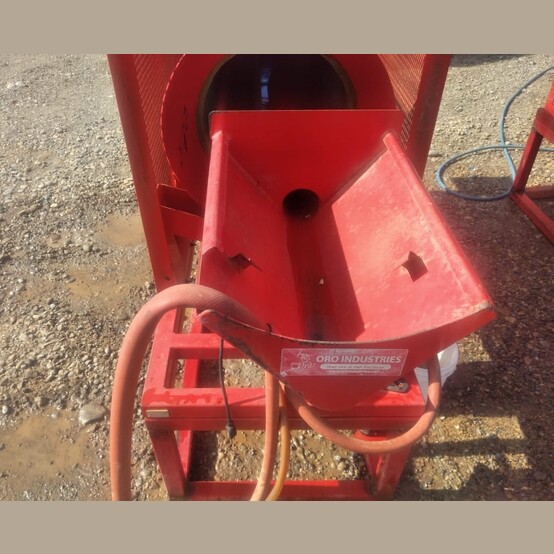

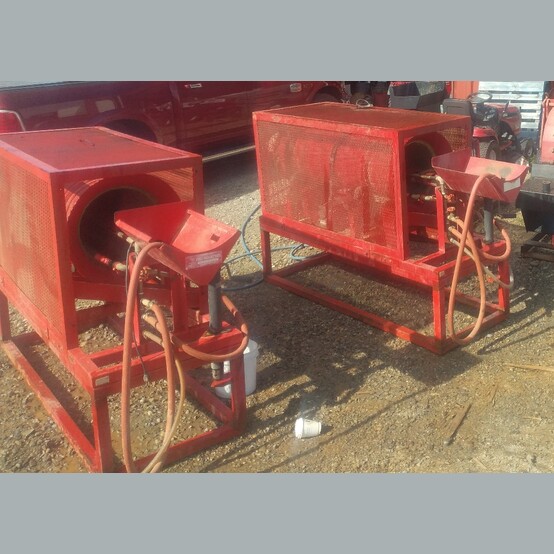

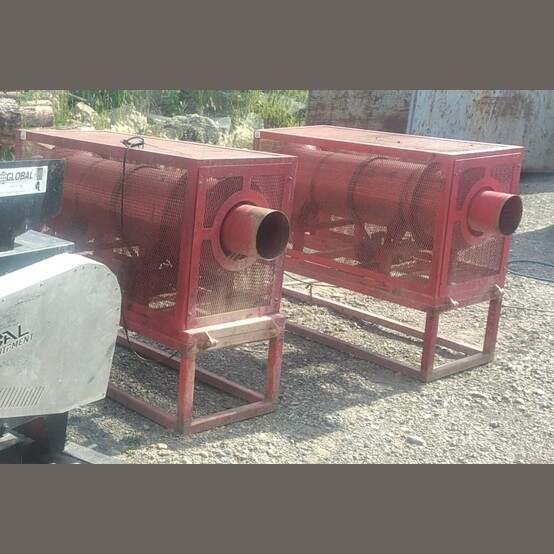

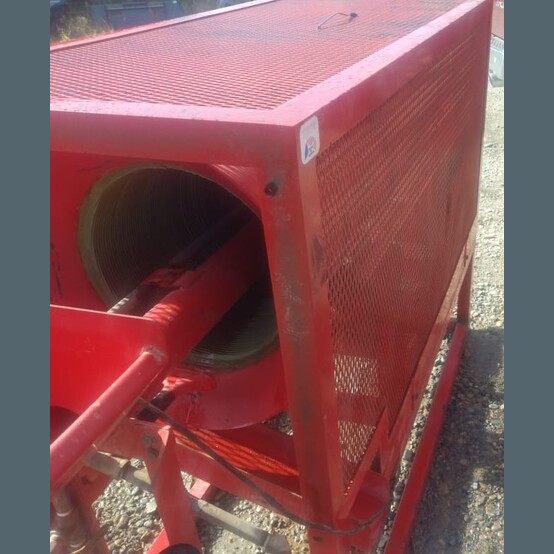

  • Oro Industries Concentrators
    • Quantity: 2 Units - 1 Cleaner, 1 Finisher
    • Make: Oro Industries
    • Model(s):
      • Reverse Multi-Helix Spiral 16in Cleaner
      • Reverse Multi-Helix Spiral 16in Finisher
    • Size: 16in
    • Condition: Used, Reported in Good Condition


    • General Model Specifications:

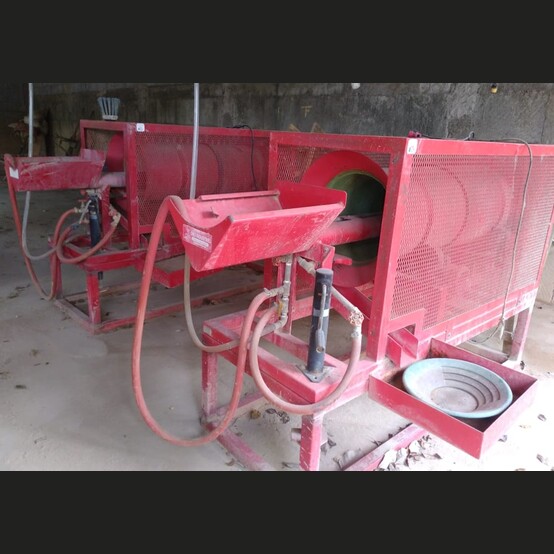

      • Model: 16in Cleaner
        • Production Rate: 1–2 Tons/Hour
        • Water Consumption: 15–20 GPM @ 20–40 PSI
        • Power Requirements: 0.5HP @120V (50 or 60Hz)
        • Powder Coat Finish
        • Dimensions:
          • Length: 84in
          • Width: 36in
          • Height: 60in


      • Model: 16in Finisher
        • Production Rate: Up to 1 Ton/Hour.
        • Can be Setup as a Continuous System or a Batch System
        • Powder Coat Finish
        • Dimensions:
          • Length: 84in
          • Width: 36in
          • Height: 60in


• Location: Western Canada
