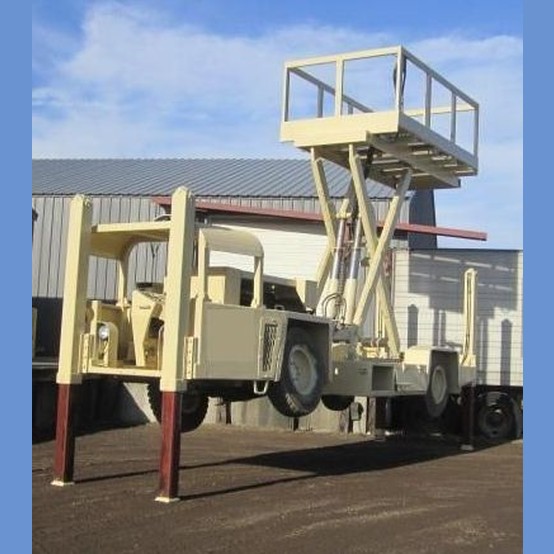

• Offers a maximum platform height of 4.2 m. (14 Ft.) with a capacity of up to 2,720 kg (6,000 lb).
  • Comes equipped with a telescoping ladder that allows for easy access and egress from the platform without having to lower the platform.
  • Available fold-down wings or sliding platform features provide added flexibility to perform required functions without repositioning the machine.
  • Protects miner safety through purpose-built design, including a fully stabilized non-skid platform with leveling capability and fall arrest anchor points located throughout the basket for quick and easy tie off.
  • The lifting structure is compliant with all relevant ANSI, CSA and AS standards.
  • Engine:
    • Tier III approved engine - 4-cylinder.
      • Mercedes Benz OM904LA, 129 kW (173 hp) @ 2200 rpm.
      • Cummins QSB4.5, 127 kW (170 hp) @ 2200 rpm.
    • Liquid-cooled, turbocharged.
    • 113 L (30 gal) fuel tank with self-closing cap.
  • Exhaust System:
    • Catalytic exhaust conditioner and silencer.
  • Transmission:
    • Dana Clark 32000 powershift transmission.
    • Three speeds forward and reverse.
    • 4-wheel drive.
  • Axles:
    • Planetary drive axles.
      • Heavy-duty Carraro 28.43 axle package.
      • Enhanced capacity Carraro 28.60 axle package.
  • Tires:
    • Mine service tires.
      •  10.00×20-16pr.
      •  12.00×20-28pr.
  • Brake System:
    • Fully hydraulic wet disc service brakes on each axle.
    • Spring applied, hydraulic pressure release wet disc secondary brake.
    • Automatic secondary brake application upon loss of brake accumulator pressure, transmission pressure or electrical power.
  • Steering:
    • Orbitrol controlled articulated frame steering.
    • Heavy-duty, self-aligning bearings inside replaceable inserts.
    • Two double-acting steer cylinders with replaceable bushings in cylinder and frame ears.
    • 40° articulation each direction.
  • Hydraulic System:
    • Hot side/cold side engine layout.
    • Hydraulic hoses routed to cold side of engine.
    • Open center hydraulic circuits with gear hydraulic pump.
    • Diagnostic test ports with quick couple fittings for: each axle, service brake application pressure, and hydraulic pumps.
    • 10-micron return filter.
    • 151 L (40 gal) hydraulic reservoir.
  • Operator Compartment:
    • Three-point contact for entry and exit.
    • ROPS/FOPS certified compartment (SAE J1040C, CSA B-352, ISO 3471).
    •  Open canopy.
    • Enclosed cabin with heater and air conditioner.
    • Operator and passenger seating.
    • Mechanical suspension operator seat.
    • Retractable lap seat belts.
  • Other General Equipment:
    • Variable audio backup alarm (87-112dBA).
    • 2.3 kg (5 lb) fire extinguisher.
    • Wheel chocks.
    • Four nozzle Ansul fire suppression system tied to engine shutdown (LTA-101-30).
  • Location: Eastern USA
