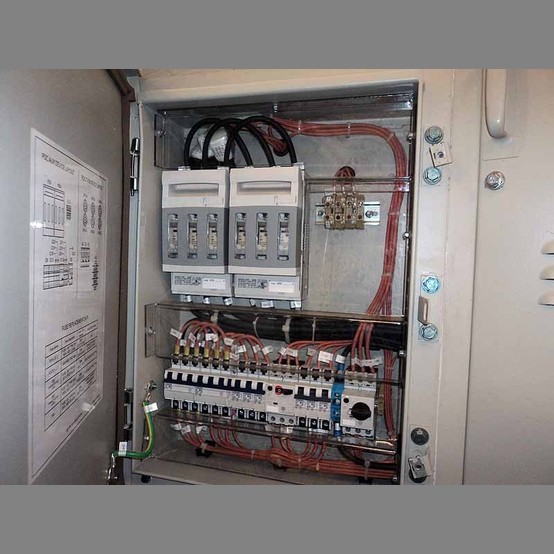

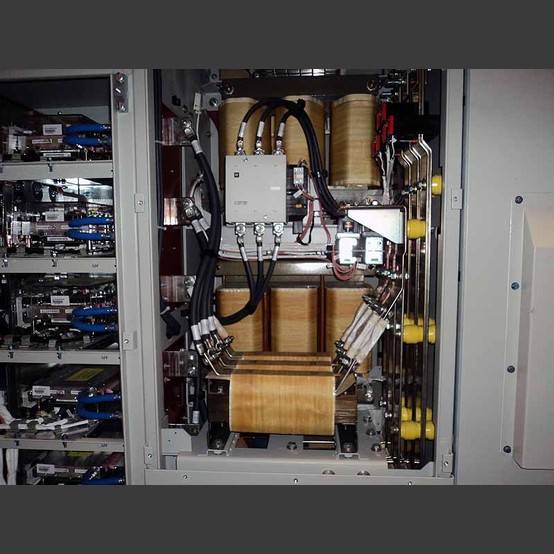

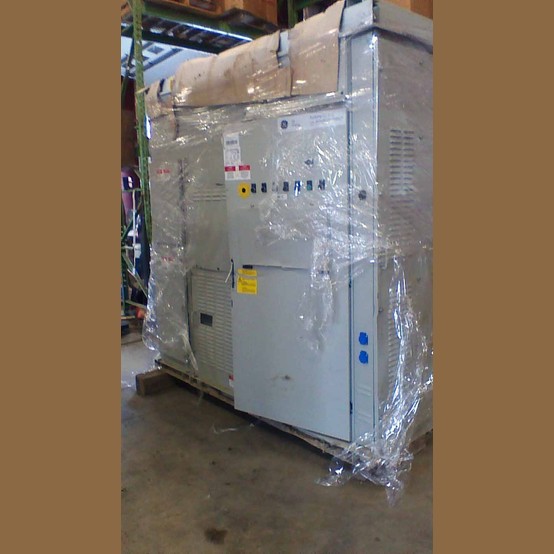

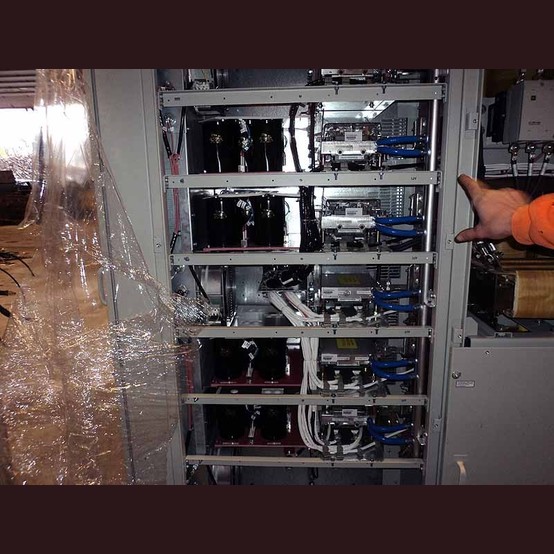

• General Electric Cabinet, Contol and Converter.
  • For double fed induction generator in wind generation application.
  • Manufactured in 2014.
    • Water cooled.
    • Connection: Grid.

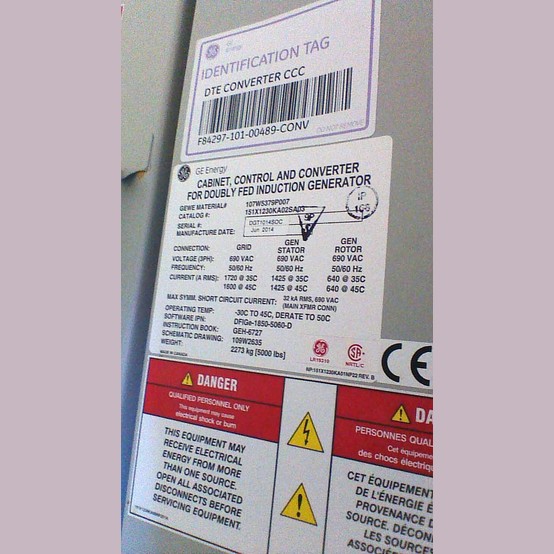

    • Voltage (3 phase):
      • Grid: 690 VAC.
      • Gen stator: 690 VAC.
      • Gen rotor: 690 VAC.
    • Frequency:
      • Grid: 50/60 Hz.
      • Gen stator: 50/60 Hz.
      • Gen rotor: 50/60 Hz.
    • Current (A RMS):
      • Grid: 1720 @ 35°C / 1500 @ 45°C.
      • Gen stator: 1425 @ 35°C / 1425 @ 45°C.
      • Gen rotor: 640 @ 35°C / 640 @ 45°C.
    • Max symm. short circuit current :
      • 32 kA RMS, 690 VAC (Main XMFR connection).

Please contact us for more information.
