Gemeni GT1000 Concentrating Table and Sweco Screen Combo

Concentrating Table:

• Make: Knelson (Gemeni)
• Model: ATS1000 (GT1000)
• Condition: Used, Reported in Good Condition - Discoloring from Zinc Laden Ore
• Nominal Feed Rate: 450kg/hr. (1/2 Ton/Hr.)
• Feed Density Recommended: 60-70% Solids
• Feed Size Nominal Top: 800-1000 Microns
• Nominal Wash Water Required: 38 Liters/min
• Nominal Wash Water Pressure: 30kPa

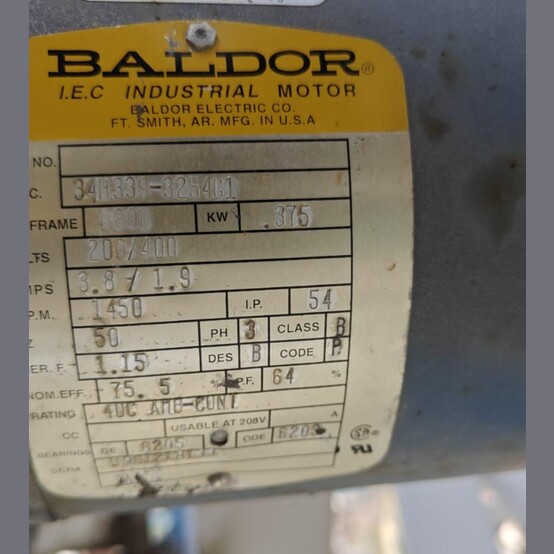

• Drive: Baldor Electric Motor
  • Power Output: 0.5HP (0.375kW)
  • Rotating Speed: 1450 RPM
  • Voltage: 200/400 Volt (Usable at 208 Volt)
  • Current: 3.8/1.9 Amps
  • Frequency: 50Hz


• Dimensions:
  • Length: 2,781mm (109.5in)
  • Width: 1,714mm (67.5in)
  • Height: 1,229mm (48.4in)
  • Weight: 540 kg Approx.

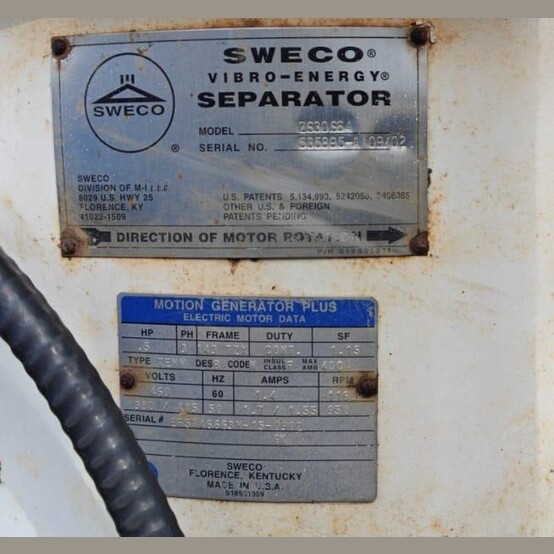

Sweco Screen:

• Make: Sweco Separators
• Model: ZS30S64
• Condition: Used, Reported in Good Condition - All New Springs Installed
• Size: 30in
• Deck: Single
• Screen Spacing: 800-1000 Microns
• Feed: Stainless Steel Feed Box Mounted Above Screener
  • With Ball Valve to Control Feed
• Drive: Sweco Electric Motor
  • Power Output: 0.5HP
  • Rotating Speed: 1150 RPM (930 RPM at 50Hz)
  • Voltage: 460 Volt (380/415 Volt at 50Hz)
  • Current: 1.4 Amps (1.7/1.55 Amps at 380/415 Volt)
  • Frequency: 50/60Hz


• Overall Dimensions: All Mounted on Common Operating Stand
  • Length: 415cm
  • Width: 230cm With Feed Box Removed
  • Height: 262cm (230cm with Feed Box Removed)
  • Weight: 1,000 kg Approx.


• Location: Northern Europe
