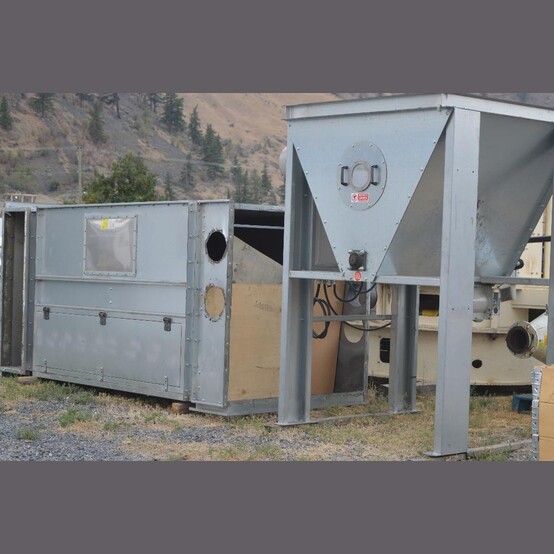

Farr 410 Gold Series Baghouse

  • 64 Sock Capacity
    • Sock Dimensions: 5" Diameter x 90" Long

  • Autel Pulse Valve Assembly
    • 8 Pulse Valves
    • Pressure Gauge: 0-180psi

  • Top Section Dimensions:
    • 91" Long x 79" wide x 62" Deep
    • Upper Air Outlet: 57.5" Long x 14.5" Deep

  • Bottom Hopper Section With Internal Auger:
    • Dimensions: 60" Long x 57" Wide x 48" Tall

  • Auger
    • Stainless Steel Flights
    • Dimensions: 56" Long x 6" Diameter

  • Auger Motor and Gearbox
    • Motor: Elvem TEFC C-Face Gear Header
      • 0.9 kW @ 60Hz (0.75kW @ 50Hz)
      • 275/480 VAC @ 60Hz (230/400 VAC @ 50Hz)
      • 1680 RPM @ 60Hz (1430 RPM @ 50HZ)
    • Gearbox: Bonfiglioli Worm Gear
      • Model: W86 U P80 B5
      • Output: 47 RPM

  • Rotary Valve Motor and Gearbox
    • Rotary Valve
      • Stainless Veins with Rubber Wear Pads
      • 8" Diameter x 10" Long
    • Motor: Elvem TEFC
      • 0.9 kW @ 60Hz (0.75 kW @ 50Hz)
      • 275/480 VAC @ 60Hz ( 230/400 VAC @ 60Hz)
      • 1680 RPM @ 60Hz ( 1430 RPM @ 50 Hz)
    • Gearbox:
      • Model: VP063U

  • VFD Control for Auger
    • 1 HP
    • 460 Volt

  • Control Panel For Pulse Valve Assembly, Screw Extractor, and Rotary Valve

  • Hopper Legs Made From 10" x 3" Galvanized Channel
    • Overall Height With Legs: 91" Tall
