Falcon SB250 Centrifugal Gold Concentrator ID: 1381013

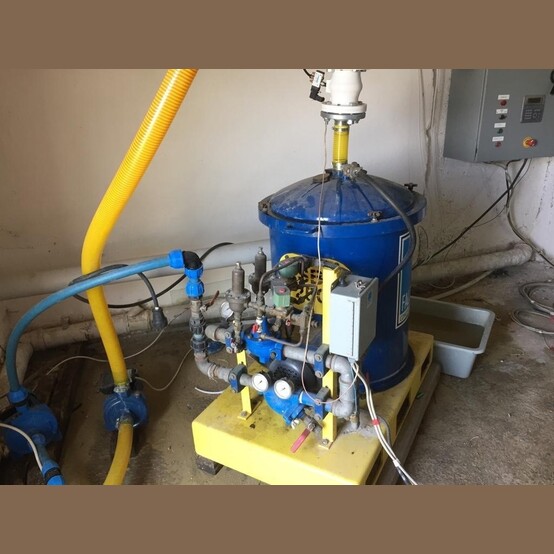

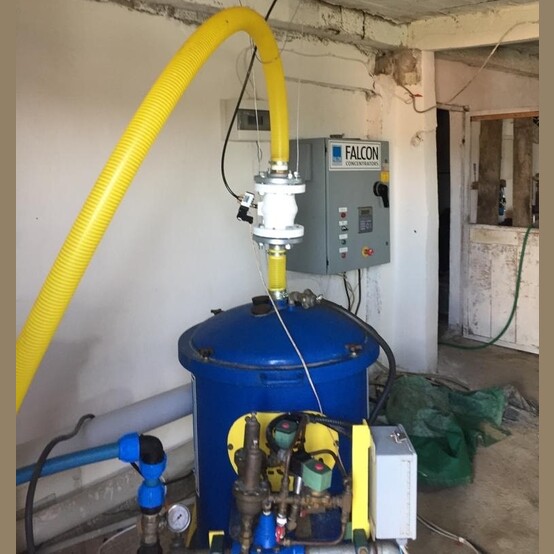

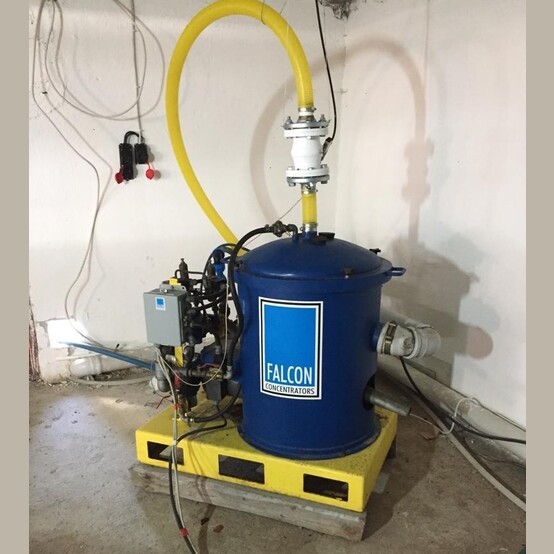

Falcon SB250 Centrifugal Gold Concentrator

  • Make: Sepro Falcon
  • Model: SB250
  • Year: 2014
  • Condition: Used, Reported in Very Good Condition
  • Discharge: Automated
  • Comes with Variable Speed Control and Electric Motor
  • Recommended Solids Capacity: 1 - 10 TPH
  • Approximate Max Slurry Capacity: 20m³/hr.
  • Concentrating Surface Area: 0.17m²
  • G-Force Range:
    • Upper: 200 G's
    • Lower: 50 G's
  • Machine Weight: 269 kg
  • Motor Power: 2.2kW (3.0HP)
  • Process Water Consumption: 1.8-2.7 m³/hr.
  • Continuous Water Supply Pressure: 2-3 bar
  • Recommended Max Feed Particle Size: 2.0mm
  • Absolute Max Feed Particle Size: 2.5mm
  • Maximum Feed Percent Solids: 55-70%
  • Concentrate Slurry Flush Volume: 50 Liters
  • Concentrate Solids Flush Volume: 1,010cm³
  • Dimensions:
    • Width: 1.04m
    • Length: 0.66m
    • Height: 1.02m

  • Location: Europe

View More Gold Concentrators

Image 1 of 3

Model:SB250
Year:2014
