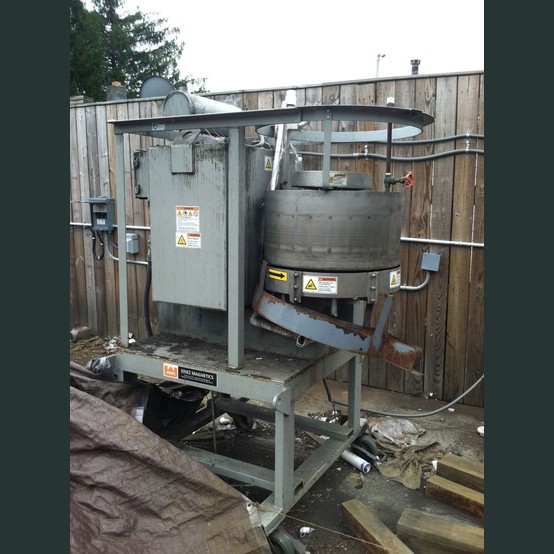

Eriez CF-5 WHIMS Continuous Feed High Intensity Separator ID: 202296


  • Model: CF-5 WHIMS.
  • Volts: 115.
  • Hertz: DC.
  • Amps: 15.217.
  • Separator will generate a maximum magnetic field strength of approximately 8000 gauss in the open-air gap or approx. 20,000 gauss in the center of the matrix.
  • Annular separating ring will secure the matrix. Ring complete with matrix and drive table.
  • Stationary discharge tray located beneath the ring segregates the nonmagnetic, middling, and magnetic products. Discharge tray incorporates movable dams for the concise splitting of the products.
  • Matrix is 400 series Stainless steel Medium Expanded Metal Matrix (MEX).
  • Electromagnetic coil will draw 1350 watts at 115 VD .
  • Coil controlled with Model 15C41 variable rectifier in Nema 12 enclosure.
  • Rectifier houses variable speed drive control.
  • Control box input voltage:
    • 460 VAC.
    • 60 Hz.
    • 3 phase.
  • Separating ring driven by ¾ HP Motor.
  • Weight: 2,685 lbs.
