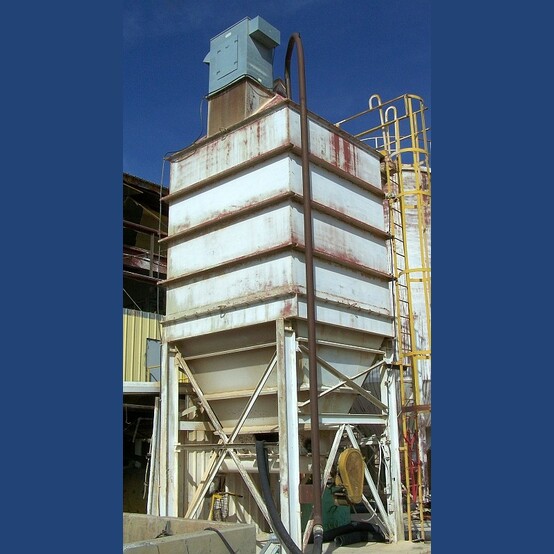

- Enclosed Silo.
- Main Section: 10 ft. x 9 ft. x 10 1/2 ft. deep.
- All panels 5/16” thick.
- C/W 5” channel stiffeners approx. every 33”.
- 8 ft. conical section bottom section.
- 5 ft. deep sealed lid.
- Mounted on 10” X 5.75” – 30 lb. wide flange stand.
- With 2” x 2.5” back to back angle iron cross bracing.
- Shaker type dust collector.
- Model: FT24-SV-SP. 1/4 HP electric motor.
- 6.5 in. dia. x 10 ft. long discharge auger.
- 3/16 in. flights, 5 in. pitch, and 2 1/2 in. shaft size
- Driven by a 2 hp electric motor.
- Overall Height: 31 ft.
-
Located in Savona BC, Canada.
-
