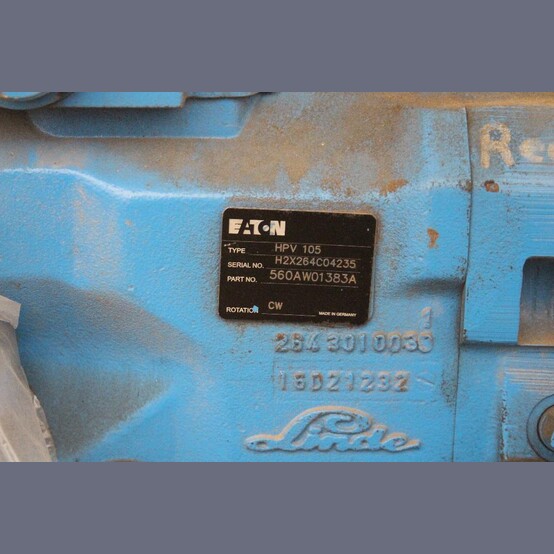

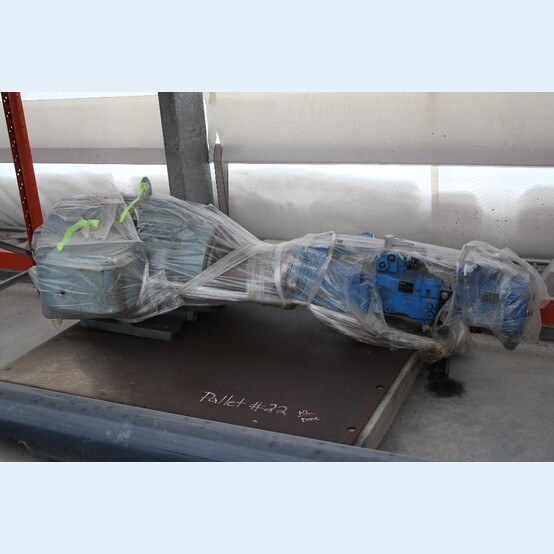

Eaton-Linde HPV 105 Piston Pump

• Make: Eaton-Linde
• Model: HPV 105
• Design: Variable Pump Closed Loop Operation
• Displacement: 105cm³/rev
• Speed Range: 2900 RPM (3200 RPM Intermittent)
• Operating Pressure: 420 bar
• Max Pressure (Intermittent): 500 bar
• Torque: 418 Nm Continuous
• Power: 127HP at Max Continuous Speed

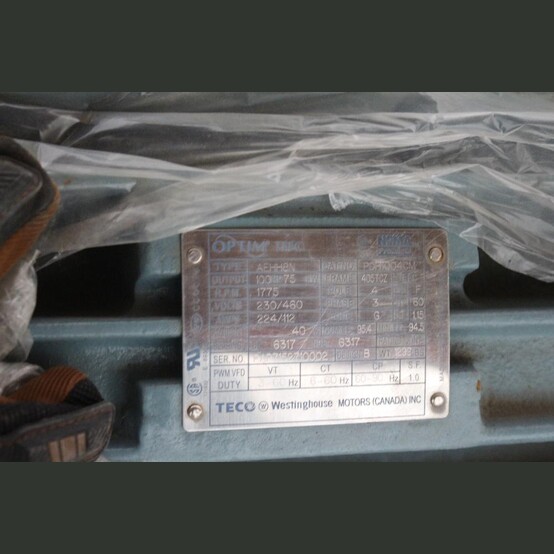

• Drive: Electric Motor
  • Make: TECO Westinghouse
  • Model: AEHH8N
  • Power Output: 100HP (75kW)
  • RPM: 1775
  • Voltage: 230/460 Volt
  • Amperage: 224/112 Amps
  • Frequency: 60Hz
  • Phase: 3-Phase


• Location: Western Canada
