Eagle Ultramax 500 Portable Impact Crusher Plant ID: 1326590

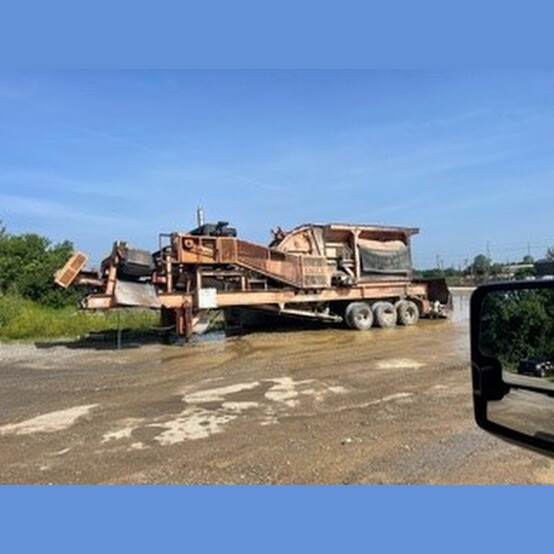

Eagle Ultramax 500 Portable Impact Crusher Plant

  • Make: Eagle Crushers
  • Model: 33D5170 (Ultramax 500)
  • Year: 1996
  • Condition: Used
  • Portable: Easily Transports in One Pull. Check with your DOT
  • Hydraulic Lift and Leveling System
  • Discharge Conveyor under Crusher
  • Ding Magnet
  • Drive: John Deere 6.8L Power Unit

  • General Model Specifications:
    • Impactor: UM-05
      • Model Rotor: 40in x 33in (1,016mm x 838mm)
      • Feed Opening: 33in x 32in (838mm x 813mm)
      • Power Required: 75-150HP (56-112kW)
      • Approx. Weight: 20,900 Lbs. (9,500kg)
      • Rotor Weight: 7,000 Lbs. (3,200kg)
      • Production Capacity: 150 TPH (137 MTPH)
    • Feed Hopper Capacity: 9yd³ (6.9m³)
    • Feed Hopper Capacity: 12.2 Tons (11.1 Metric Tons)
    • Vibrating Feeder: 32in x 16ft (0.8m x 4.9m)
    • Feeder Grizzly Deck: 60in Long 2-Step (1,524mm 2-Step)
    • On-Plant Power Supply Diesel: 250HP (184kW Diesel Engine and 80kW Generator)
    • Discharge Conveyor Width: 36in  (914mm)
    • Two Deck Inclined Screen: 4ft x 12ft (1.2m x 3.7m)
    • Top Screen Deck Cross Conveyor Width: 18in (457mm)
    • Bottom Screen Deck Chute: Yes
    • Fines Screen Conveyor Width: 42in (1,067mm)
    • Return Conveyor (Hydraulic Fold) Width: 18in (457mm)
    • Operating Length: 63ft (19.2m)
    • Gross Weight: 90,500 lbs. (41,100kg)
    • Travel Length 57ft (17.4m)
    • Travel Width: 11ft (3.4m)
    • Travel Height: 13.5ft (4.1m)

  • Location: Northeast USA
