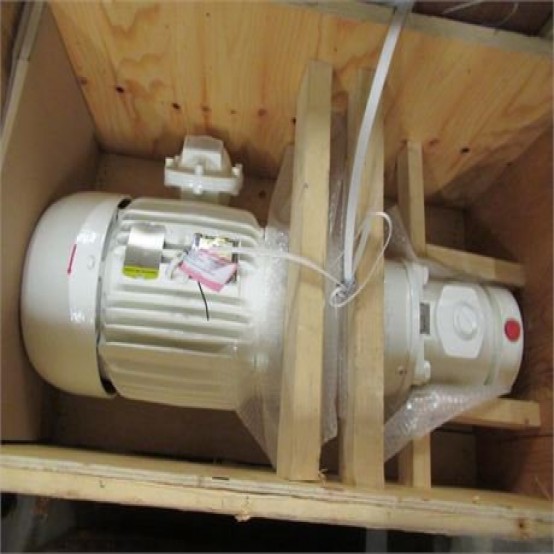

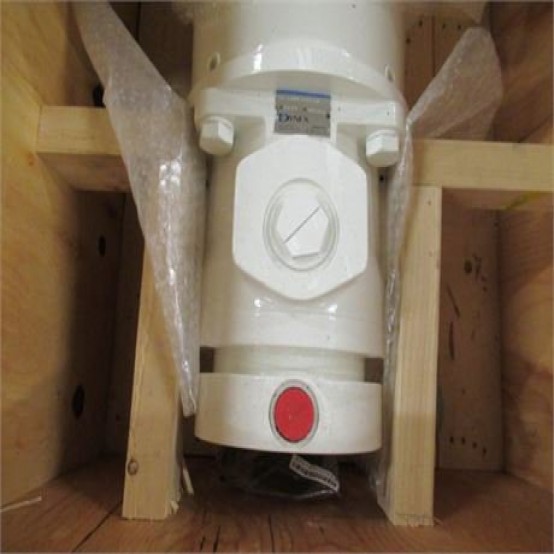

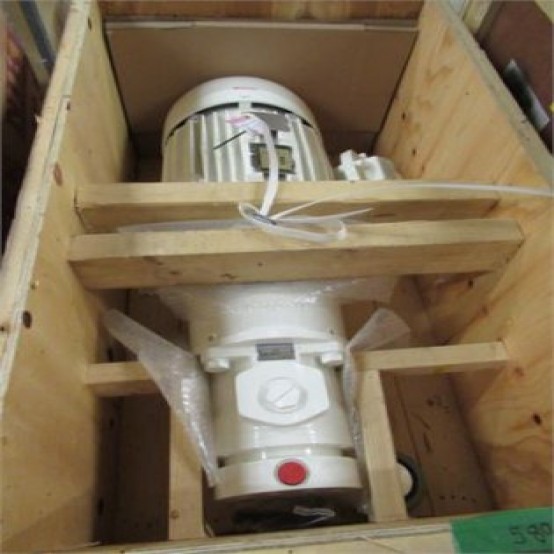

Dynex PF4000 Series Checkball Piston Pump with 15HP 575V Baldor Explosion Proof Motor

• Make: Dynex
• Model: PF4000

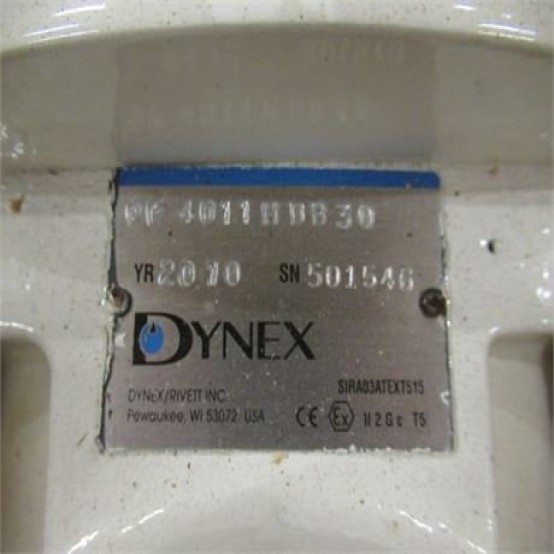

• Part #: PF4011HSB30
• Year: 2010
• Pump Type: PF40 Fixed Displacement CheckBall Piston Pump
• Output Flow: 7.3 GPM (27.6 L/min)
• Operating Pressure: 10,000 PSI (700 Bar) High Pressure
• Speed:
  • Rated: 1800 RPM
  • Max: 2400 RPM
• Driveshaft: SAE Spline 1.250in (31.75mm)
• Ports: Inlet No.24 SAE; Outlet G 3/4 (BSPP)
• 10 Piston Pump: Full Flow From Single Outlet

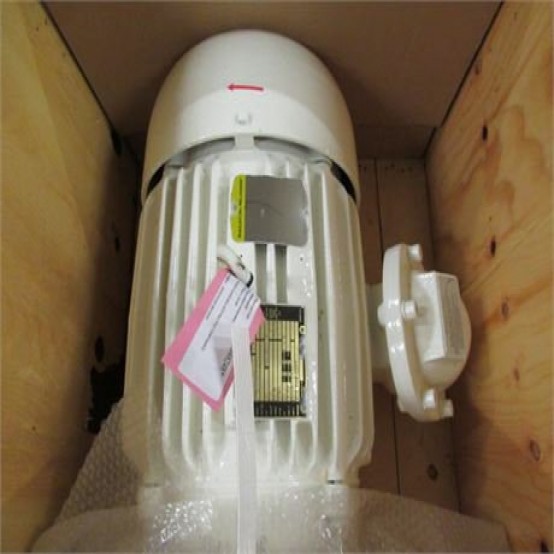

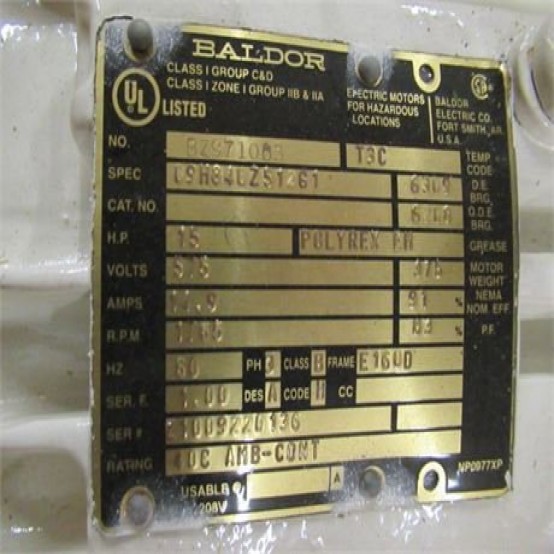

• Drive: Baldor
  • Power: 15HP
  • Voltage: 575 Volt
  • RPM: 1755 RPM
  • Phase: 3-Phase
  • Frequency: 60Hz

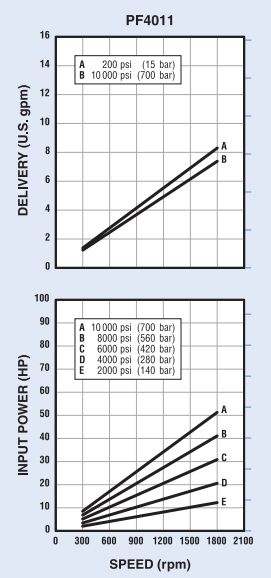

• View Spec Sheet Below

Description: Contamination tolerant, for operation in dirty environments. A wide range of fluid compatibility, for reliable operation with low-lubricity, low viscosity fluids. Bi-directional rotation providing constant flow direction regardless of drive shaft rotation.

•  Location: Eastern Canada
