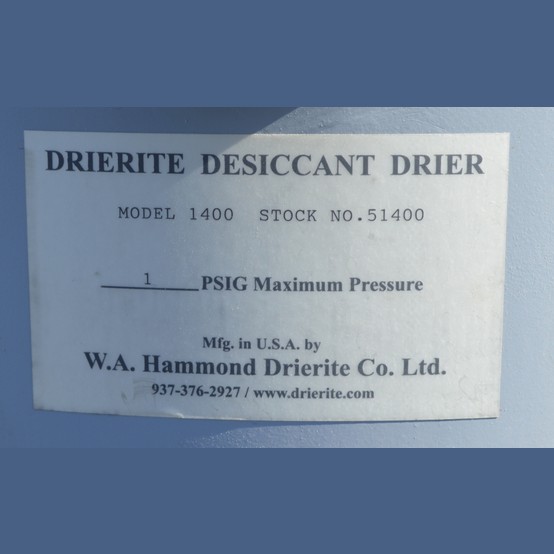

• Model: 1400
• Inlet: 4 in.
• Outlet: 4 in.

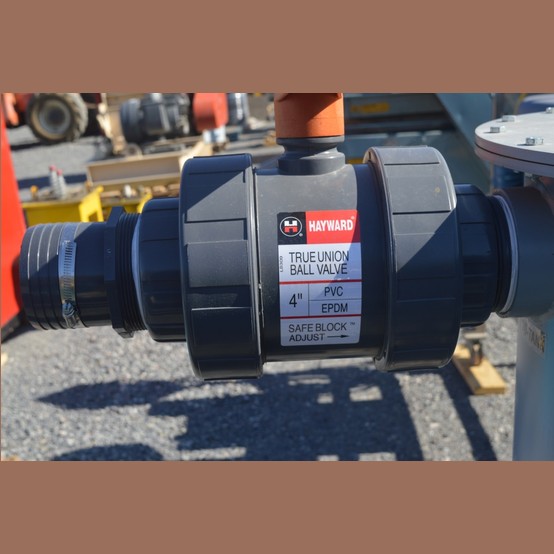

• 2 x Hayward True Union Ball Valves
  • 4 in. PVC
  • One on Each Inlet/Outlet

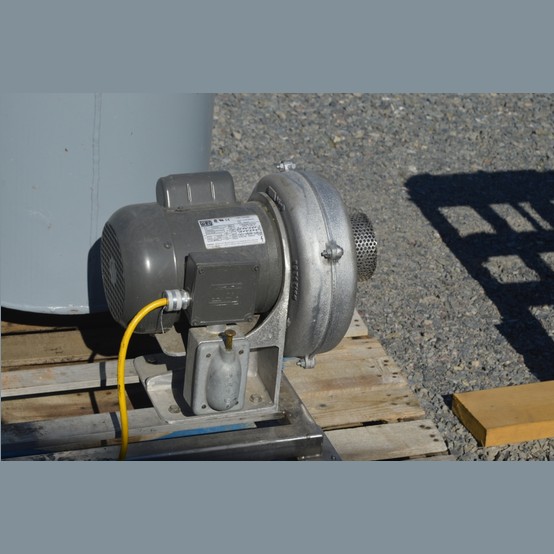

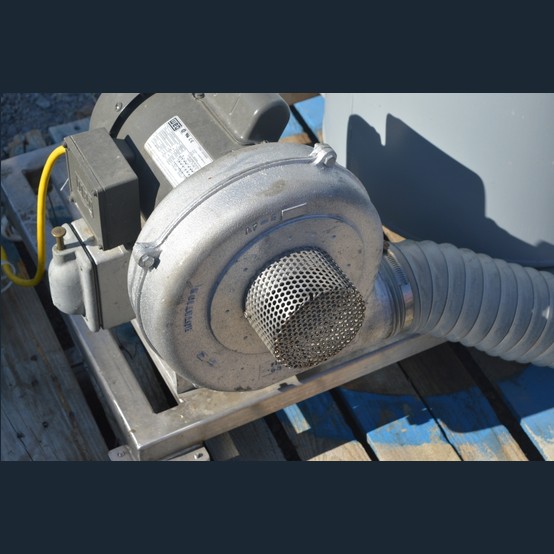

• Blower
  • Model: AF-8
  • American Fan Company Cast Aluminum
  • Inlet/Outlet: 4 in.

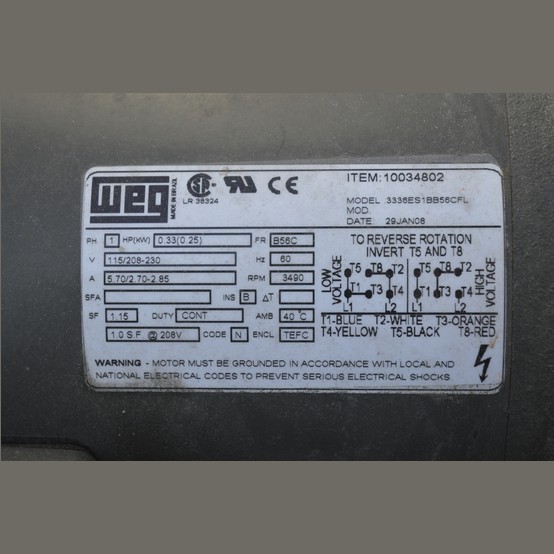

• WEG Motor
  • 0.33 HP
  • ACV: 115/208-230
  • Single Phase
  •  RPM: 3490
• Steel Fan: Approx 8 in. Fan
• Drier Canister Dimensions: 20 in. Dia. x 48 in. High
• Mounted on Aluminium Frame 2 x 2 Square Tubeing with
  • Castor Wheels

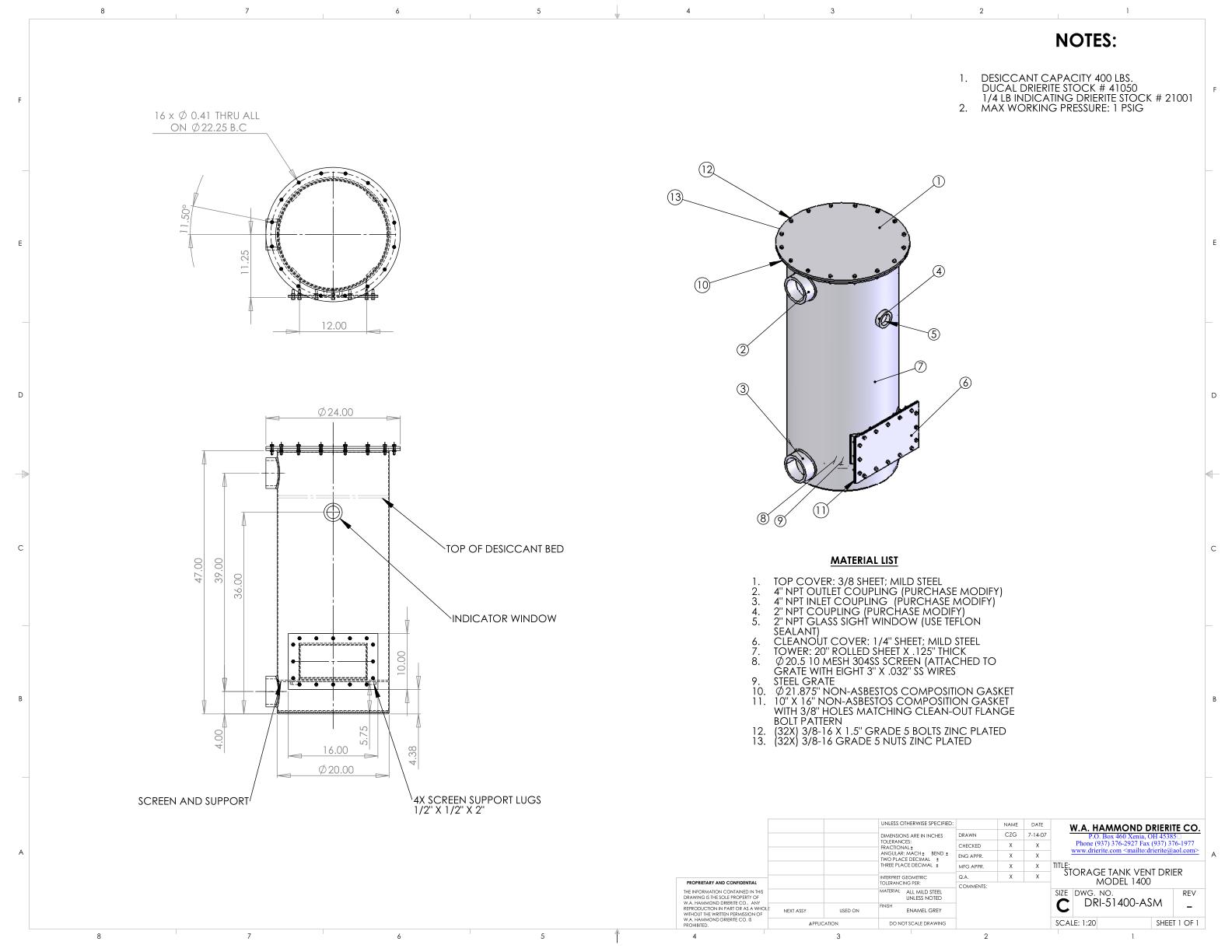

• View Spec Sheet Here: Specs

• Location: British Columbia, Canada
