Dresser Roots 3000HP Centrifugal Compressor ID: 142032


Dresser Roots 3000HP Centrifugal Compressor

  • Model/Size: OIB-75
  • Condition: Unused
  • Rated Flow: 42,670 ACFM
  • Max Working Pressure: 17.9 PSIG
  • Rated Discharge Pressure: 28.5 PSIA
  • Max Working Temperature: 255°F (124°C).
  • Min Continuous Speed: 7651 RPM

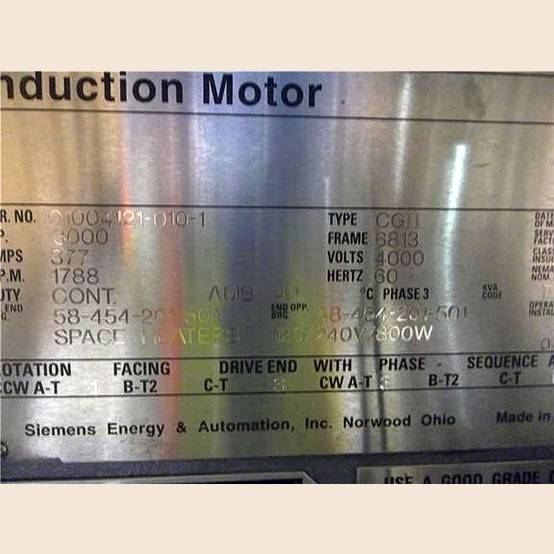

  • Drive: Electric Motor
    • Power Output: 3000 HP
    • Rotation Speed: 1,788RPM
    • Voltage: 4,000 Volts
    • Frequency: 60Hz
    • Phase: 3-Phase
  • Mounted on Skid
    • With Power Oil Lube System for All Components
      • With (2) 7.5HP Motors and Lufkin Speed Increaser

  • Overall Dimensions:
    • Length: 35ft
    • Width: 11ft 1in
    • Height: 8ft 6in
    • Weight: 58,000lbs
  • 3000HP, 1788 RPM motor is still on the skid, and available as a separate item.
  • Location: Central USA

Please contact us for more information
