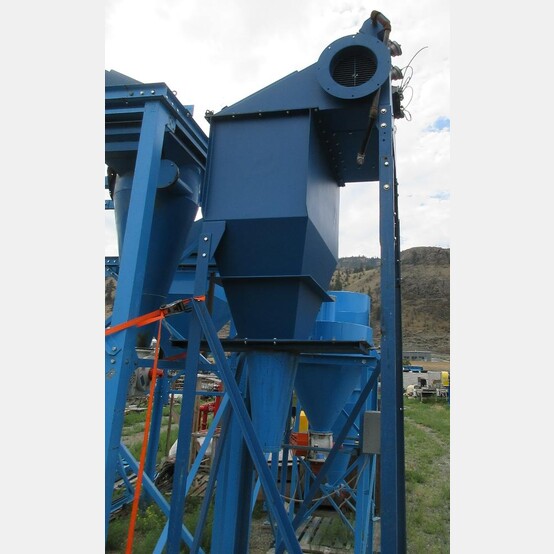

Donaldson Power-Core CPC4 Dust Collector

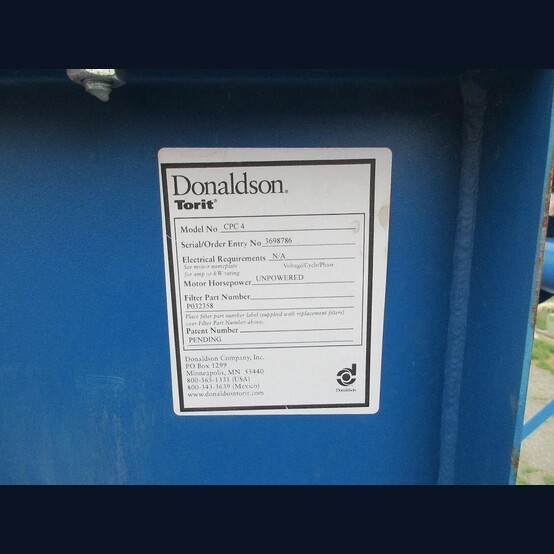

• Make: Donaldson Torit
• Model: CPC 4
• Filter Packs: 4
• Filtration Area: 24.8m²
• Valves:

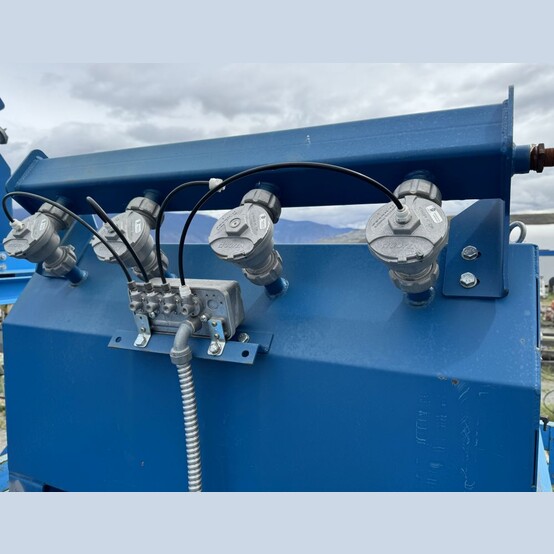

  • 4 Goyen Air Operated.

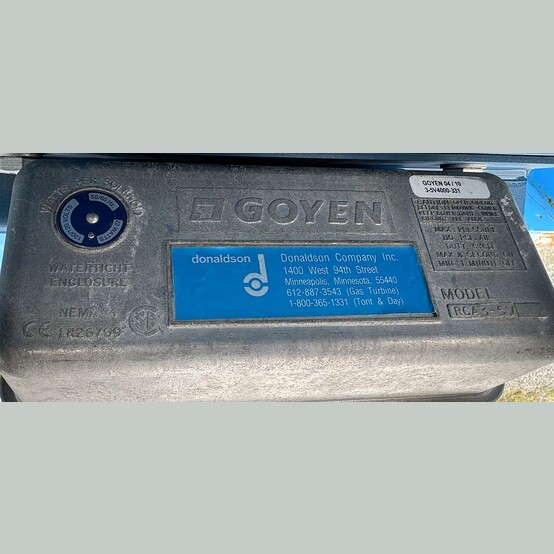

• With Goyen RCA3-5V Pilot Solenoid Valve Controller
• Dirty Air Inlet: 3in (Necked Down)
• Clean Air Outfeed: 12in
• Range: 1,400-2,700 CFM
• Working Compressed Air Pressure: 6.2 bar (90 PSIG)
• Atmospheric Air Volume (F.A.D. at 12s Intervals): 20m³/h (11.8 CFM)
• Pulse Duration: 100ms

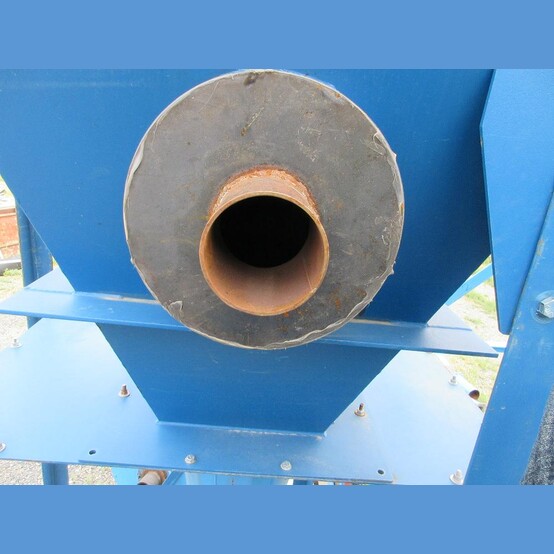

• Dust Disposal Outlet: 6in

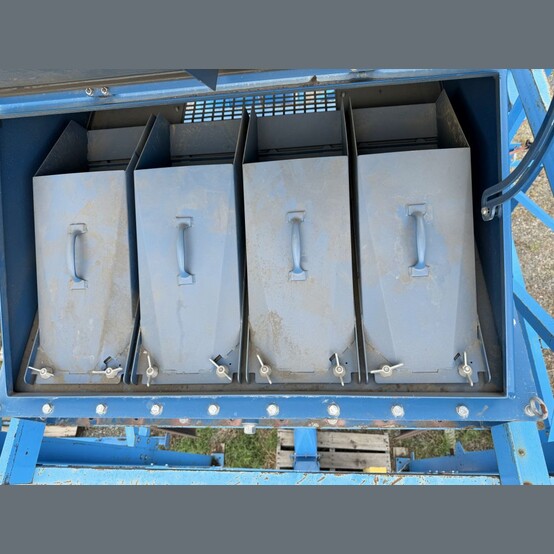

• Disposal Hopper Dimensions:
  • Height: 52in
  • Width: 42in
  • Depth: 26in
• Manual controlled sliding discharge gate
• Cone Underneath Hopper: 15in Dia. x 25in Long
• Mounted on 3in x 3in Angle Iron Stand


• Overall Dimensions:
  • Height: 13ft 11in
  • Width: 52in
  • Depth: 52in
  • Weight: 531 Kg (Collector and Dust Container)


• Location: Savona, British Columbia, Canada
