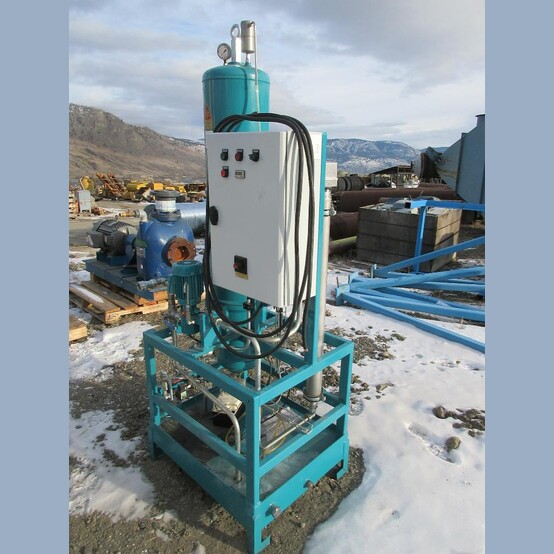

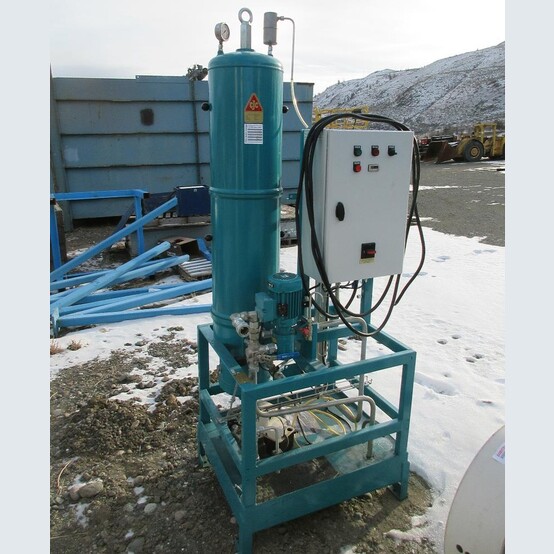

CJC PTU.327/180 Oil Filter Separator

• Make: CJC (C.C. Jensen A/S)

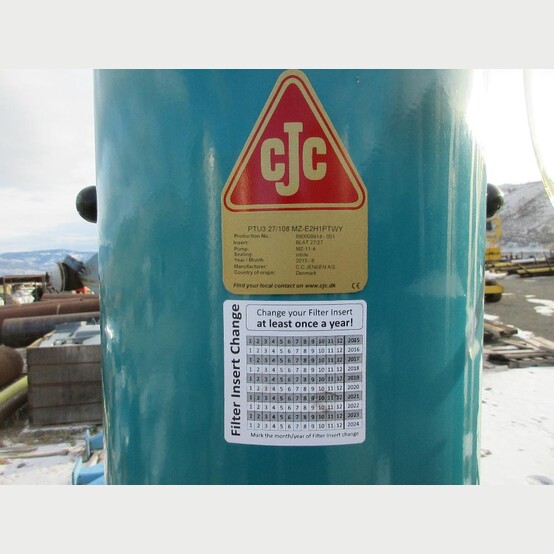

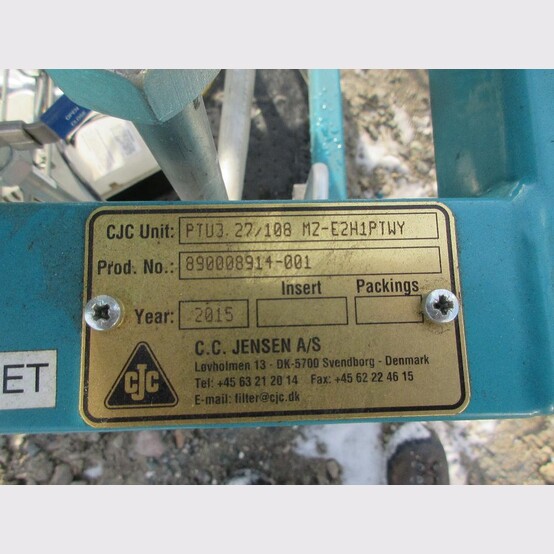

• Model: PTU.3 27/108 MZ-E2H1PTWY
• DOM: June 2015
• Condition: Used, Reported in Good Condition
• Type: Oil Filtration System - Removal of Particles, Water and Oil Degradation Products from Hydraulic Fluids, Lubrication Oils and Diesel Fuel Oils
• Pump Flow: 150-900 Liters Per Hour  (40-238 GPM)

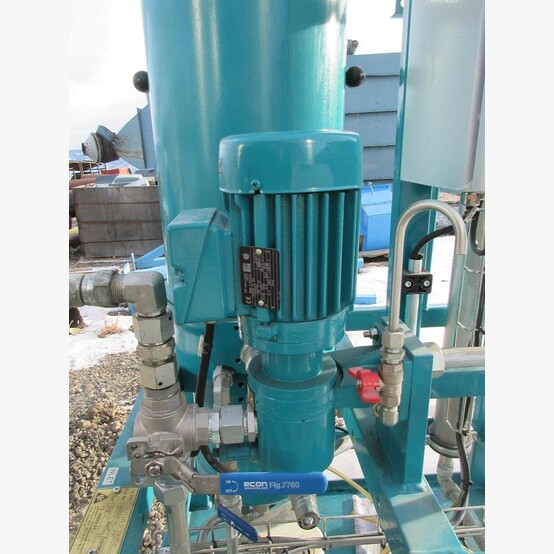

• Pump Type: P/MZ/GP
• Pump Inlet Pressure: 0.5 bar (7 PSI)
• Filter Inserts 27/27: 4 Pieces
• Separator Element: 1 Piece
• Power Consumption: 0.25-0.55kW
• Pressure Drop: 1.8 bar (26 PSI)
• Max Oil Temperature: 80°C (176°F)
• Dirt Holding Capacity: 16 Liters (4.2 Gallons)
• Dry Weight: 190kg (419 Lbs.)
• Operating Weight: 225kg (496 Lbs.)
• Design Pressure, Filter: 4 bar (58 PSI)
• Max Ambient Temperature: 40°C (104°F)
• Water Discharge: Manual

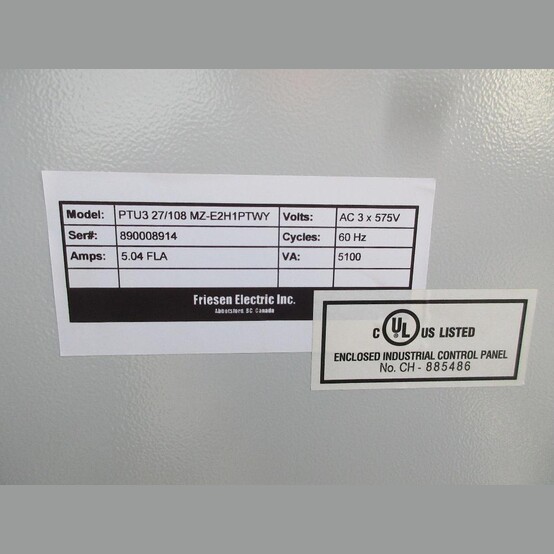

• Power Requirements:
  • Voltage: 575 Volts
  • Current: 5.04 Amps
  • Frequency: 60Hz
  • Phase: 3-Phase


• Overall Dimensions:
  • Length: 31in
  • Width: 25in
  • Height: 84in
  • Weight: 190kg (419 Lbs.)


• Location: Savona, British Columbia, Canada
