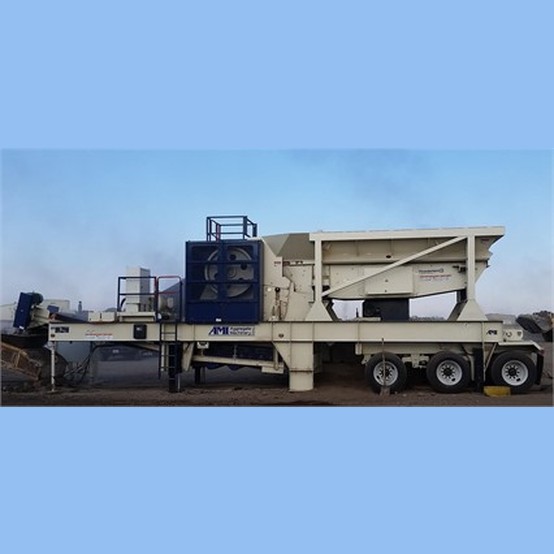

- Portable Jaw Plant with vibrating grizzly feeder on triple axle trailer.
- Jaw crusher fed by a vibrating grizzly feeder. Product conveyor takes the crusher discharge plus 0-100% of the grizzly bypass/reject material out the front of the unit. A grizzly reject chute can be accessed with a freestanding stockout conveyor to come out either side of the plant. The loader hopper can be fed from either side of the plant.
- Features:
- Portable carrier with lights, brakes & flaps.
- Straight beam trailer frame.
- Triple equalized suspension system (60 in. spacing).
- (12) wheels & tires (11:00R x 22.50 tubeless).
- (4) 18 in. hydraulic plant lifting legs, power unit and individual control valve package with 12V DC power unit.
- Center fold down support leg.
- Front twin aux. pogo legs to help support plant fifth wheel end with travel storage brackets.
- Ladder up to an open observation deck with removable handrails over crusher.
- Cedarapids 30 x 42 Jaw Crusher.
- Model: WJ3042.
- Fully bolted and dowelled 4 piece heavy duty structure.
- Front and rear frames are cast high strength steel.
- Side plates produced from high strength structural plate.
- Infinitely variable closed side setting adjustment through hydraulically actuated wedge.
- Fixed and moving jaws are retained with a wedge locking system, so no bolts to be tightened on the back of the fixed die, one set of wedge bolts on the moving die.
- Corrugated manganese dies are reversible top and bottom.
- Rocking end toggle design.
- Large diameter manufactured from forged steel with no threads or tapered bearing journals.
- 150 HP TEFC electric motor.
- V-drive system.
- Drive and flywheel guards w/service access doors.
- Open deck over crusher.
- Crusher service level deck.
- Ground access ladder (removable for transport).
- Thunderbird II 42 in. x 18 in. vibrating grizzly feeder.
- 6 ft. adjustable grizzly bar section.
- ½ in. AR pan liner.
- ¾ in. plate main side feed type loader hopper.
- 25 HP TEFC electric motor.
- Pivoted motor base.
- Guarded V-drive.
- Bypass chute for grizzly through to under crusher conveyor or out as a separate product.
- 48 in. x 29 ft. under crusher product conveyor.
- 20 HP TEFC electric motor.
- Minimum CEMA class B idlers.
- 14 in. wing type tail pulley.
- 16 in. crowned & lagged head pulley.
- Three ply 330# belting with 1/4 in. x 1/16 in. covers.
- Rubber disc return idlers.
- Spring loaded rubber blade belt scraper.
- Disc type impact idlers under crusher loading area.
- Hours: 176.
- Year: 2015.
