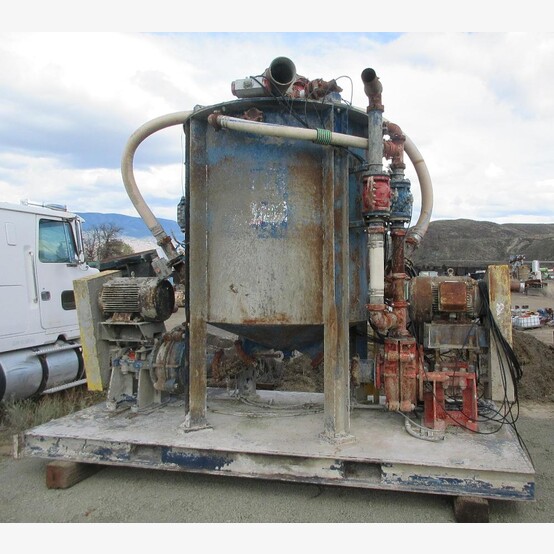

Amix 4000 Liter Colloidal Mixer Grout Plant

• Make: Amix Systems
• Model: ACM-4000L-8/4EH
• Type: Colloidal Mixer Grout Plant
• Condition: Used Condition

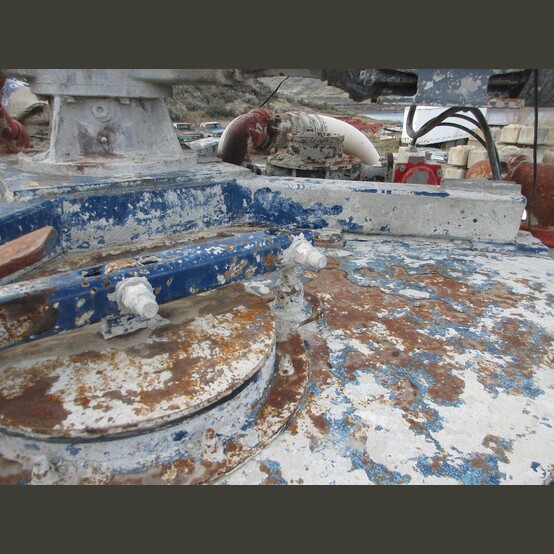

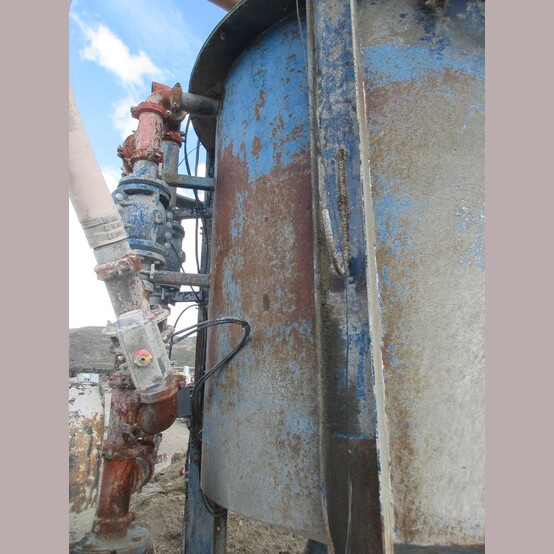

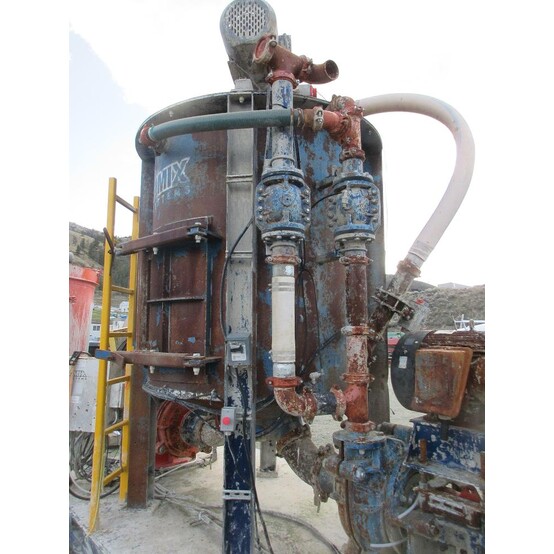

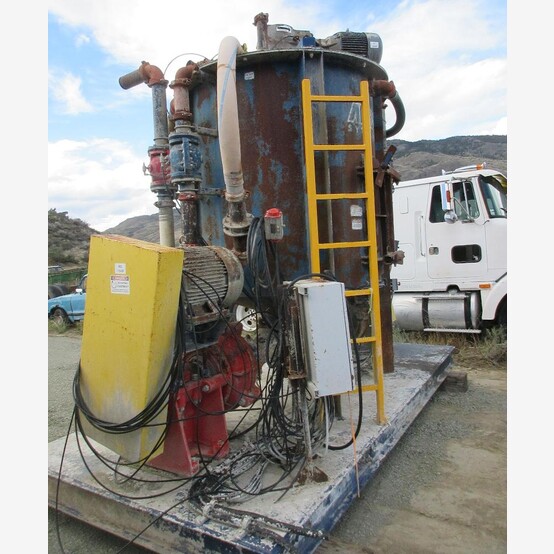

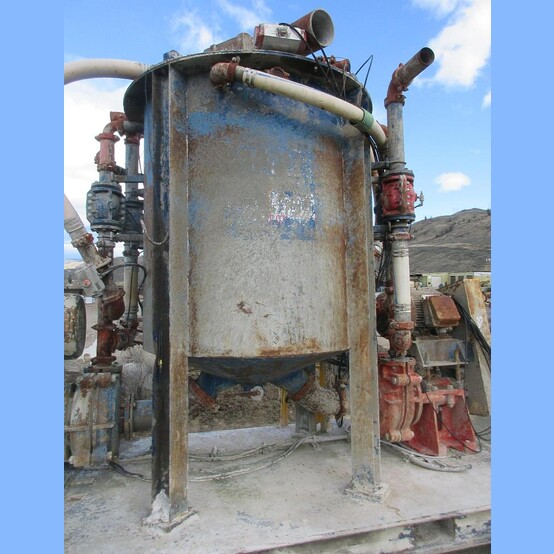

• 4,000 Liter Mixing Tank:
  • Tank Dimensions: 66in Dia. x 84in Tall
  • Rated Capacity: 4,000 Liters (1,056 US Gallons)
  • Agitator:
    • Rotation Speed: 83RPM
    • Shaft: 3in Dia. x 50in Long
    • Impellers: (2) 4-Blade Impellers

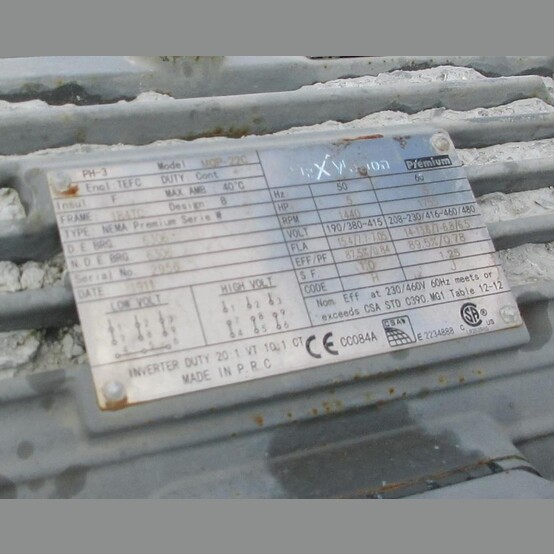

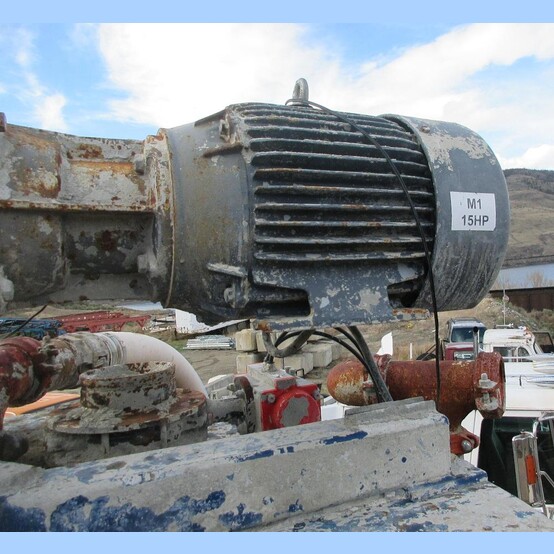

    • Drive: Electric Motor
      • Power Output: 15HP
      • Rotation Speed: 1,800RPM

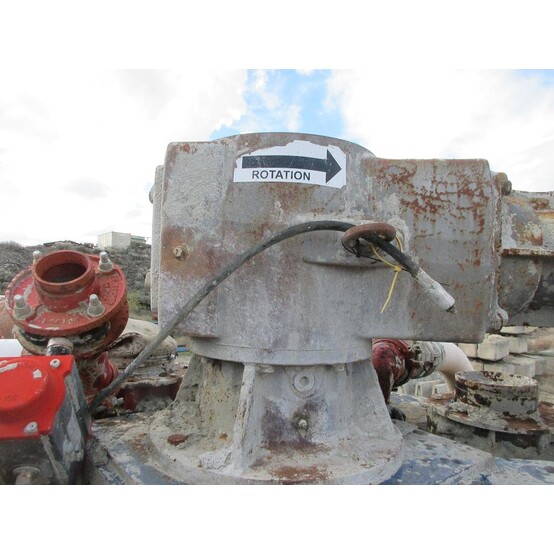

    • Speed Reducer:
      • Ratio: 21:1

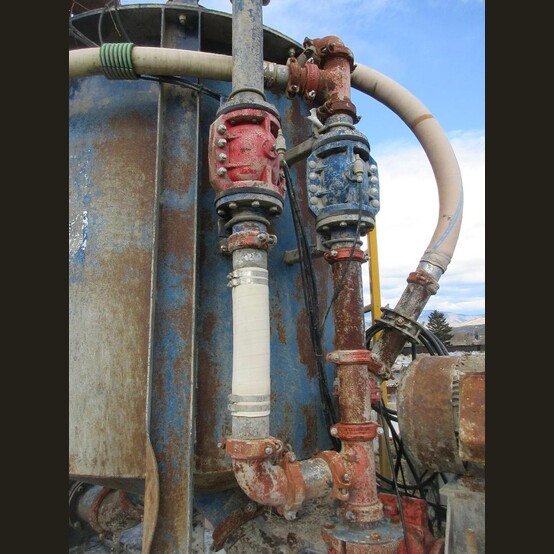

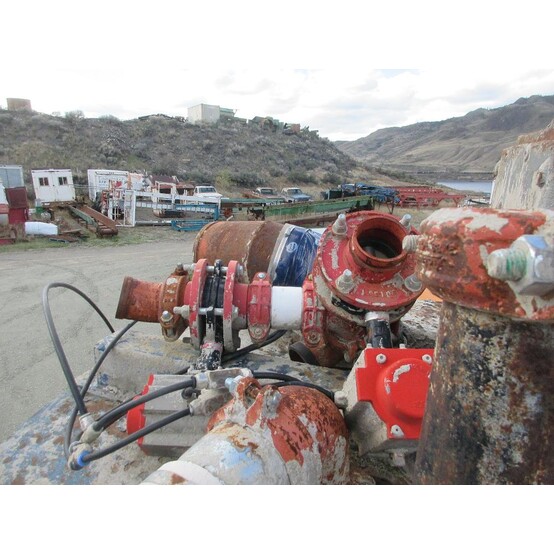

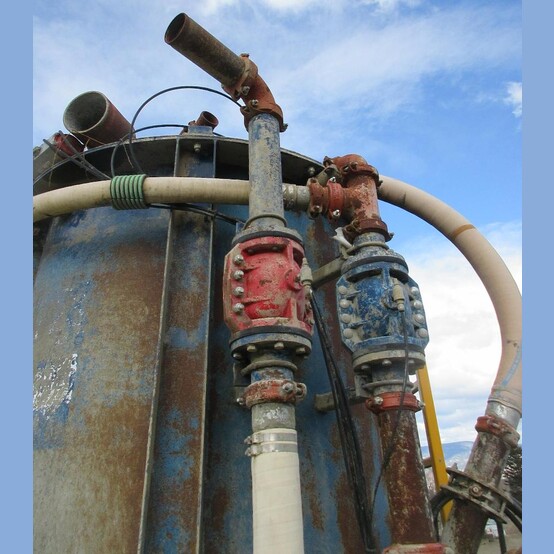

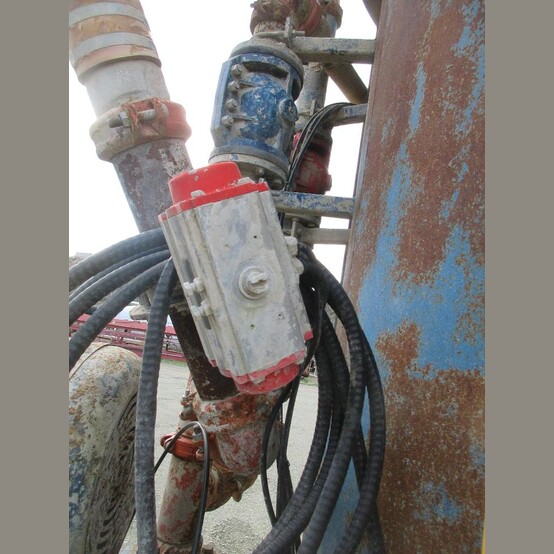

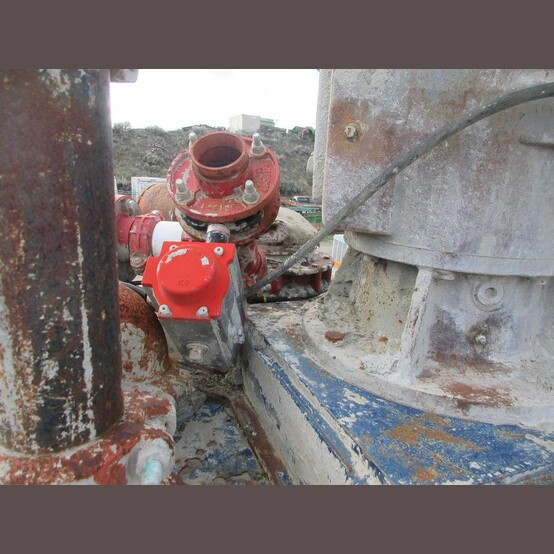

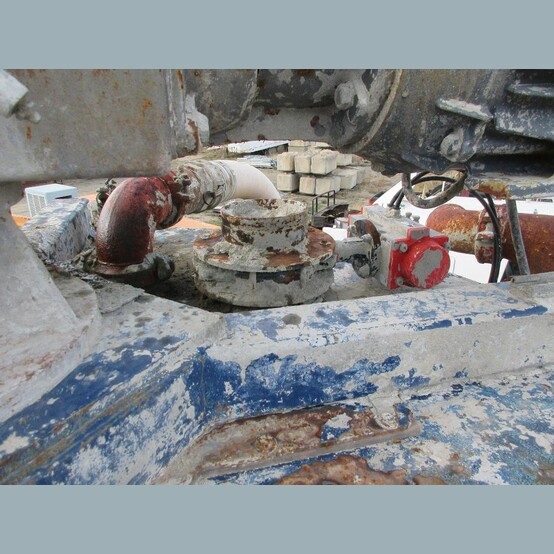

  • Valves: (4) 4in Pneumatic Pinch Valves
  • Bottom Drain: 6in Dia.
  • Tank Legs: 108in High, 6x6 Beams

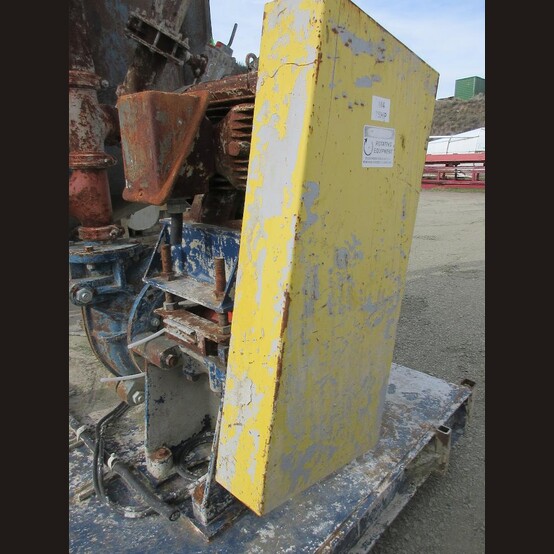

  • Mounted on Skid with Colloidal Mills
  • Unit Dimensions:
    • Length: 168in
    • Width: 84in
    • Height: 143in

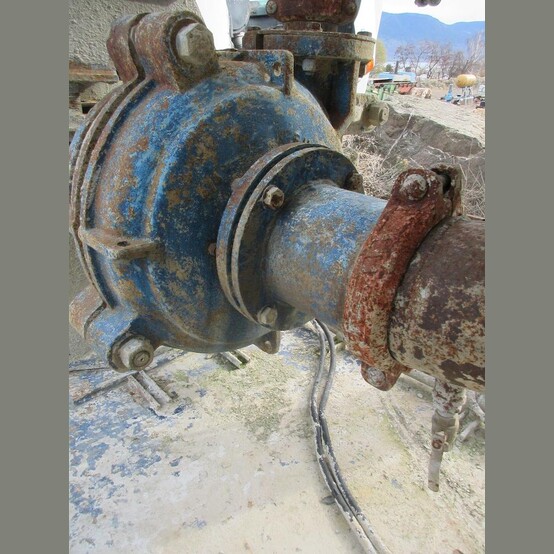

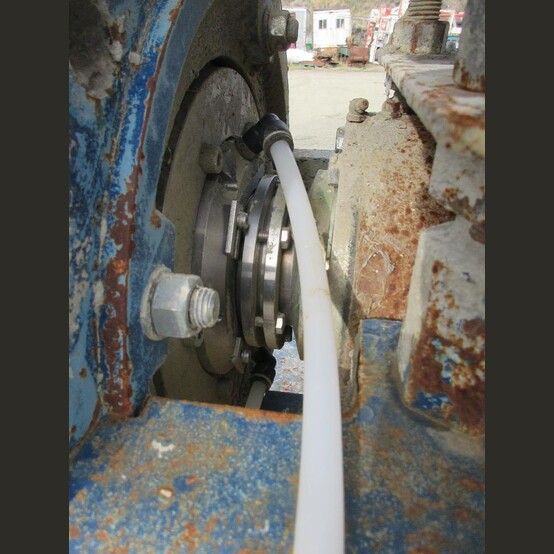

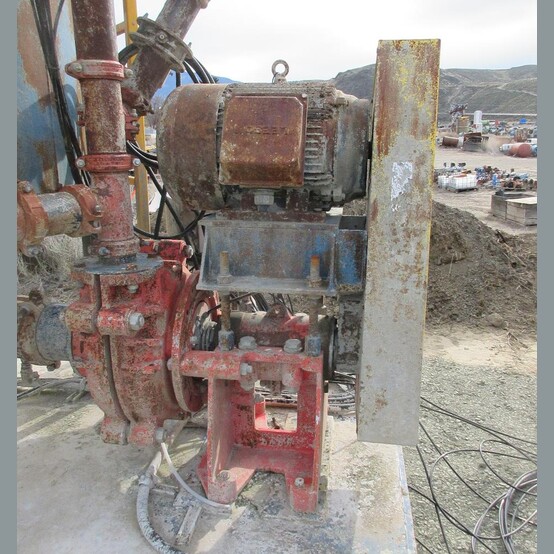

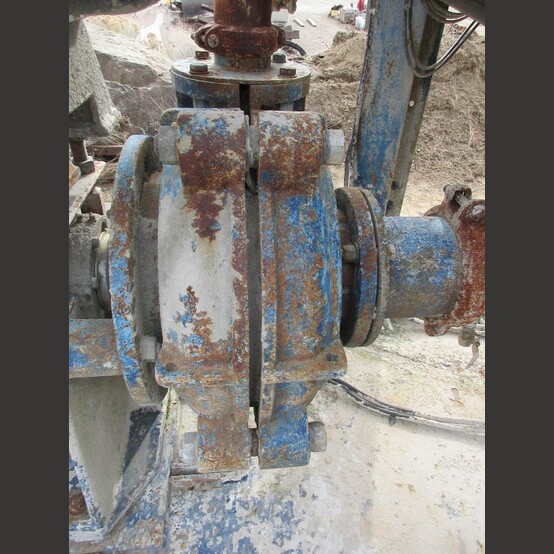

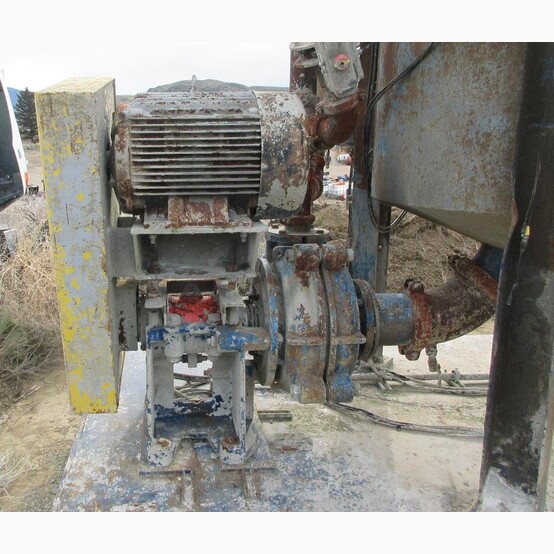

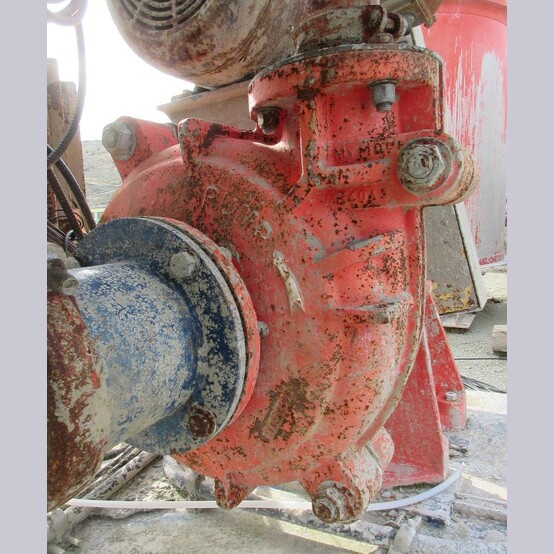

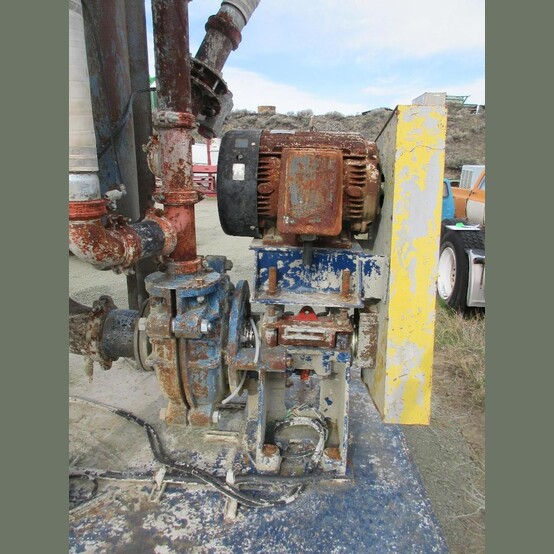

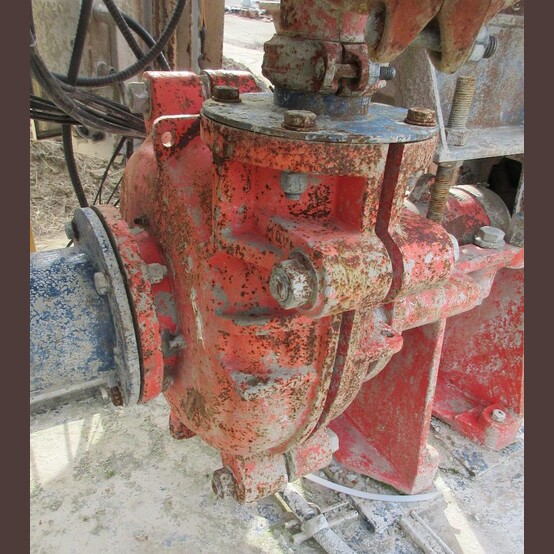

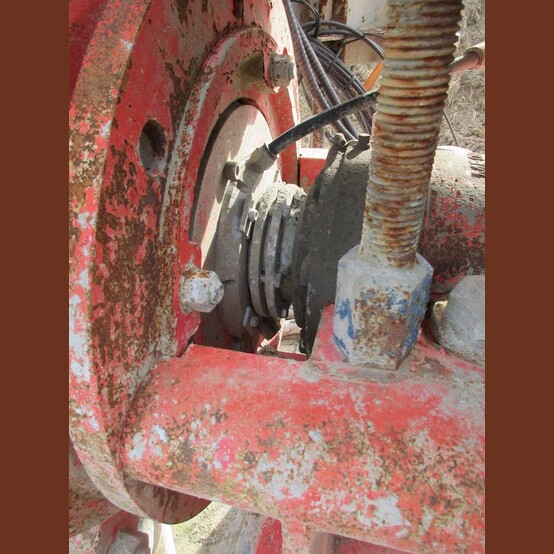

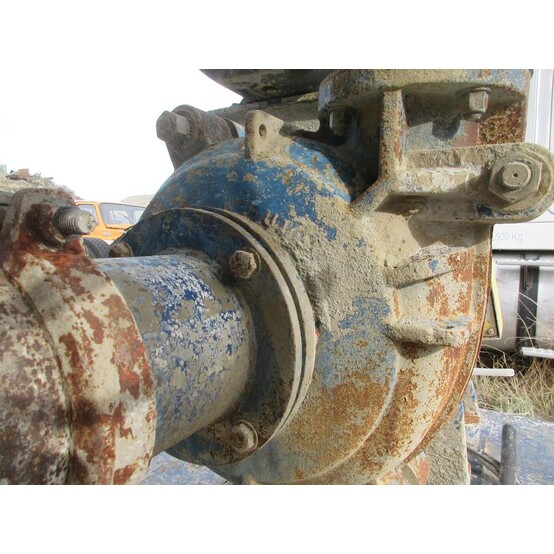

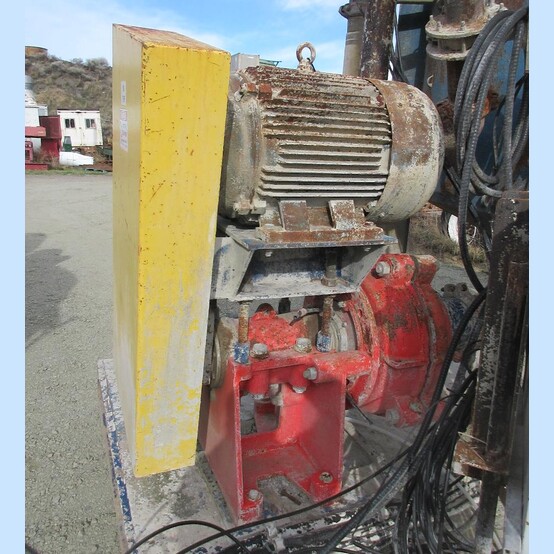

• (2) Colloidal Mills/Pumps:
  • Model: ACM-8/4E-MA
  • Type: High Shear Colloidial Mill
  • Inlet: 8in Dia.
  • Outlet: 4in Dia.

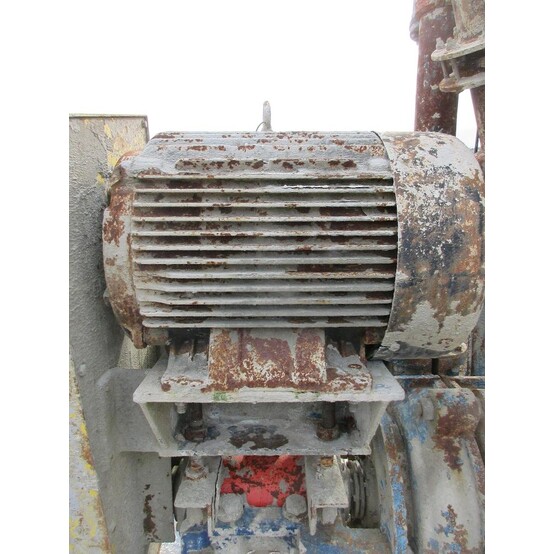

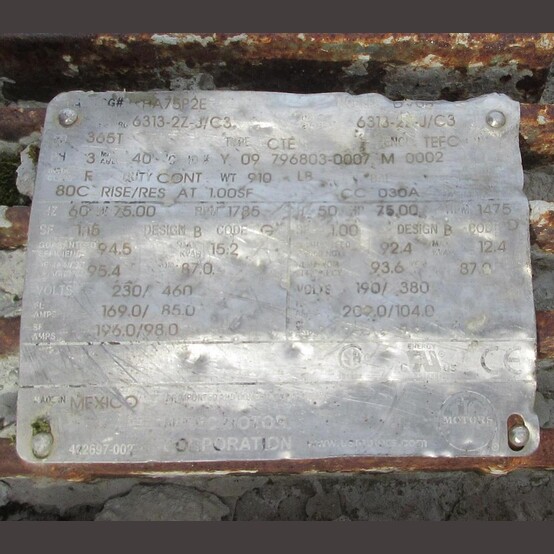

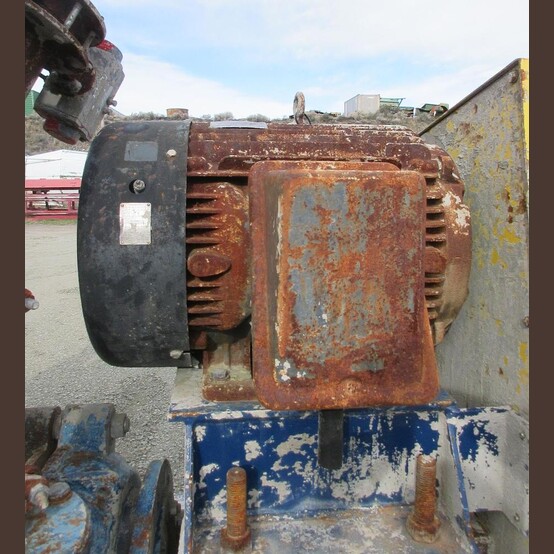

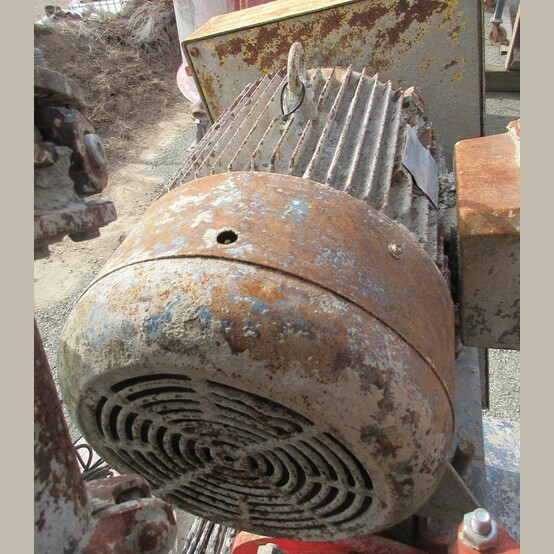

  • Drive: Electric Motor via V-Belt Drive

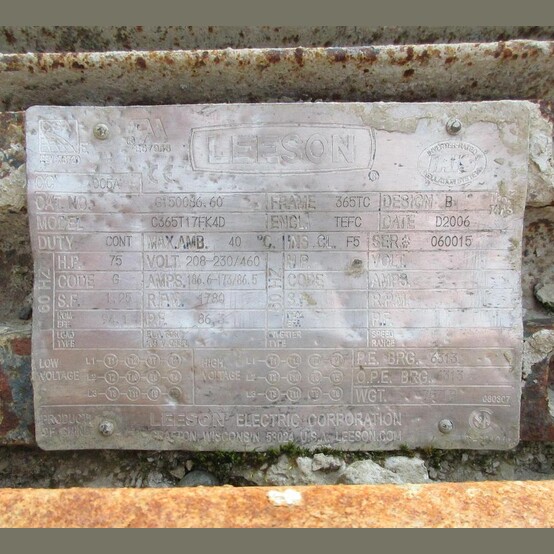

    • Power Output: 75HP
    • Rotation Speed: 1,800RPM
  • Mounted to Skid with 4,000 Liter Mixing Tank

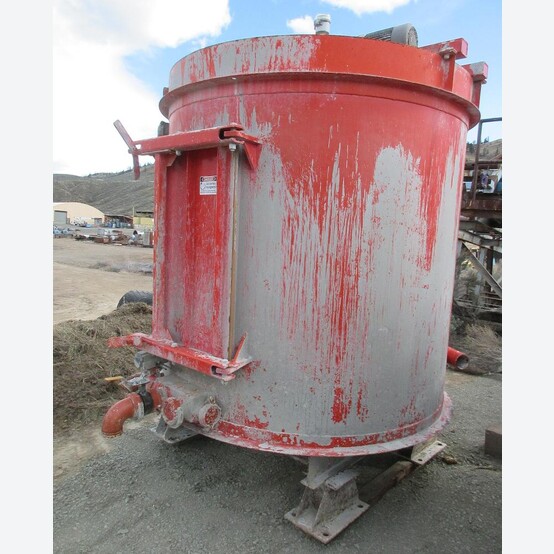

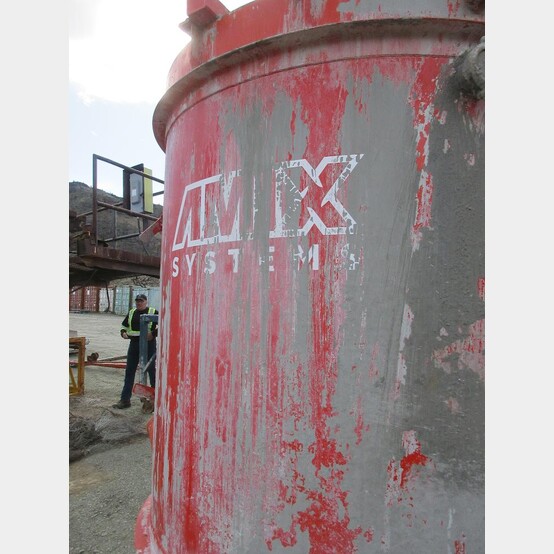

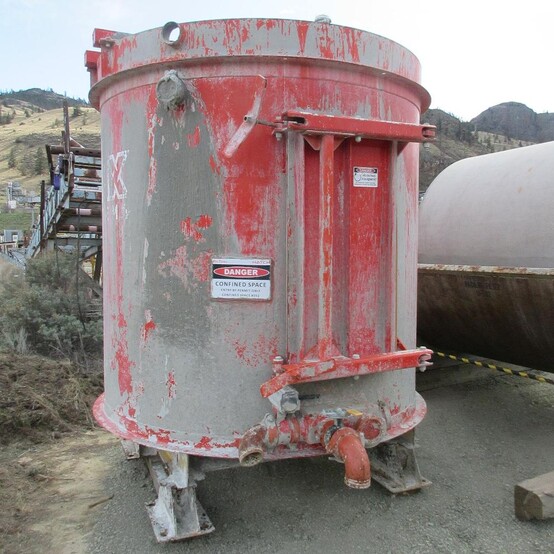

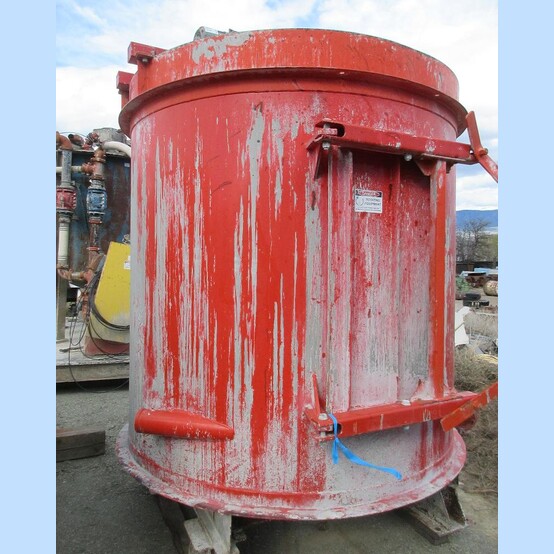

• 7,250 Liter Mixing Tank:
  • Tank Dimensions: 80in Dia. x 88in Tall
  • Approx. Capacity: 7,250 Liters

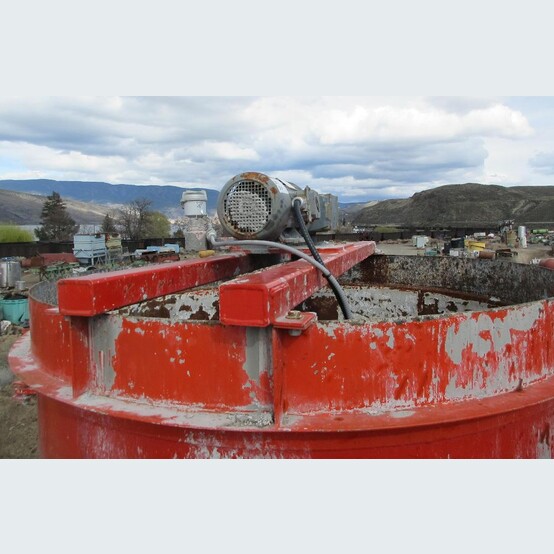

  • Agitator:
    • Shaft: 2.5in Dia. x 68in Long
    • Impellers: 4-Blade Impeller
      • Blade Size: 12in Long x 4in Wide

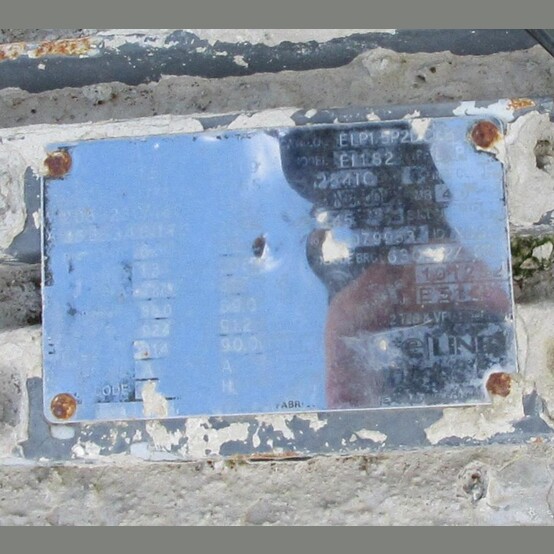

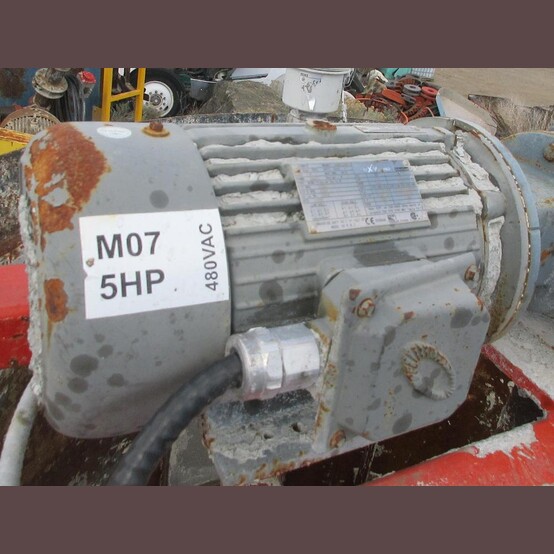

    • Drive: Electric Motor
      • Power Output: 5HP
      • Rotation Speed: 1,800RPM

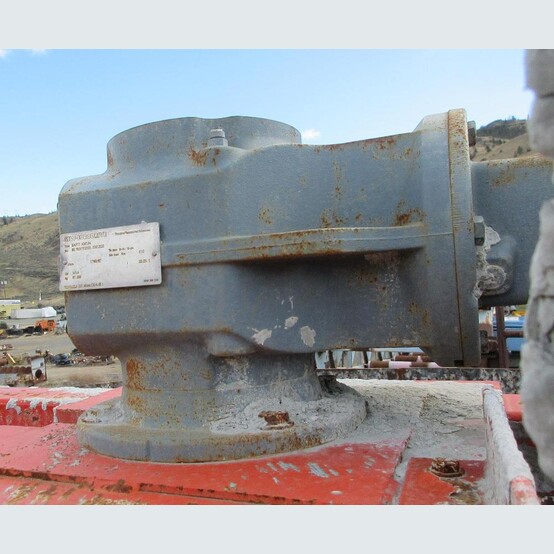

    • Speed Reducer: Sew Eurodrive KAF77 AM184
      • Ratio: 20.25:1
  • Clean-Out Doors: 25in Wide x 50in Tall

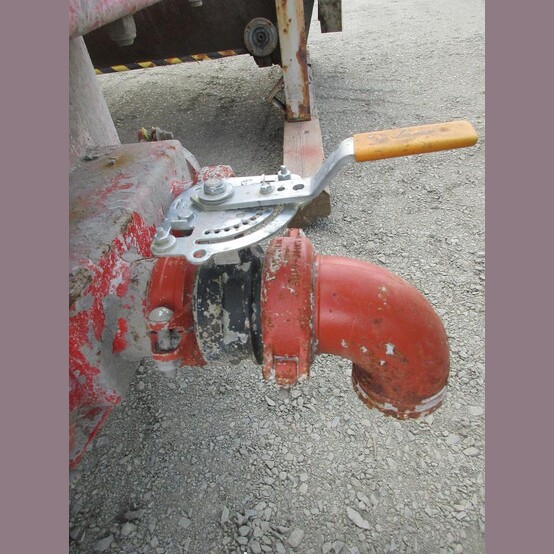

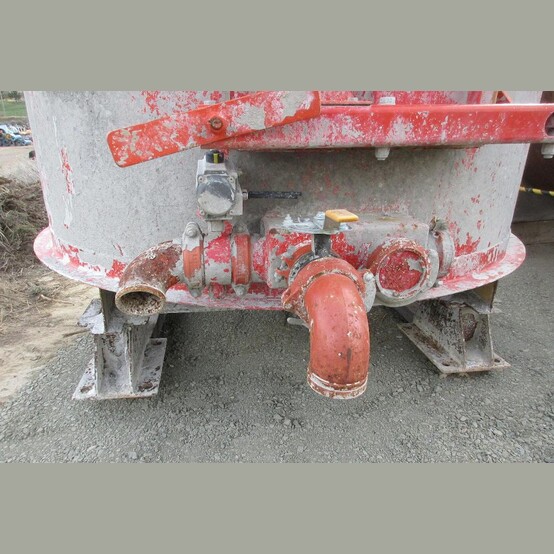

  • (4) Discharge Chutes: with 4in Victaulic Grooves
  • Mounted on Legs
  • Unit Dimensions:
    • Width: 118in
    • Height: 124in


• Location: Savona, British Columbia, Canada
