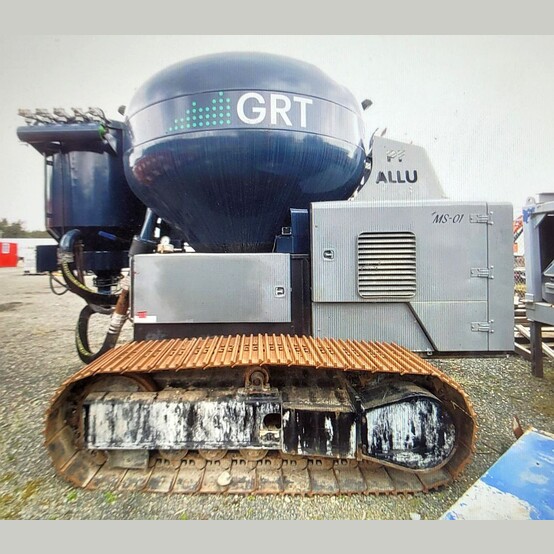

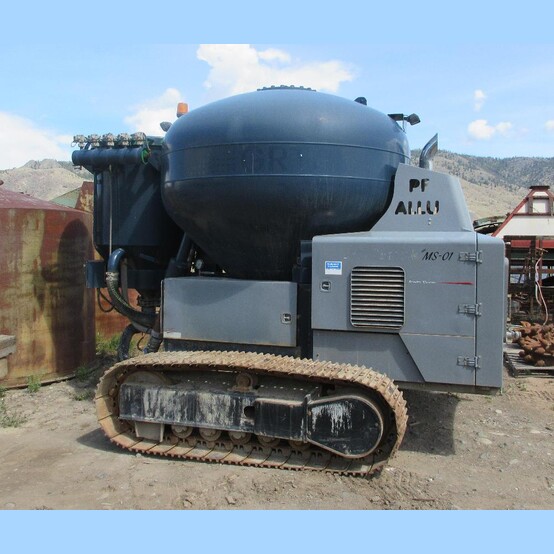

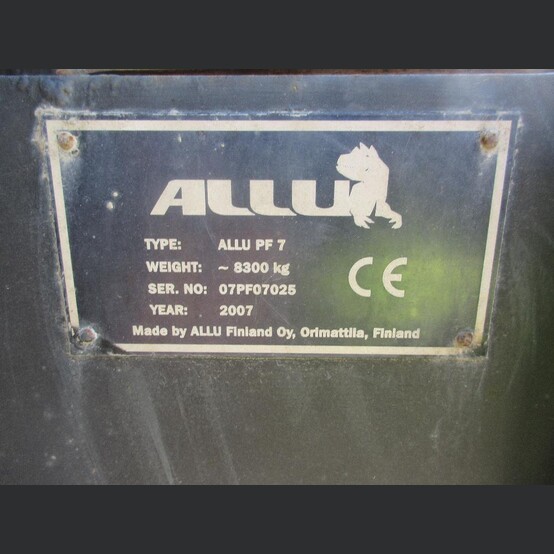

Allu PF7 Soil Stabilization Package

• Make: Allu
• Model: PF7 Stabilization Pod
• Year: 2014

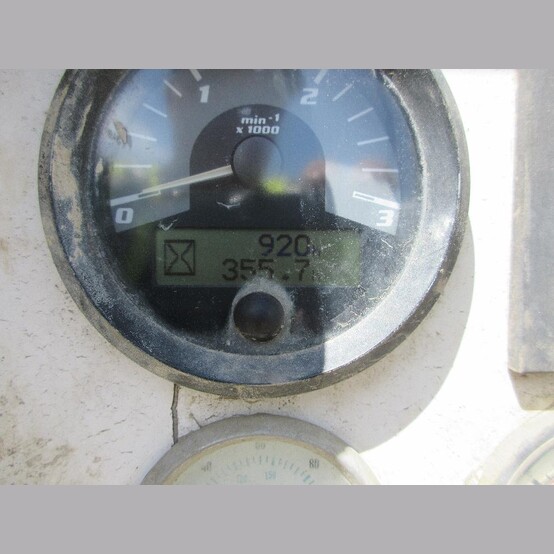

• Hours: 2,600
• Condition: Used

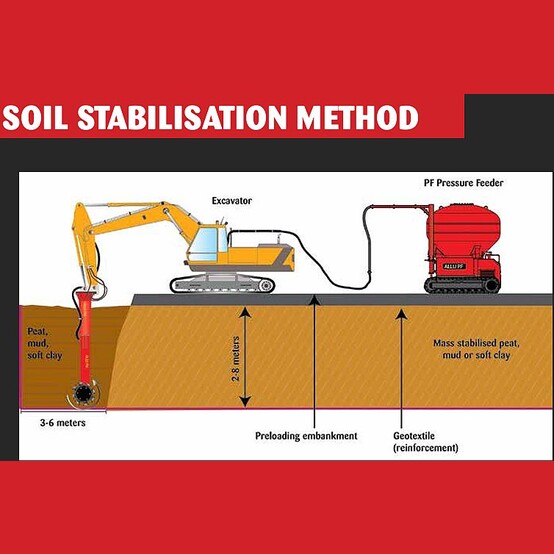

• Description: The ALLU PF Pressure Feeder, Using Compressed Air, Injects the Binding Agent Beneath the Ground Through a Feeding Pipe, Directly to the Middle of the Mixing Drums on the PMX. The Unit is Mounted on a Tracked Chassis and is Remotely Controlled Allowing the Unit to Follow Behind the Lead Excavator onto the Site.


• Main Equipment List:
  • Allu PF7 Stabilization Pod
  • Allu PF7 GPS System
  • 2016 DSS Concrete Blower
  • 2017 Total Station Equipment Mounted

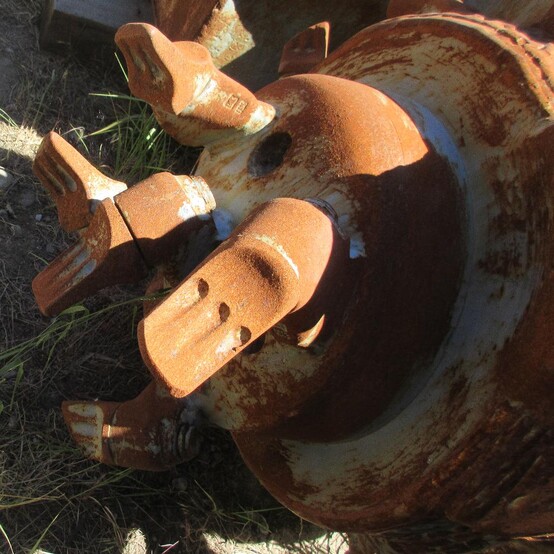

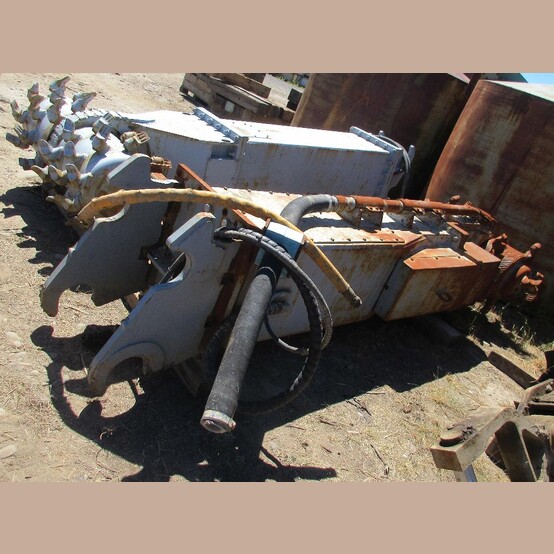

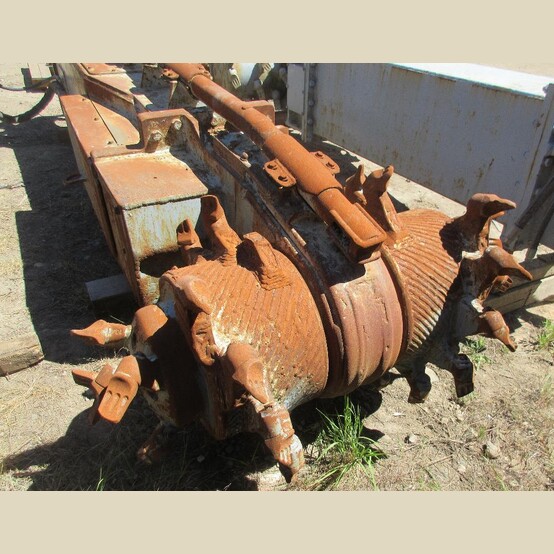

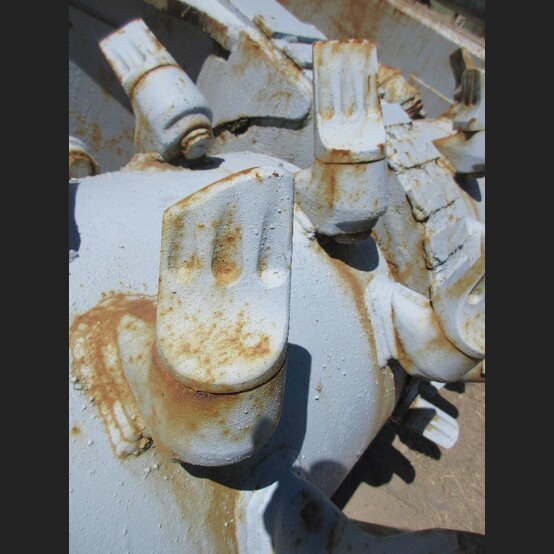

  • 2016 Alpine Rotary Mixer/Grinder Head Attachment
    • Rotary Mixer E2 TM Unit 301095RP

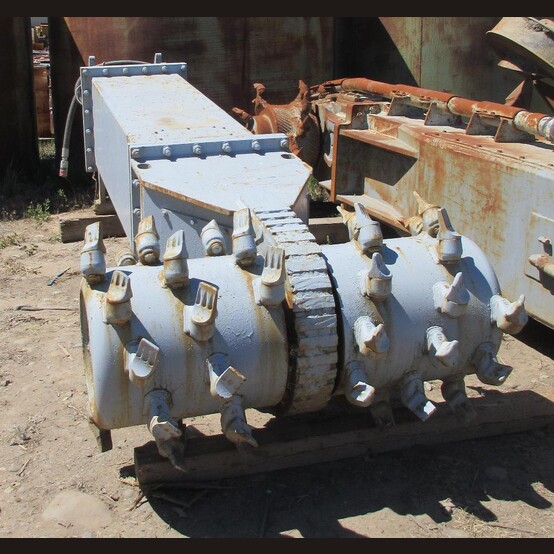

  • 2017 Shear Force Rotary Mixing/Grinder Head Attachment

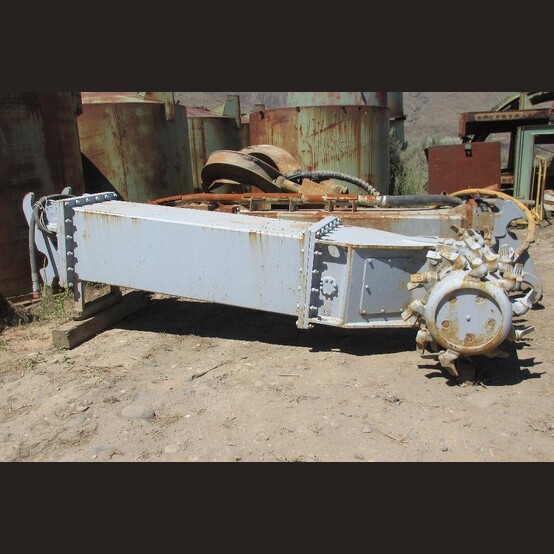

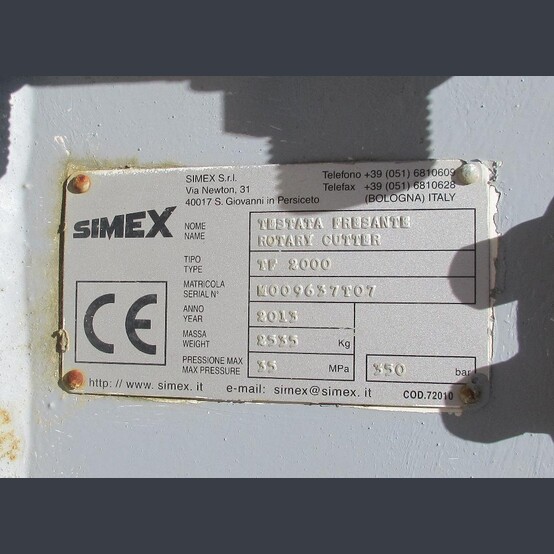

    • Simex TF2000 Rotary Mixer


• Specifications:
  •  Engine:
    • 99HP (74.5 kW) 4-Cylinder Diesel Motor

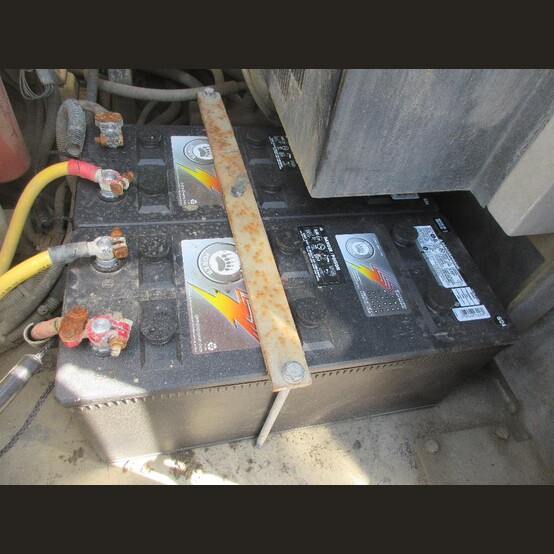

    • (2) Grizzly 904D Batteries (New)
  • Compressor:
    • Working Pressure: Max 116 PSI
    • Capacity: 229.54 ft³/Min

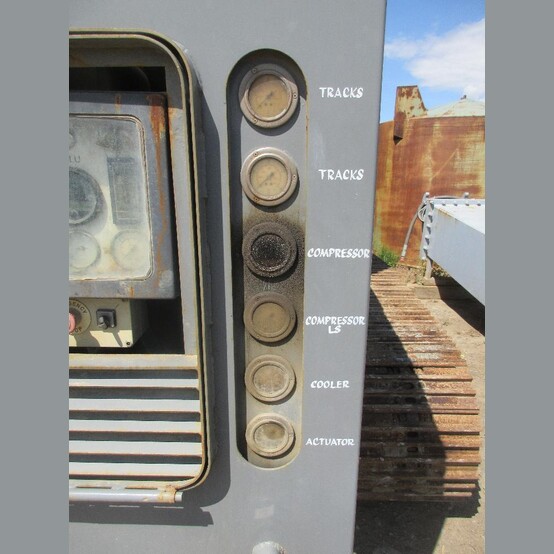

    • With Compressor Pressure Gauges

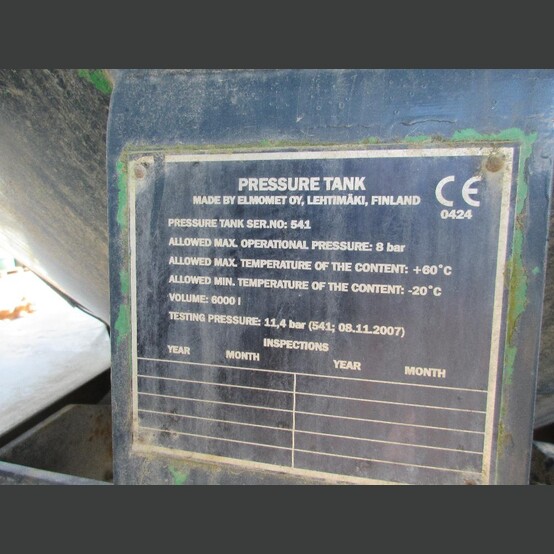

  • Tank:
    • Maximum Working Pressure: 116 PSI
    • Volume: Approx. 247.20 ft³, brut

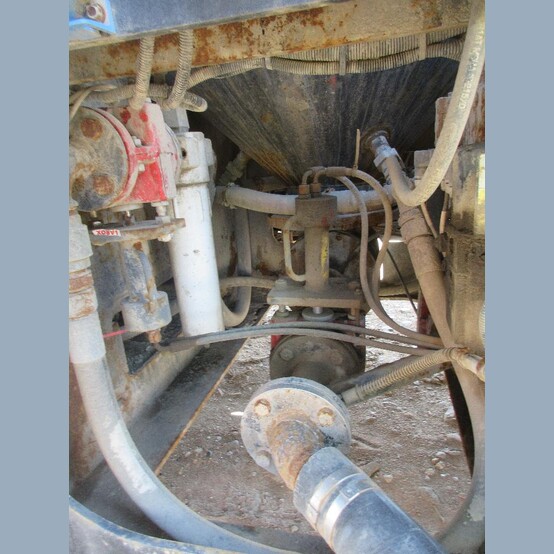

  • Feeder:
    • Feeding Capacity, Adjustable 11 Lbs./Sec
  • Weight (Empty):
    • PF 7: 17,417 Lbs.

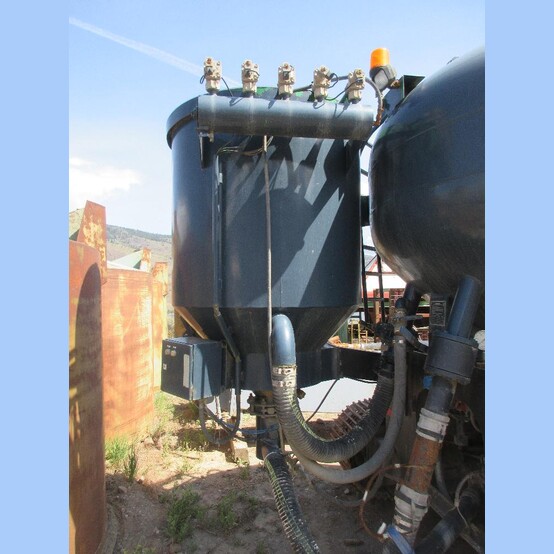

  • Bag Filter for Decrease Dust Filling Procedure

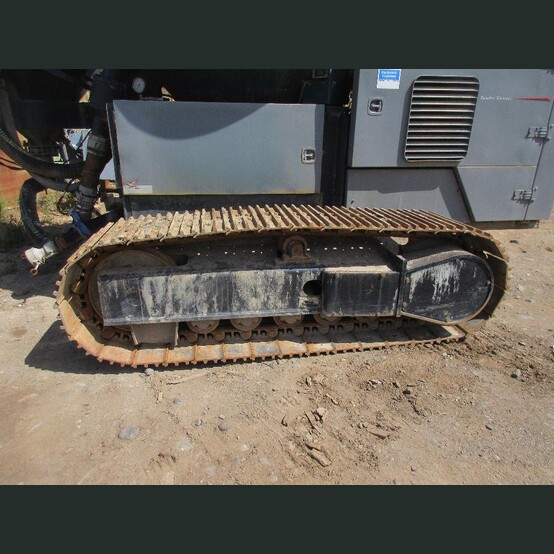

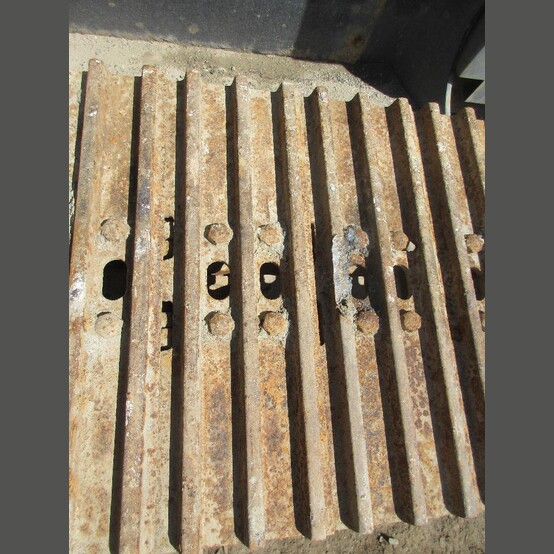

  • Mounted on Tracks
    • Track Width: 19.75in
    • Track Pad: 19.75in x 7.25in
    • With Track Pressure Gauges


• Overall Dimensions:
  • Length: 15ft
  • Width: 10.5ft
  • Height: 10.5ft
  • Weight: 8,300 kg


• Location: Savona, British Columbia, Canada
