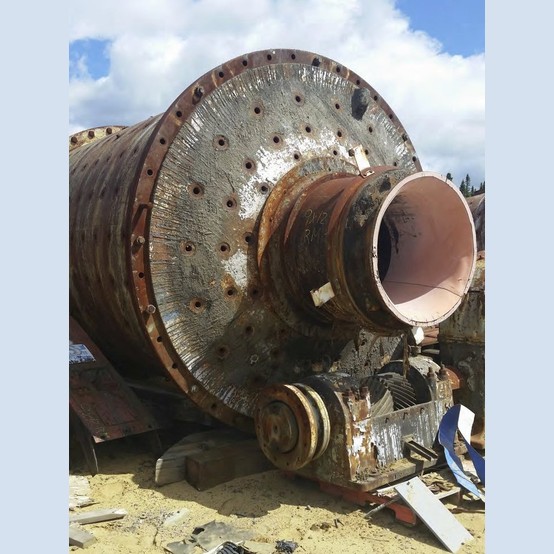

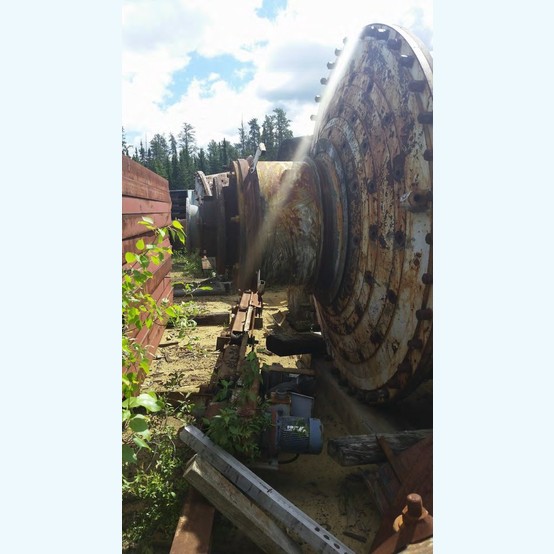

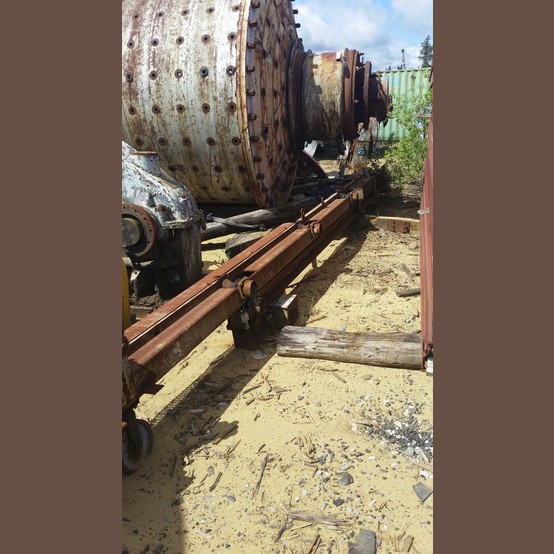

• 9 ft. diameter.
  • 12 ft. long.

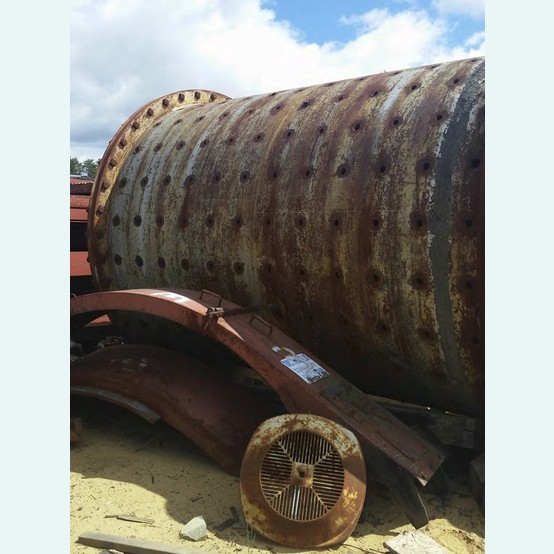

  • 1 piece shell.
  • Cast steel feed and discharge heads.

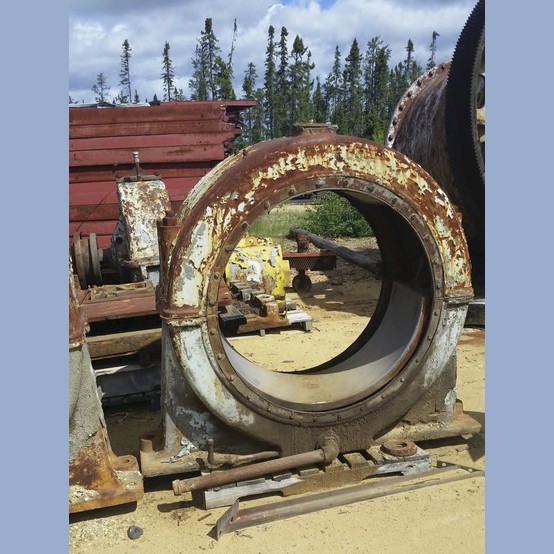

  • Main bearings with Babbitt inserts.

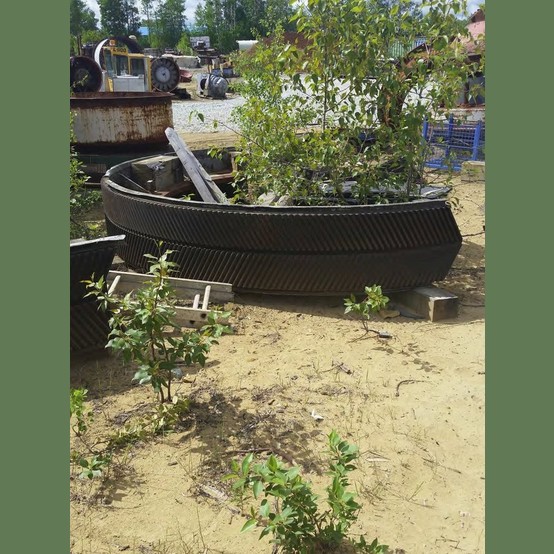

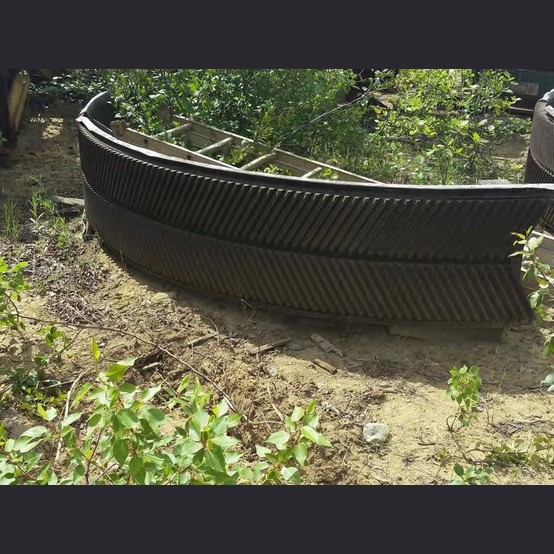

  • 1 piece Herringbone ring gear.
    • 302 teeth.
    • 20 in. face.

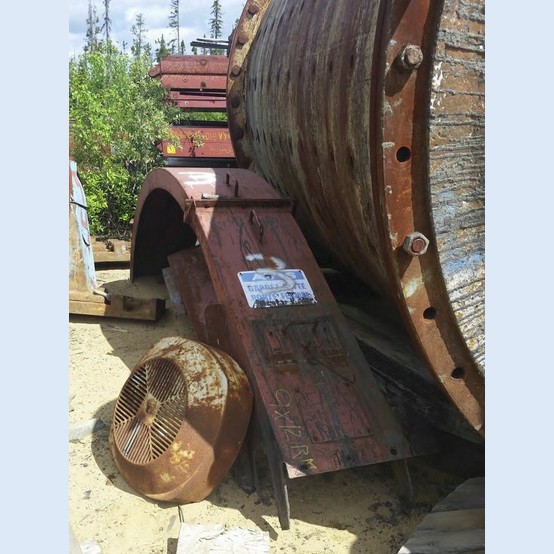

  • Gear guard.

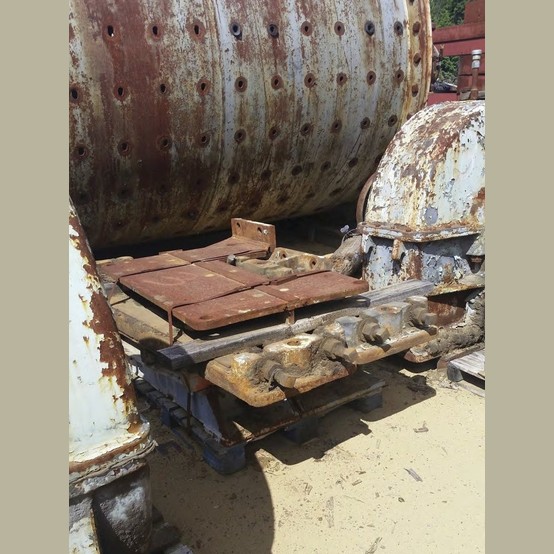

  • Sole plates.
  • Westinghouse 400 HP Induction motor.
    • Volts: 515.
    • RPM: 108.
    • Amps: 432.
    • Ph: 3.

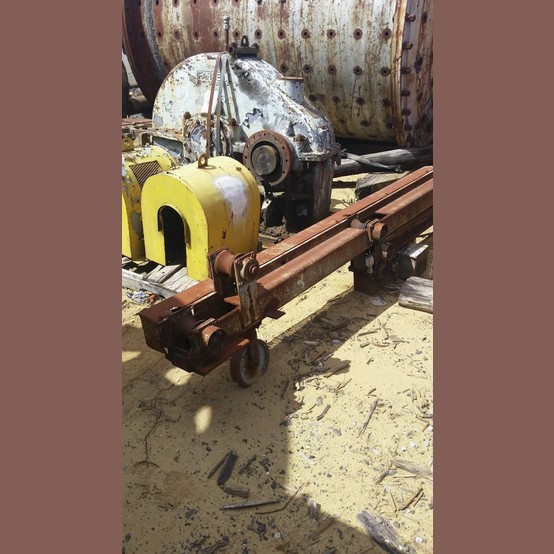

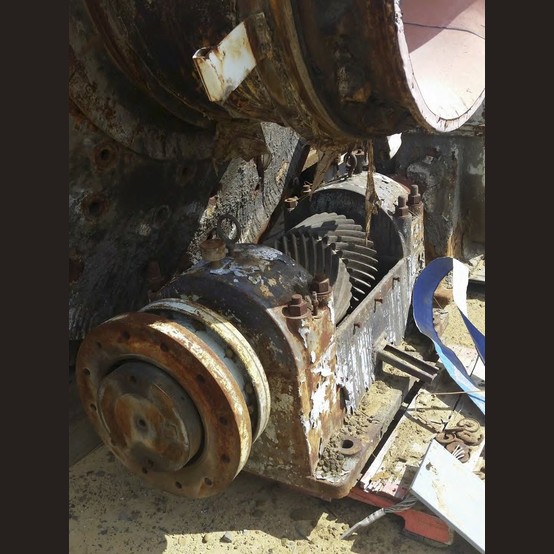

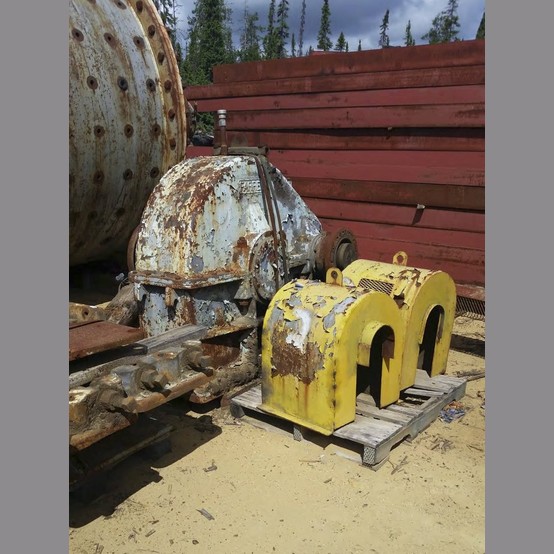

  • Motor driven through Gear Reducer.
    • Ratio: 4.571:1.
    • Model: SR-2614.

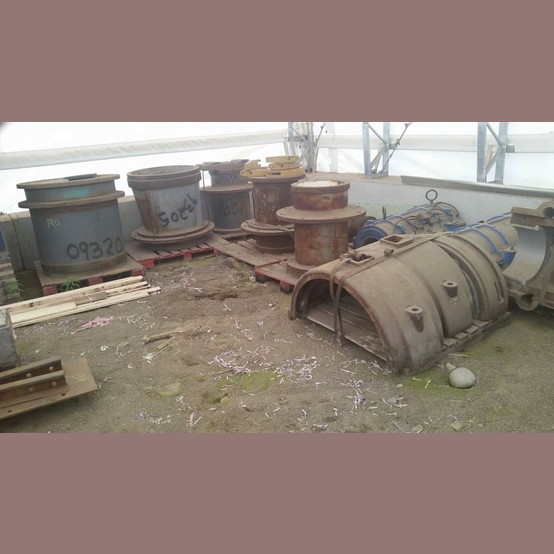

  • Included Spares.

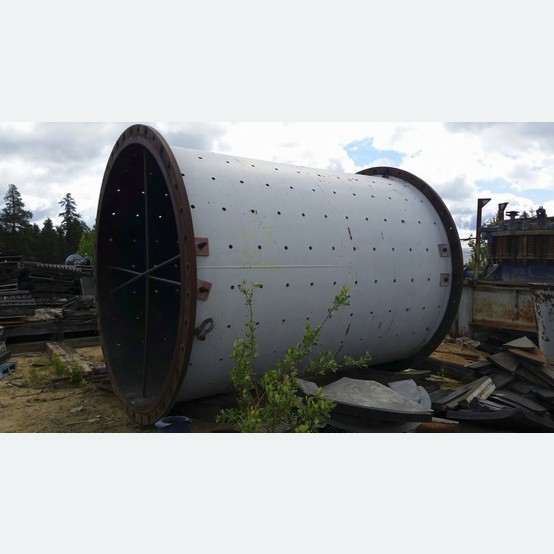

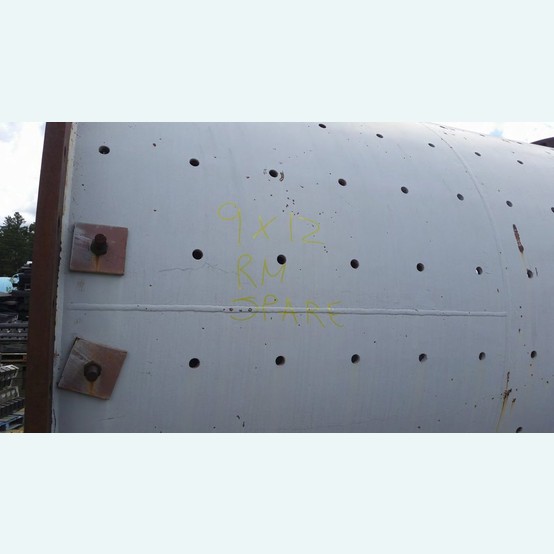

    • New shell.

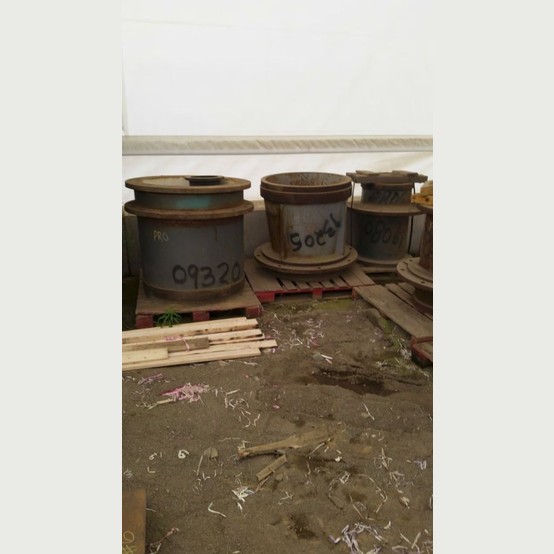

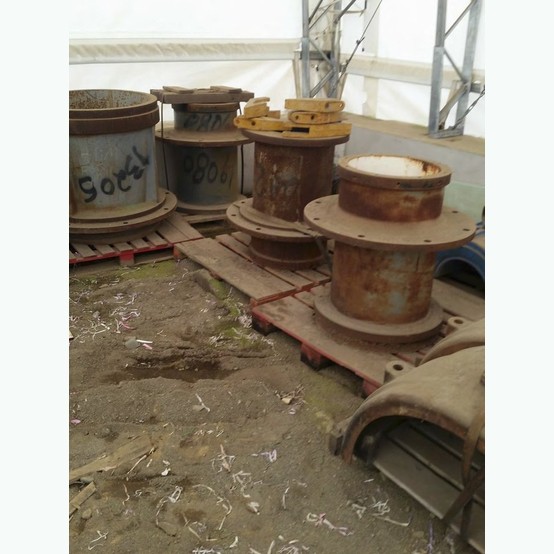

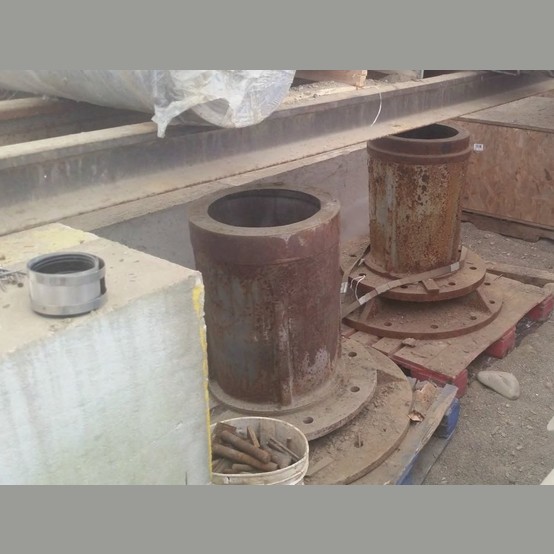

    • Feed and discharge end trunnion liners.
    • 1 Babbitt bearing insert.
    • 1 pinion.

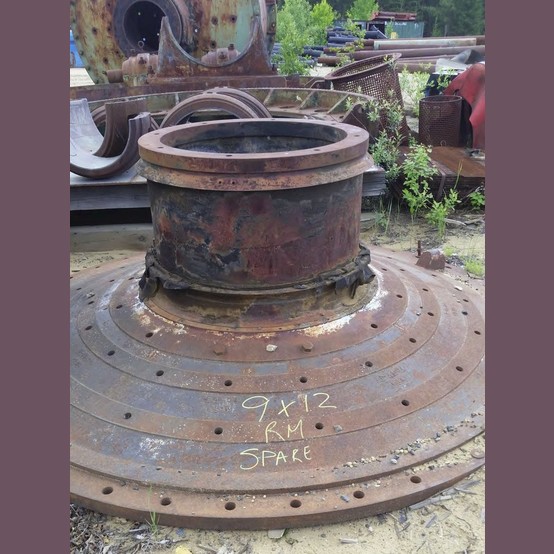

    • 1 used spare head.
    • 1 used spare motor.

View more Rod Mills
