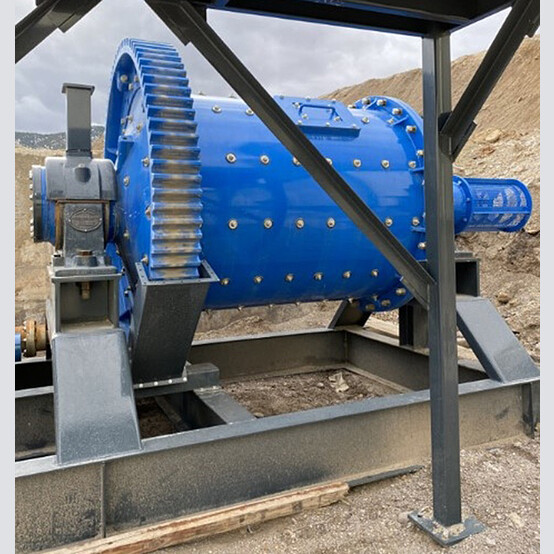

Allis Chalmers 5ft Dia. x 7ft Long Ball Mill

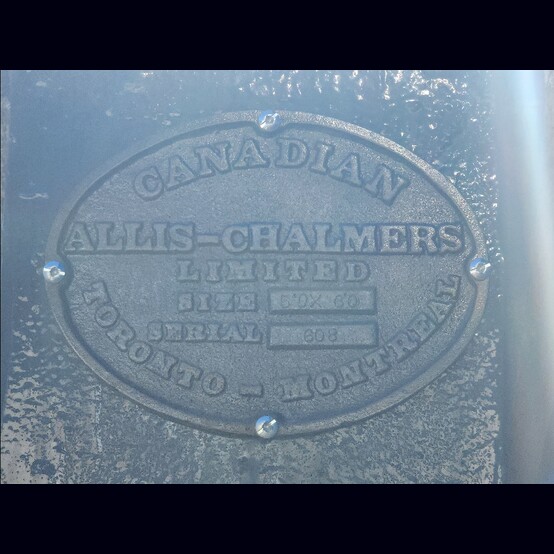

• Make: Allis Chalmers
• Size: 5ft Diameter x 7ft Long
• Type: Ball Mill
• Condition: Used, Complete Mill Rebuild 2022
  • Rebuilt, Unused, and Ready to Ship
  • Mill Feed and Discharge Heads, Bull Gear and Pinion Gear Inspected, and NDT Tested
• Discharge: Configured for Overflow Discharge - Discharge Trommel
• Grinding: Configured for Wet Grinding or Dry Grinding
• Liners: Rubber Liners
• Lifter: Modest Lifters
• New Steel Shell

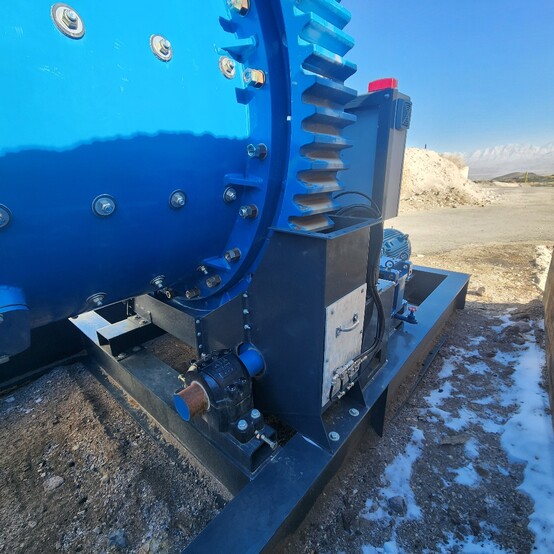

• New Trunnion Bearings, Pedestals and Caps
  •  with Integral Oil Sump and Oil Return
• New Automated Grease Block Trunnion Lubrication
• New Automated Gear Spray Lubrication System
• New Mill Hardware Package
• Pinion is Directly Driven, 17-Tooth Head

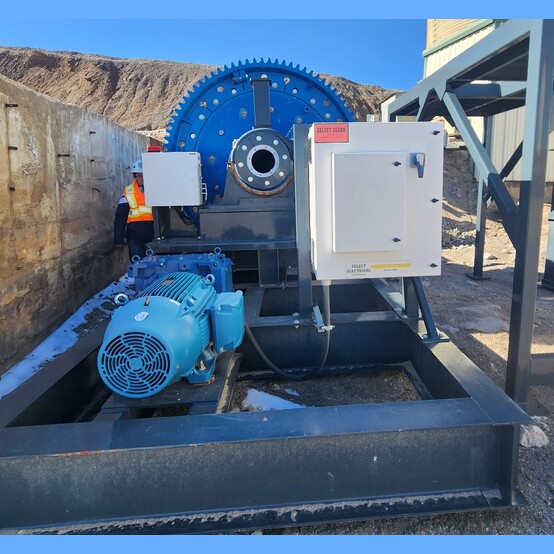

• Drive: New 100HP WEG Motor, WEG VFD and Sumitomo Gearbox

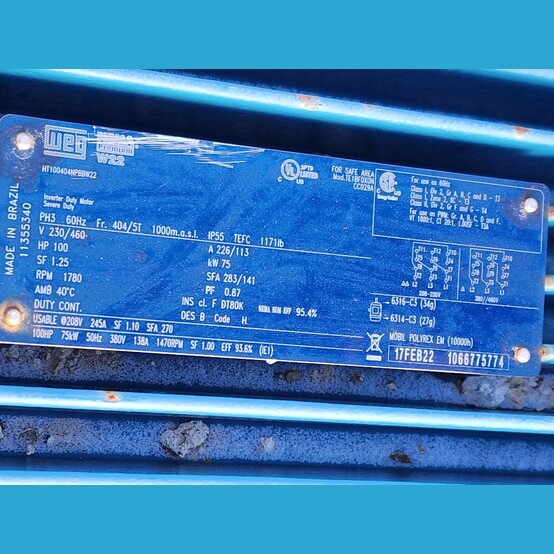

  • 100HP WEG Motor
    • Model: HT100404NPBBW22
    • Voltage: 230V/460V
    • Current: 226/113 Amps
    • Rotating Speed: 1780 RPM

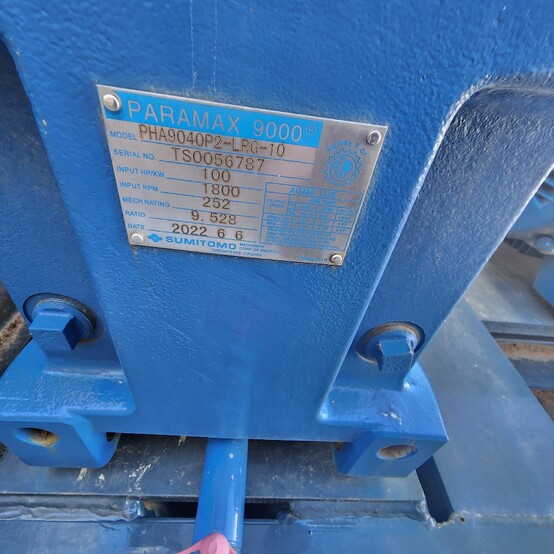

  • Sumitomo Paramax 9000 Gearbox
    • Model: PHA9040P2-LRG-10
    • Ratio: 9.528
  • Motor and Gear Guards
• Mounted on Steel Operating Skid
• Feed Platform with Funnel and Spout Feeder Available at Additional Cost


• Location: Western USA
