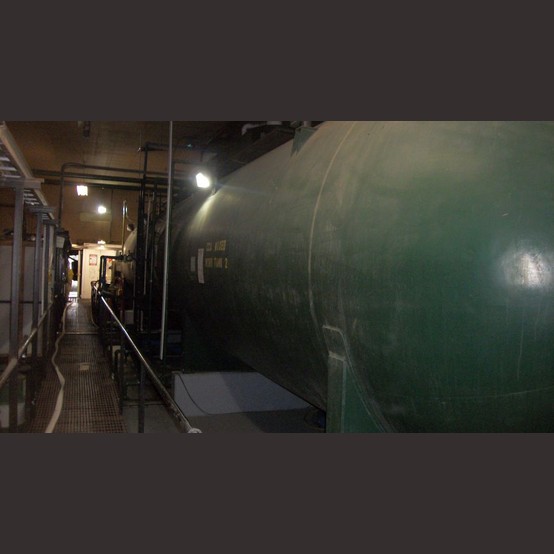

6 ft. x 80 ft. Pressure Treating plant ID: 197666


  • Steel Tanks:
    • Combo work/water tank 55' x 11' consisting of two 18,660 gallon (Imp.) work tanks and one 7,680 gallon (Imp.) water tank.
    • Concentrate tank 6,800 gallon(Imp) 10' diameter x 14 14' high.
    • Vent tank 4,372 gallon (Imp) 7'6" diameter x 16' high.
  • Autoclave:¬†
    • 6' x 80 locking ring cylinder with electrical hydraulic closer with carts and hydraulic bridge.
  • Pumps:
    • Vacuum pump 25 HP.
    • Pressure pump 10 HP.
      Transfer pump 7.5 HP.
    • Recovery pumps 2 HP on cylinder fill line.
    • Door sump pump 3 HP.
    • One seal water pump.
    • Concentrate pump.
    • Vent tank water pump 2 HP.
    • All pumps are 575 Volt.
    • Phase 3.
  • New Inline filter system (on site but to be installed by purchaser).
  • Motor Starters: MCC.
  • PLC: Older PLC Unit includes a new chart recorder.
  • All tanks and pumps equipped with level transmitters.
  • Over flow protection.
  • Penberthy valves on site lines to include all auto valves.
  • Chemical delivery system.
  • Piping:
    • 2 inch approx. 350 lineal feet.
    • 4 inch approx. 300 lineal feet.
    • 6 inch approx. 80 lineal feet.
