- 44 in. x 10 ft. Rotary Screen.
- Mfg. By VL/Rampe.
- Rotary Drum:

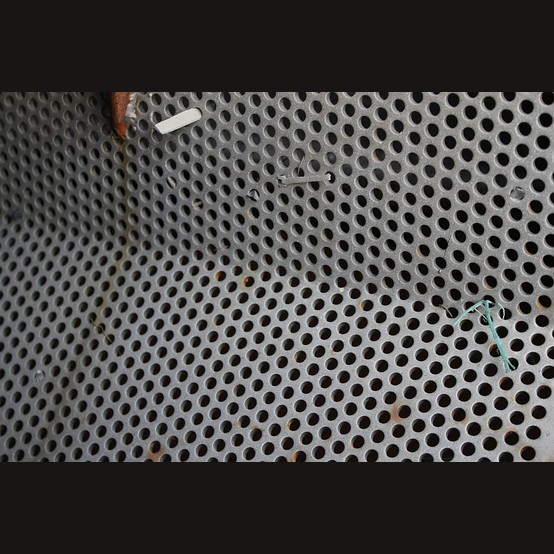

- ¼ in. thick stainless steel punch plate.
- 1/4 in. openings

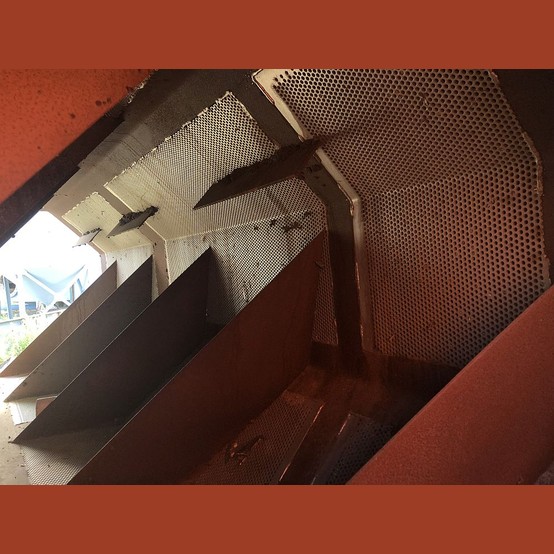

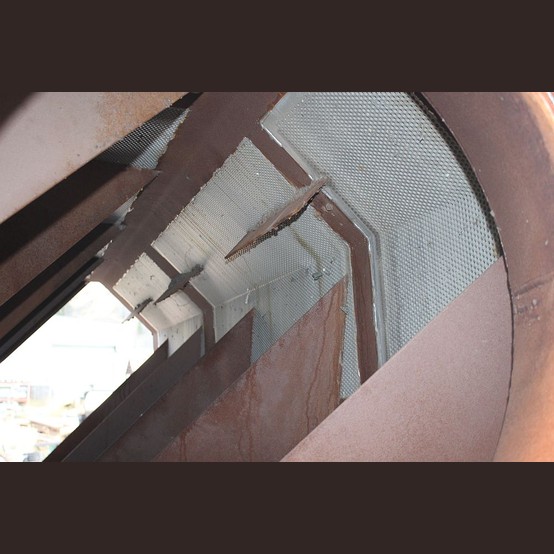

- 5 sets of 2 - 14 inch deep angled flow control flights.
- 2 rows of 3 inch lifters.
- ¼ in. thick stainless steel punch plate.
- 34 in. wide opening at feed end of drum for fines discharge conveyor.
- With angle iron support frame to slide conveyor on to.
- Rotary Drum:

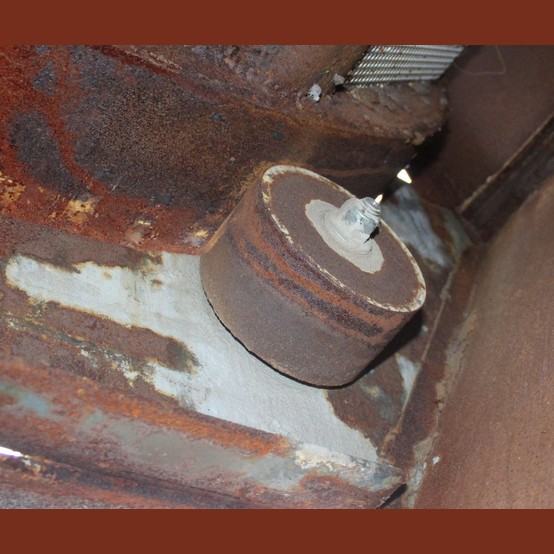

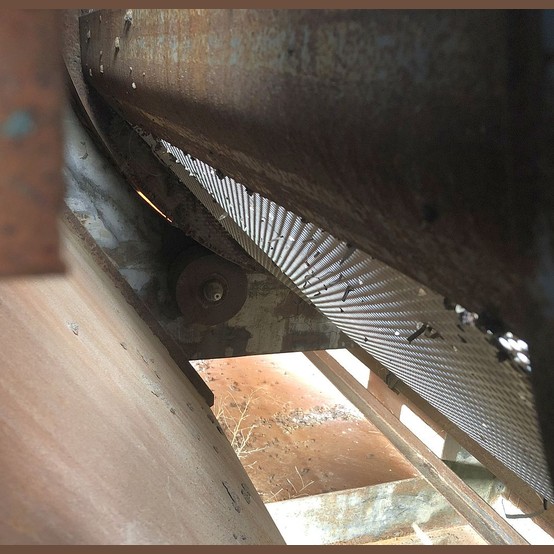

- Drum supported by heavy duty steel wheels.

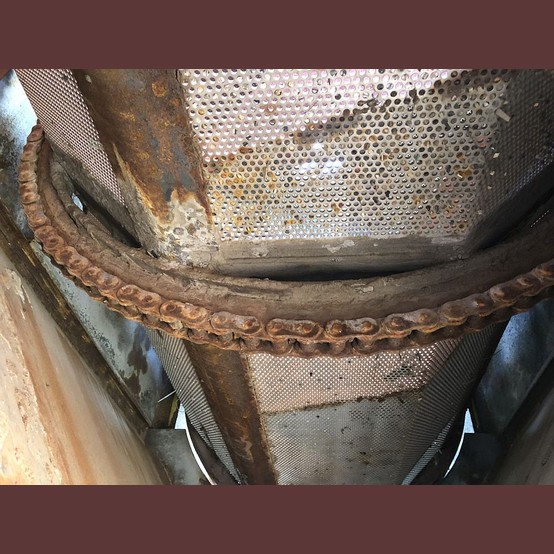

- #120 drive chain on perimeter of drum (no drive motor).

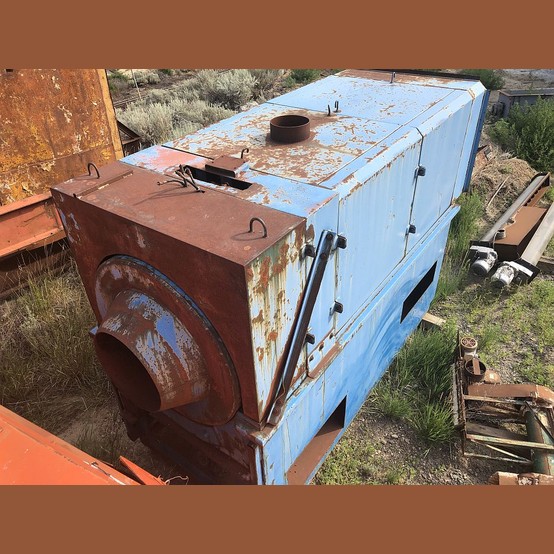

- Whole unit enclosed
- Can be set up to introduce air/heat drying.
