Inclined Belt Feeder Supplier Worldwide | Used 30 in. x 15 ft. Inclined Belt Feeder with Hopper For Sale

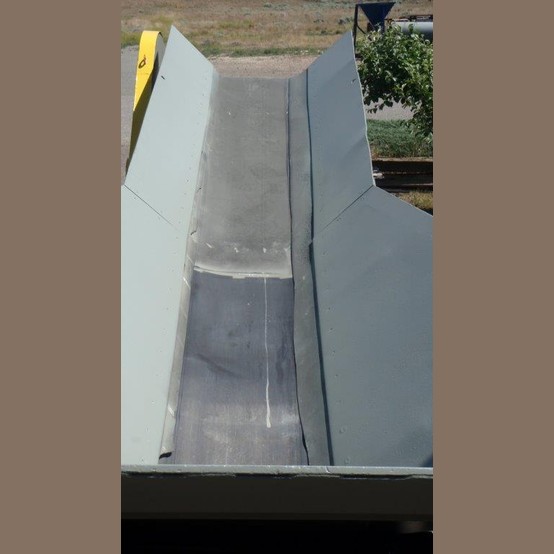

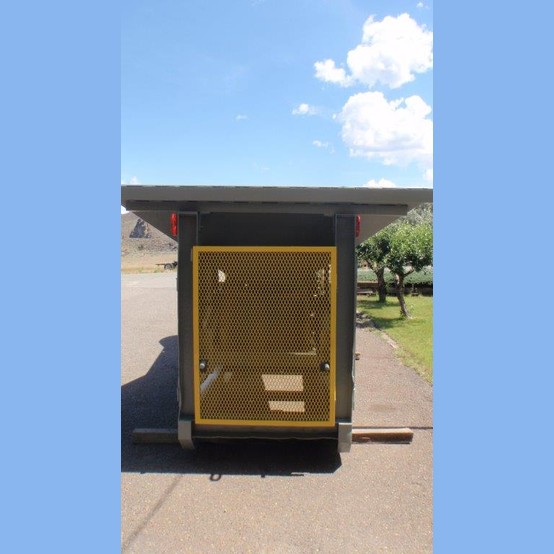

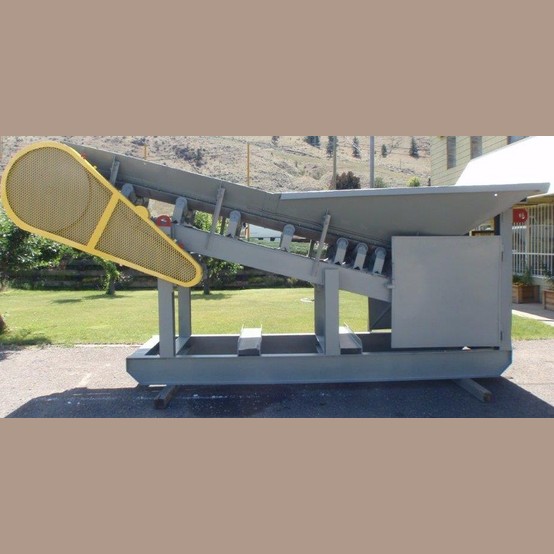

30 in. x 15 ft. Inclined Belt Feeder with Hopper ID: 192264

Need this? Click here Have one? Click here

10 In. Channel Frame Conveyor.

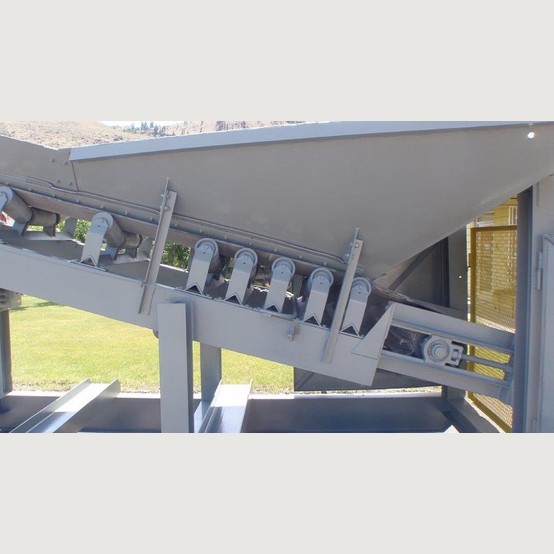

(5) 5 In. Dia X 36 In. Wide X 20 Degrees Rubber Impact Idlers
- Spaced at 9 In. Centers.
(4 ) 5 In. Dia X 36 In. Wide X 20 Degrees Troughing Idlers.
- Spaced at 24 In. Centers.
(2) Return Idlers.
16 In. Dia. x 32 In. Wide Rubber Lagged Head Pulley.

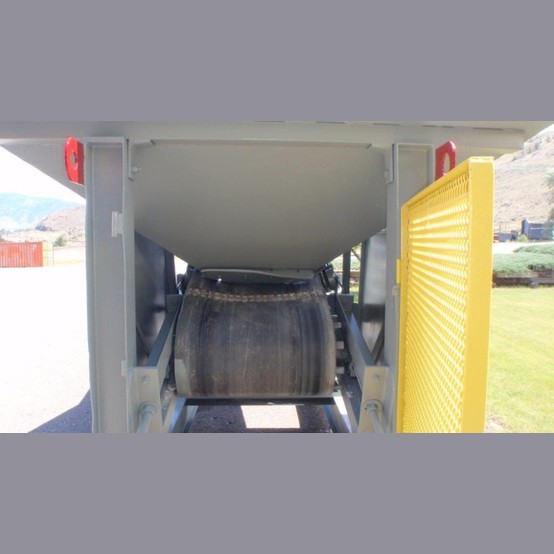

14 In. Dia. x 32 In. Wide Winged Tail Pulley.
30 In. Take Up on Tail Pulley.
7/16 In. Thick x 30 In. Wide Conveyor Belt.
- Top Cover 3/16 In. Thick, Bottom Cover 1/16 In.
Single Pull Safety Shut Down.

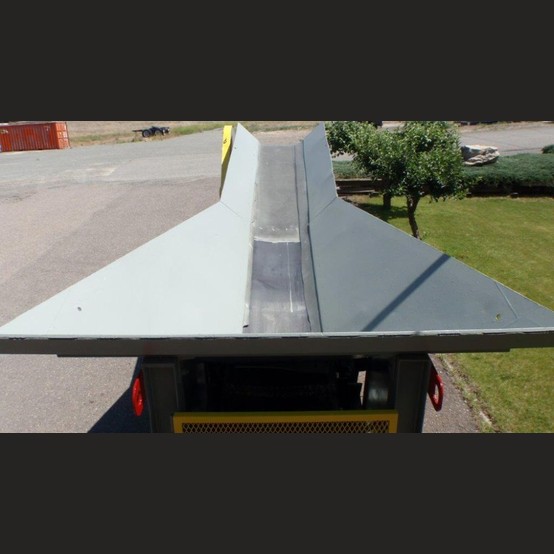

9 Ft. Wide X 9 Ft. Long X 3 Ft. Deep Feed Hopper.
- Skirted Full Length of Conveyor.
Motor and Reducer with Chain Drive to Head Pulley.
- 2 HP Motor:
  - Volts: 330/575V.
  - Sew Eurodrive
- Variable Speed Reducer, Model R80A, Ratio 150.20:1
Guards, (2) Side Guards, (1) Tail Guard.
30 AMP Square D Non-Fuseable Disconnect Switch.
Mounted on 12 In. I-Beam Skid.
