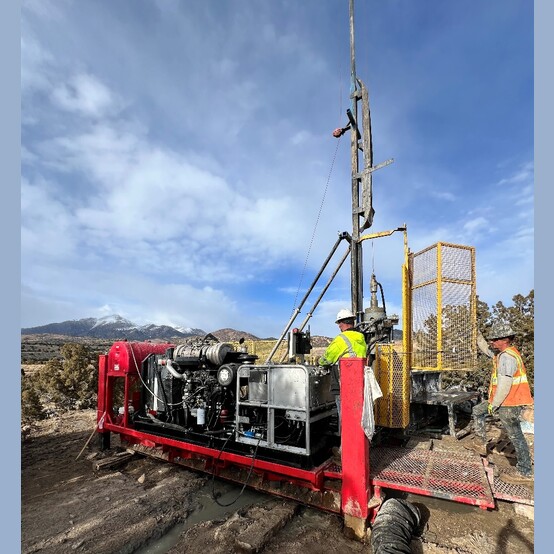

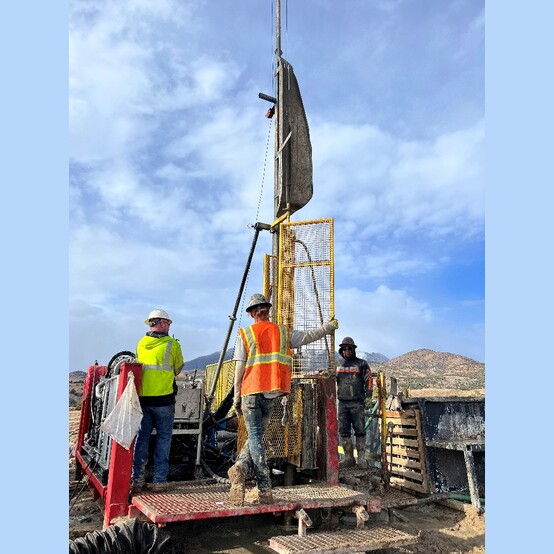

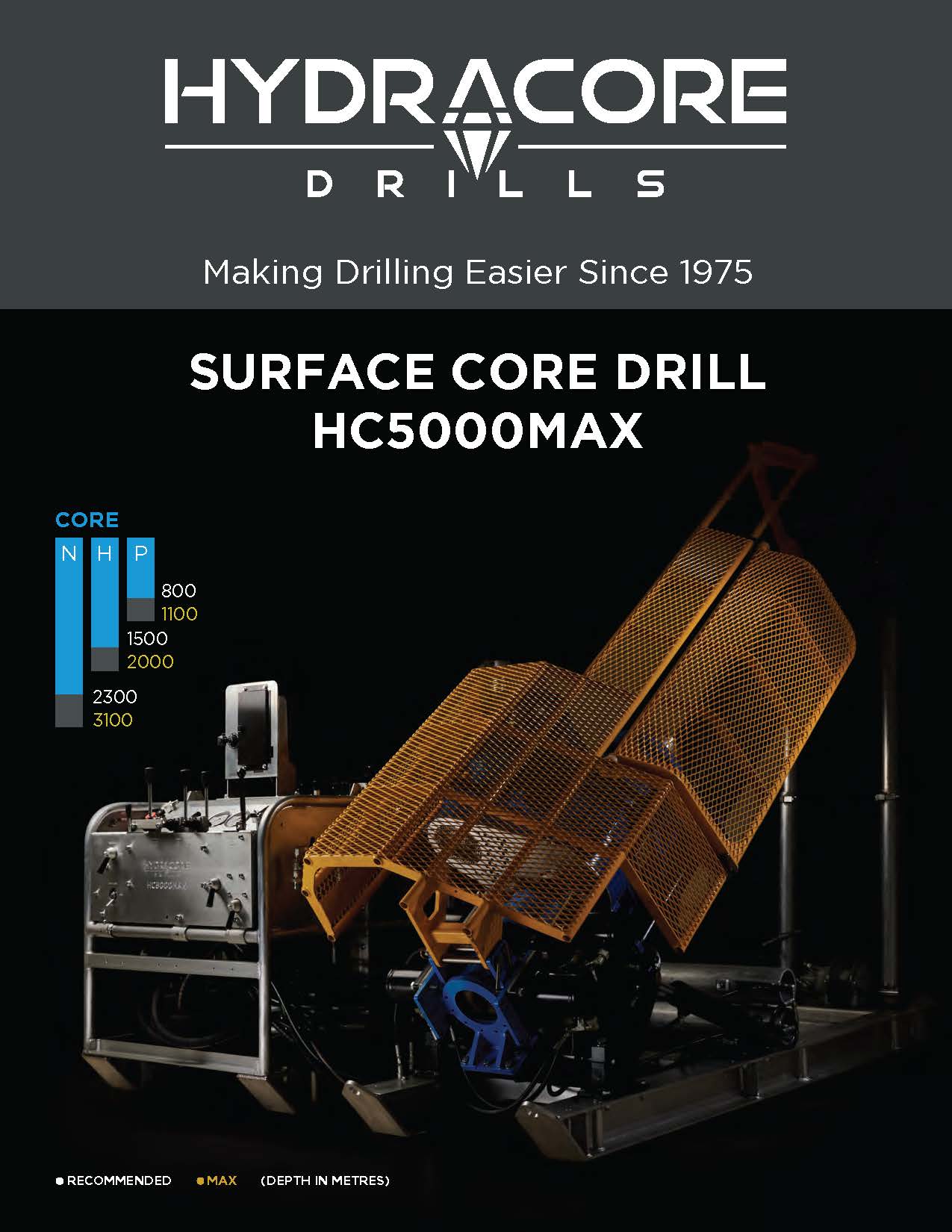

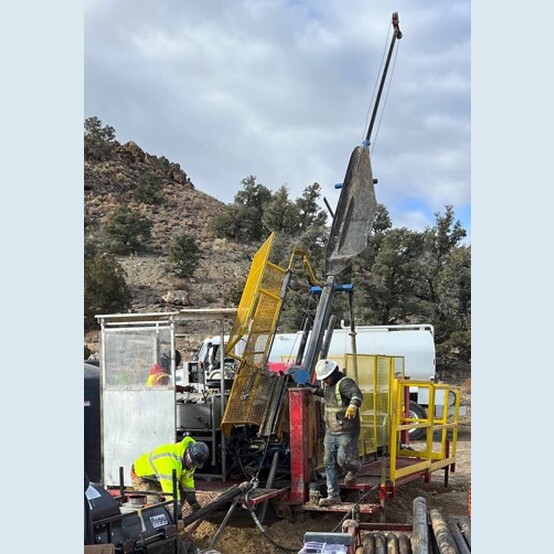

2023 Hydracore HC5000MAX Diamond Core Drill

• Make: Hydracore Drills
• Model: HC5000MAX
• Type: Diamond Core Drill
• Style: Surface Drill
• Year: 2023
• Condition: Used Condition - Low Hours, Ready to Drill
• Drilling Capacity: 1500m HQ (2,000m+ NQ)
• Drill Head Fits PQ Tooling for Pulling and Setting Casing
• Pullback: 70,000 lbs. of Combined Pullback
• Engine: Cummins "Tier 4" Diesel (260HP)
• Drill Weight: 24,000 Lbs. When Mounted on Skid (8,000 Lbs. When Setup as Fly Rig)
• Small Driller Shack

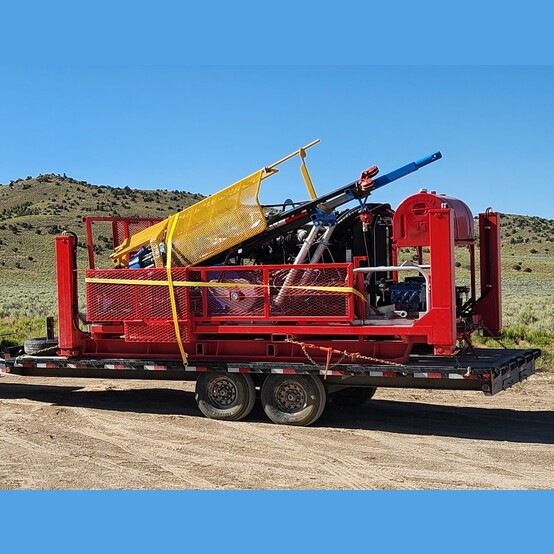

  • Folds Flat Against Rig for Transport
• Custom-Built Skid
  • Hydraulic Leveling Legs
  • Oversized Fuel Tank
  • MSHA-Compliant Foldup Walkways

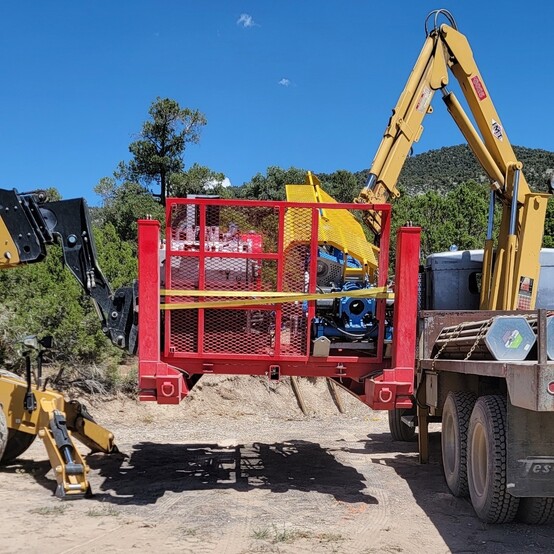

  • Rig Components can be Quickly Un-Bolted from Skid Frame and Transported for Helicopter Jobs

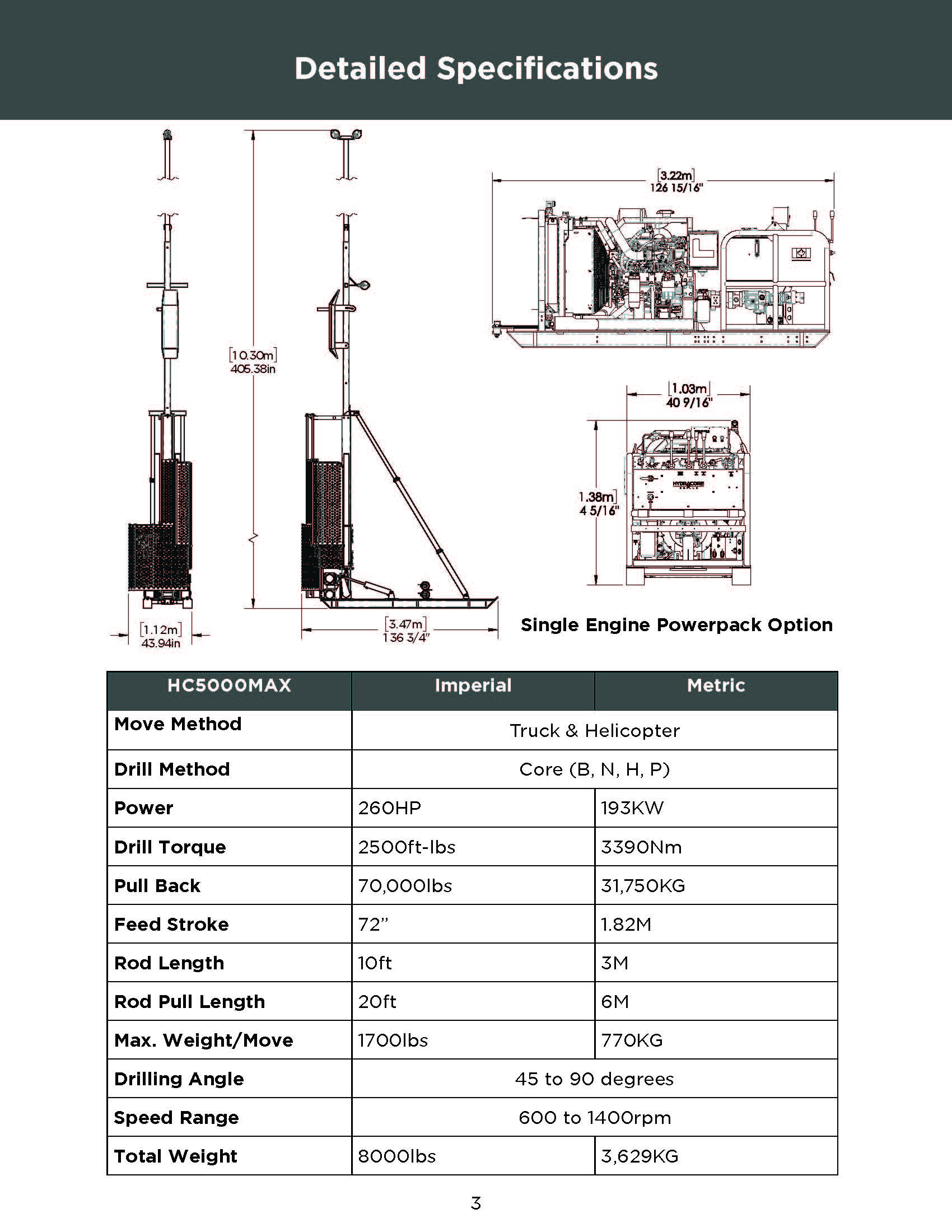

• General Model Specifications:
  • Move Method: Truck & Helicopter
  • Drill Method: Core (B, N, H, P)
  • Power: 260HP (193kW)
  • Drill Torque: 2,500 ft-lbs. (3390Nm)
  • Pull Back: 70,000lbs (31,750 KG)
  • Feed Stroke: 72” (1.82m)
  • Rod Length: 10ft (3m)
  • Rod Pull Length: 20ft (6m)
  • Max. Weight/Move: 1,700 lbs. (770 KG)
  • Drilling Angle: 45-90°
  • Speed Range: 600 to 1400 RPM
  • Total Weight: 8,000 lbs. (3,629 KG) - When Setup as Fly Rig


• Location: Southwest USA
