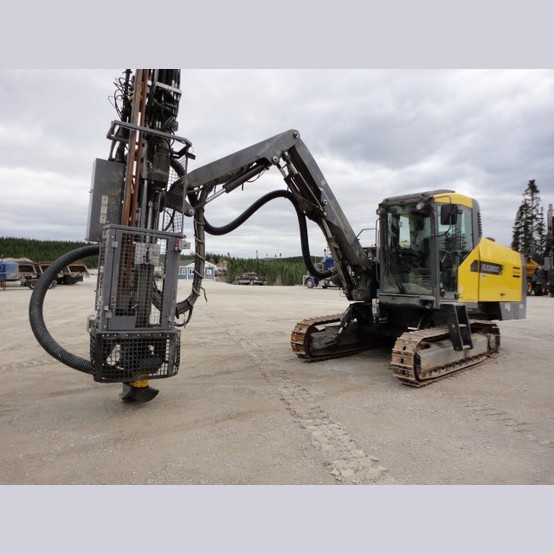

2015 Atlas Copco FLEXIROC T40 Drill ID: 217476


  • Hours: 2,100.
  • Package of four drills available.
  • Recommended Hole Range: 76-115 mm / 3 in. - 4.5 in.
  • Hydraulic rod handling system: 28 m / 92 ft.
  • Feed Height: 7140 mm / 23 ft. 5 in.
  • Engine:
    • Caterpillar turbo charged, diesel.
    • Power rating at 2200 rpm / 168 kW 225 hp.
  • Feed:
    • Hydraulic cylinder feed with hose guide and double drill steel
      support.
    • With movable lower guide/dust hood.
    • Total length: 7 140 mm / 23´5.
    • Travel length: 4 240 mm / 14 ft.
    • Feed extension: 1 400 mm / 4 ft 7 in.
    • Feed rate, max: 0.92 m/s / 184 ft / min.
  • Compressor
    • Atlas Copco OIS K-27-C106 GD screw compressor.
    • Working pressure, max: 10.5 bar / 152 psi.
    • FAD at normal working pressure: 136 l/s / 288 cfm.
  • Hydraulic system:
    • Anti-jamming.
    • Automatic feed force control RPC-F.
    • Damper pressure control - impact DPC-I.
    • Hydraulic oil cooler.
    • Max ambient temperature: 50°C / 122°F.
    • Return and drainage filters.
    • Filtration rate: 16 μm absolute.
  • Electrical system:
    • Voltage: 24 V.
    • Batteries: 2 x 12 V, 185 Ah.
    • Alternator: 28 V, 95 Ah.
  • Location: Eastern Canada
