• Tank Capacity: 2,200 USG + 3% Outage
• Design: Design Shall Withstand 15-PSI Internal Pressuer and 15-PSIG External Pressure (Full Vacuum)
• Tank Diameter: 72" OD
• Pressure Relief:
  • 2" Pressure Vent
  • 15 - PSIG Setting Mounted Top of Tank
• Primary Shut-Off:
  • 12" Hatch Assembly
  • 4" Internal Shut - Off
  • 6" SS Float Ball
  • Cage Assembly
• Baffle: 1 Anti Surge Mounted on Reinforcing Pad
• Rings: Circumferential Reinforcement Rings with Tank Support Feet
• Rear Door: Hydraulic Full Opening Rear Door Assembly with:
  • 6 Heavy Duty Wing Clamps
  • Neoprene Rubber Rear Door Gasket
  • Double Acting Hydraulic Cylinder
  • Saftey Brace

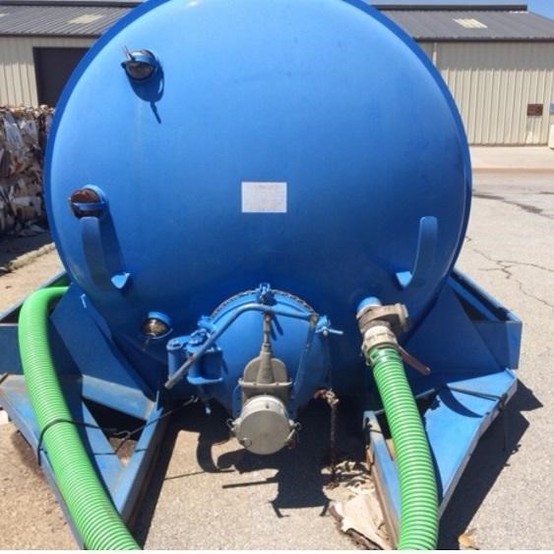

• Liquid Level:
  • Three - 5" Diameter Sight Glasses
  • Located on Rear Head
• Suction Valve:
  • 4" Brass Valve
  • 4" Sand Pipe/Deflector Plate Assembly
  • Aluminum Kamlok Fittings Mounted on Rear Head
• Discharge Valve:
  • 6" Brass Valves
  • Aluminum Kamlok Fitting Mounted on Rear Head
• Secondary Shut-Off:
  • Exterior Moisture Trap Assembly with Drain Valve
  • Sight Glass
  • Steel Filter Screen Assenbly
  • 4" SS Float Ball
  • Cage Assembly with Neoprene Rubber Seat
• Muffler:
  • 4" Muffler/Oil Trap Assembly with Drain Valve
  • 12" Swing Out Bottom Clean Out
  • 4" Exhaust Adapter
• Piping:
  • Single 3" Diameter
  • Vacuum System Connected with Vacuum Pump Flush Port and Wire Reinforced Ruber Hose
• Pump Specification:
  • Moro PM80 Air Cool Vacuum/Pressure Pump
  • 360 CFM Free Air Rating
  • 27" Hg Maximum Vacuum
• Drive: Hydraulically Driven from Customer Supplied Hydraulic System on Hoist System. Hydraulic Motor to be Supplied by Cusco
• Hydraulic Reservior: Supplied by Customer on Hoist System
• Hydraulic Controls:
  • 2 - Spool Valve Body for Control Rear Door
  • Vacuum Pump
  • wash System
• Gauges: Glycerin Filled Vacuum/Pressuer Gauge and Hydraulic Pressuer Gauge
• Side Trays: Full - Length Side Boxes for Hose Storage
• Trim: Ladder Assembly Driver Side and 25' Static Line
• Location: Eastern USA
