13800-600V Portable Conveyor Substation ID: 204689

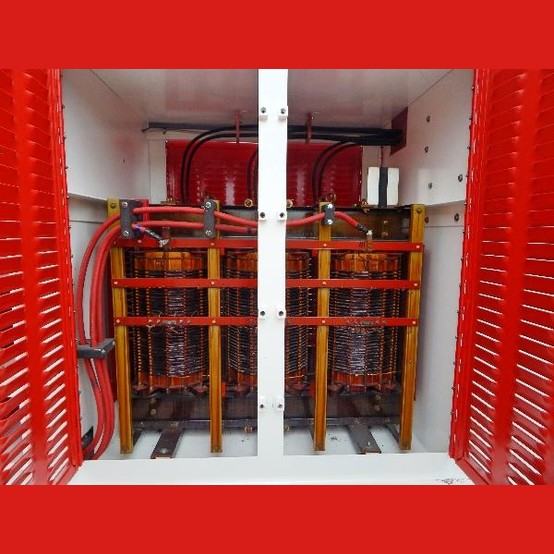

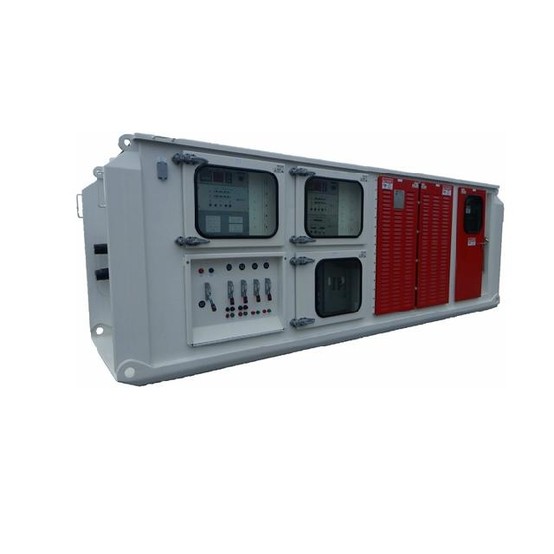

This is a 750KVA 13800-600V portable substation suitable for underground mining.

This unit was remanufactured and upgraded from its original design. Some features and improvements on this substation include:

  • Modify enclosure to allow for recessed remote operating handles.

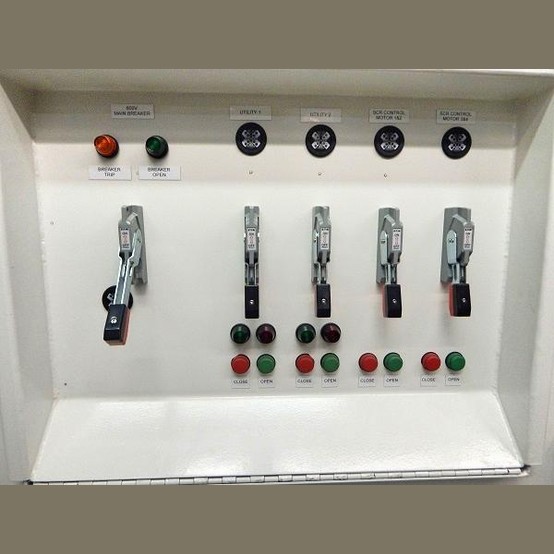

  • Added remote operating flex handles for manual operation of the breakers from a distance.
  • Install folding multi-hinge doors at 600V breaker load terminals.

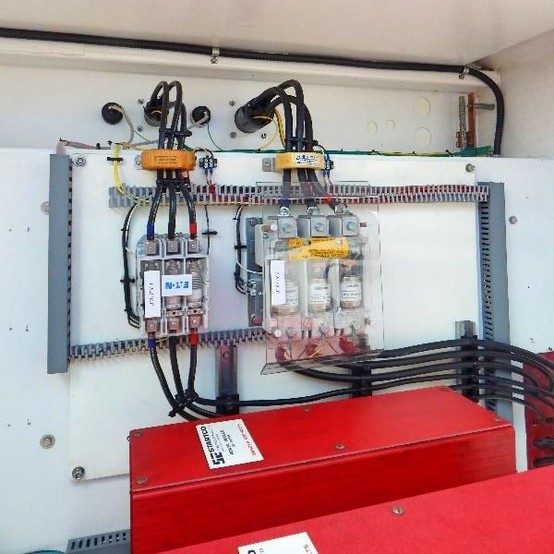

  • New Vacuum contactors for two 600V utility outlets.

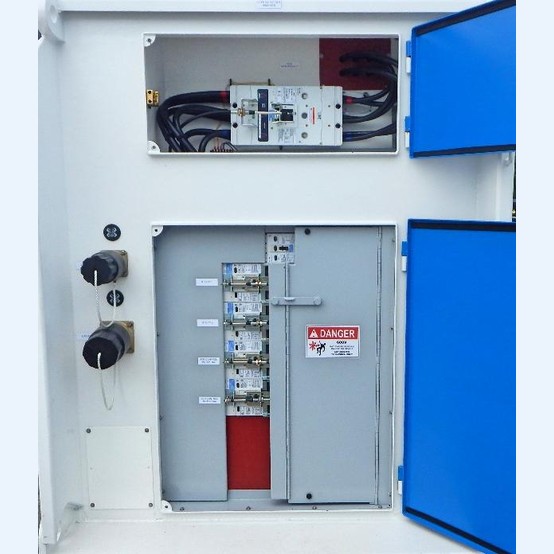

  • New separate enclosure for the Main 600V Breaker.
  • Removal of motor control for the Tailings Conveyor.

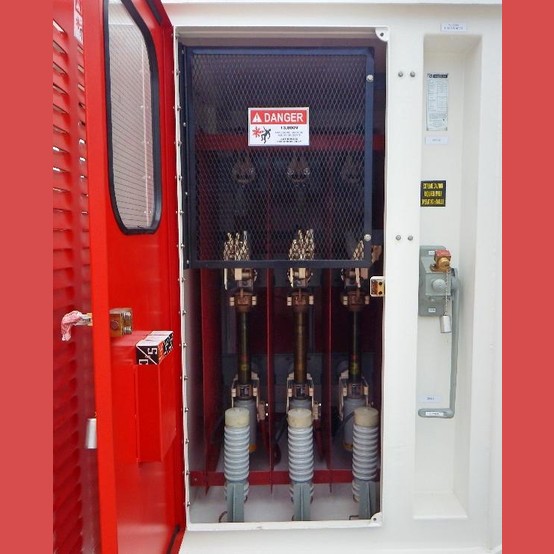

  • HV switches including new silver plating of conductors.
  • HV indicator lights.
  • Kirk Keys on HV switch handle as well as switch on main front door.
  • Lightning arrestors connected to the line side of the 13.8kV transformer to supress voltage spikes on the incoming HV supply.

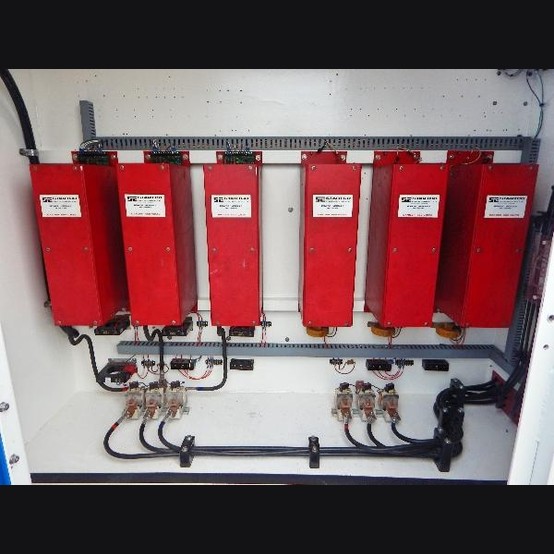

  • Neutral ground resistor with resistor failure detection.
  • LED voltage indicator added beside each 600V outlet and near each breaker remote operator handle for safety indication of voltage.
  • Contact for additional Details.
