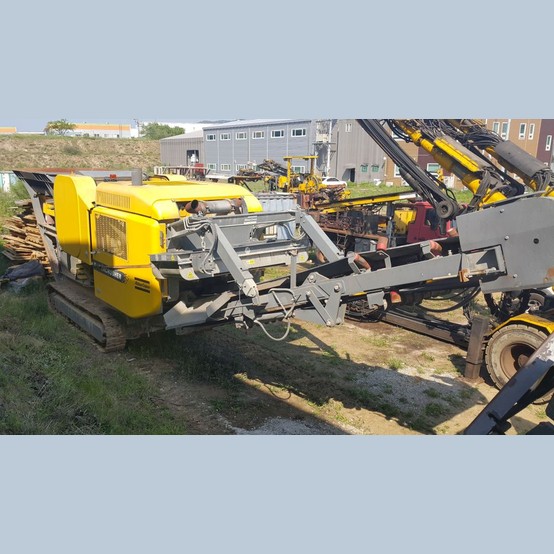

• Unit type: Jaw crusher.
  • Inlet opening: 1,250 x 650 mm / 49" x 26".
  • Total weight: 45,000 kg / 99,208 lbs.
  • Transport dimensions
    • (L x W x H) 12 200 x 2 650 x 3 530 mm / 40' x 8' 8" x 11' 7".
  • Crushing capacity: Up to 300 t /h / 330 ust/h.
  • Engine power: 242 kW / 324 HP.
  • Quattro Movement.
  • Crusher box
    • Inlet opening: 1 250 x 650 mm / 49" x 26".
    • Gap width: 50 - 150 mm / 2" - 6".
    • Jaw Flywheel: 1 500 mm / 59".
    • Crusher revolution, max.: 270 rpm / 270 rpm.
  • Feedhopper
    • Charging volume, approx.: 4.9 m³ / 6.6y3.
    • Charging length: 3 202 mm / 10' 6".
    • Charging width: 2 438 mm / 7' 11".
    • Charging height: 3 570 mm / 11' 8".
  • Vibrating chute with pre-screening
    • Length: 3 387 mm / 11' 1".
    • Width: 1 135 mm / 44".
  • Main conveyor belt:
    • Belt width: 1 200 mm / 48".
    • Discharge height: 3 262 mm / 10' 5".
  • Side conveyor belt
    • Belt width: 650 mm / 26".
    • Discharge height: 3 048 mm / 10".
  • Crawler unit
    • Track chain width: 400 mm / 16".
  • Permanent magnetic separator:
    • Belt width: 750 mm / 29".
