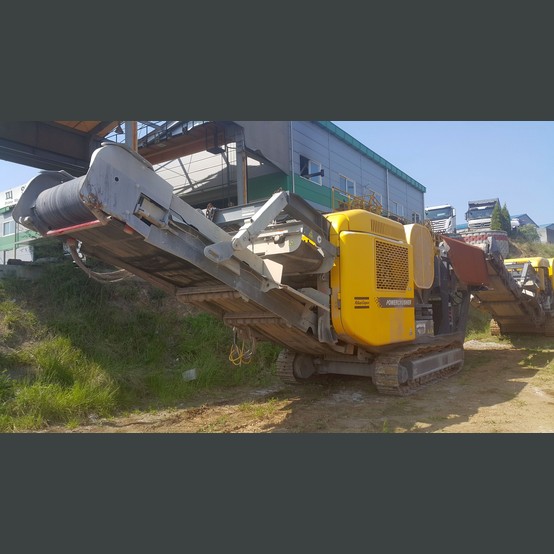

• Unit type: Jaw crusher.
  • Inlet opening: 1 020 x 730 mm / 40" x 28.
  • Total weight: 40 000 kg / 88 185 lbs.
  • Transport dimensions
    • (L x W x H) 12 000 x 2 500 x 3 200 mm / 39' 4" x 8' 3" x 10' 6".
  • Crushing capacity: Up to 250 t /h / 275 ust/h.
  • Engine power
    • CAT C9,3 T4: 242 kW / 324 HP.
    • CAT C9 T3: 205 kW / 275 HP.
  • Crusher box:
    • Inlet opening: 1 020 x 730 mm / 40" x 28".
    • Gap width: 50 - 140 mm / 2" - 5.5".
    • Jaw Flywheel: 1 200 mm / 48".
    • Crusher revolution, max.: 330 rpm / 330 rpm.
  • Feedhopper:
    • Charging volume, approx.: 4.2 m³/ 5.5y3.
    • Charging length: 3 333 mm / 10' 11".
    • Charging width: 2 424 mm / 7' 11".
    • Charging height: 3 759 mm / 12' 4".
  • Vibrating chute with pre-screening:
    • Length: 3 348 mm / 10' 11".
    • Width: 820 mm / 32".
  • Main conveyor belt:
    • Belt width: 1 000 mm / 39".
    • Discharge height: 2 941 mm / 9' 8".
  • Side conveyor belt:
    • Belt width: 650 mm / 26".
    • Discharge height: 2 508 mm / 8' 3".
  • Crawler unit:
    • Track chain width: 400 mm / 16".
  • Permanent magnetic separator:
    • Belt width: 750 mm / 29".
