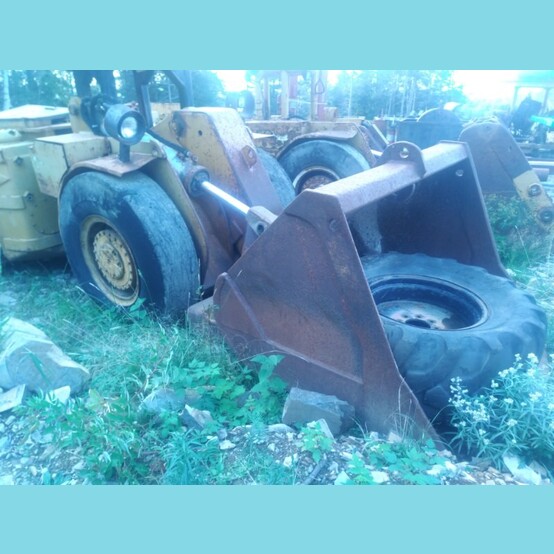

Wagner ST-2D 2-Yard Scooptrams

Quantity: 2 Units

• Make: Wagner
• Model: ST-2D
• Year: 1997
• Condition: Used, Reported in Running Condition,  Excellent Running Gear, Used until a Few Years Ago, Excellent Rebuild Units
• Capacity: 3.6 Tonnes (2-Yards)
• Drive: Deutz F5L912 Engines


• General Model Specifications:
  • Capacity:
    • Tramming Capacity: 3600 kg (8,000 lbs.)
    • Static Tipping Capacity: 9862 kg (21,737 lbs.)
    • Breakout Force, Hydraulic: 9060 kg (19,930 lbs.)
    • Breakout Force, Mechanical: 5936 kg (13,090 lbs.)


  • Boom Speeds:
    • Raising: 3.7s
    • Lowering: 3.0s


  • Bucket Speeds:
    • Dump: 6.4s
    • Roll Back: 5.3s


  • Engine:
    • Deutz Diesel F5L-912W
    • MSHA Power Rating @2,300RPM: 63kW (85HP)
    • Maximum Torque @1,500RPM: 292Nm (215ft.-lbs.)
    • Number of Cylinders: 5, In Line
    • Displacement 5.4 L (327 in³)


  • Exhaust System
    • Catalytic Purifier Plus Exhaust Silencer


  • Electrical System
    • System Voltage: 24 Volt Starting, 24 Volt Accessories


  • Transmission:
    • Modulated Power Shift: 4 Speeds Forward/Reverse
    • Model: Spicer R28000 Series


  • Torque Converter:
    • Single Stage
    • Model: Spicer C-270 Series


  • Axles:
    • Spiral Bevel Differential, Full Floating, Planetary Wheel End Drive
    • Model: Spicer 14D2149
    • Oscillation
      • Rear Axle, Bronze/Ball Bushing
      • Degree of Oscillation: Total 16˚ (8˚ Each Side)


  • Brakes:
    • Service: Hydraulically Applied Spring Released; Fully Enclosed Wet Discs at Each Wheel End
    • Parking and Emergency: Spring Applied Hydraulically Released; Fully Enclosed Multiple Wet Discs, Built Into Transmission


  • Tires:
    • Tube Type, Nylon, Smooth Tread Design for Underground Mine Service, on Demountable Rims
    • Tire Size, Front and Rear: 12.00 x 24, 16 Ply, L-5S


  • Steering:
    • Articulated Hydraulic Power Steering, Pilot-Operated, Monostick Control
    • Turning Angle: 81˚ (40.5˚ Each Way)
    • System Pressure: 13.1 MPa (1,900 PSI)


  • Tank Capacities:
    • Fuel: 148L (39 Gal)
    • Hydraulic: 144L (38 Gal)


• Location: Atlantic Canada
