Tamrock EJC 210 6-Yard Scooptram
- Make: Tamrock
- Model: EJC 210
- Type: Scooptram
- Capacity: 6.0 Yards (4.6m³)
- Payload: 9,500 Kg (21,000 Lbs.)
- Condition: Used, Reported in Good Condition
- Diesel Engine: Detroit S50
- Brake System: LCB
- Powertrain: Clark
- Electrical System: 24 Volt
- Tires: 17.5-25
View Spec Sheet Below - General Model Specifications:
- Capacities:
- Tramming Capacity: 9,525 kg (21,000 lbs.)
- Breakout Force, Lift: 97 kN (9,910 kg) (21,850 lbf)
- Break Out Force, Tilt: 143.5 kN (14,628 kg) (32,250 lbs.)
- Tipping Load: 25,174 kg (55,500 lbs.)
- Buckets: 3.8 - 5.3 m³ (5.0 - 7.0 yd³)
- Bucket Motion Times:
- Raising Time: 5.5 sec.
- Lowering Time: 4.0 sec.
- Tipping Time: 5.0 sec
- Standard Engine:
- Diesel Engine: Detroit Diesel Series 50 DDEC
- Output: 186kW (250HP) @2,100 RPM
- Torque: 1058 Nm (780 lbf-ft) @1,350 RPM
- Number of Cylinders: Inline 4
- Displacement: 8.5 L (519 in³)
- Cooling System: Liquid Cooled
- Combustion Principle: Turbocharged, Aftercooled, Direct Injected, 4-Cycle
- Air Filtration: Donaldson, Dry Type
- Electric System: 24 V
- Exhaust System: ECS Catalytic Purifier with Silencer
- Standard Converter: Clark C5402, Single-Stage, Stall Torque Ratio: 3.14-1
- Offset Ratio: 1.0-1
- Transmission: Clark 4421 4-Speed Forward and Reverse with Modulation
- Standard Axles:
- Front Axle: Clark 19D2748, Posi-Torq Differential, Fixed
- Rear Axle: Clark 19D2748 No-Spin Differential, Oscillating ± 10°
- Weights:
- Operating Weight: 25,084 kg (55,300 lbs.)
- Total Loaded Weight 34,609 kg (76,300 lbs.)
- Axle Weights without Load:
- Front Axle: 10,070 kg (22,200 lbs.)
- Rear Axle: 15,014 kg (33,100 lbs.)
- Axle Weights with Load:
- Front Axle: 24,358 kg (53,700 lbs.)
- Rear Axle: 10,251 kg (22,600 lbs.)

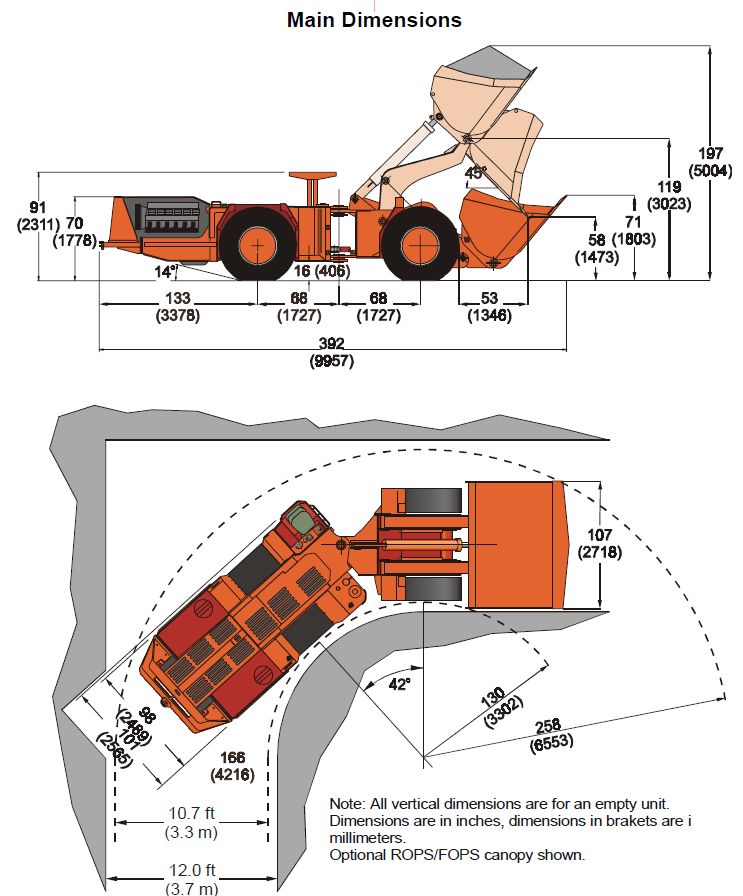

- Main Dimensions:
- Total Length: 9,957mm (392in)
- Width Without Bucket: 2,565mm (101in)
- Max Width: 2,718mm (107in)
- Height with Safety Canopy: 2,311mm (91in)
- Capacities:
- Location: Mexico
