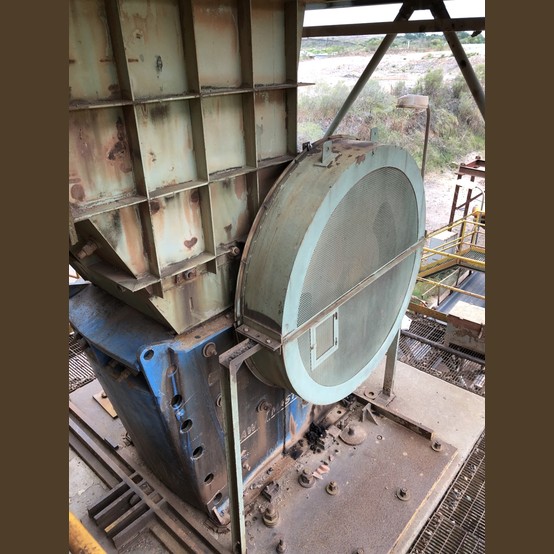

• Type: JM1108 HD/CJ411
• Year: 2007
• Corrugated Jaw Liners
• WEG Drive Motor
  • 110 kW (150 HP)
    • 380 Volt
    • 50 Hz
  • 125 kW (170 HP)
    • 440 Volt
    • 60 Hz
• Technical Data
  • Weight: 22,000 kg (48,500 lb.)
  • Feed Opening: 1,045 - 840 mm (41 x 33 in.)
  • Feed Size: 750 mm Max. (29.5 in.)
  • Capacity (By Hour): 150 - 565 mtph
  • Motor Power: 110 kW (150 HP)
  • Clased Side Setting (CSS) Range: 75 - 225 mm (2.9 - 8.8 in.)
  • Jaw Plates: WT, C, CC

Watch Youtube Video: https://youtu.be/3fSIfhp71Sk

This jaw crusher is available separately or as part of a complete ore processing plant which includes the following equipment:
3500 TPD Gold Silver CIL Ore Processing Plant ID 411618
Sandvik CH430 Cone Crusher ID 494284
Symons 3ft. Shorthead Cone Crusher ID 525293
Symons 3ft. Standard Cone Crusher ID 525328
