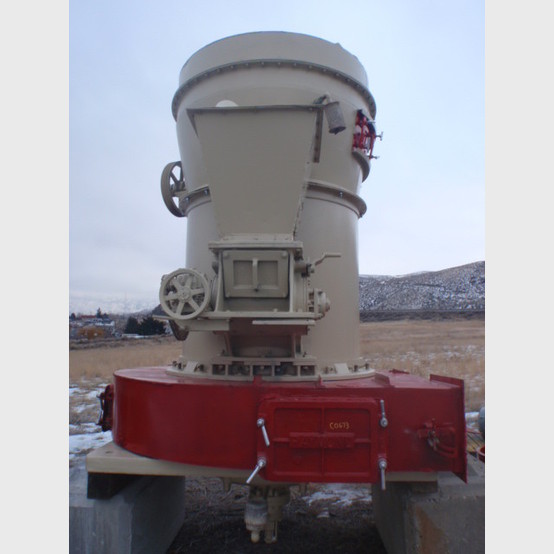

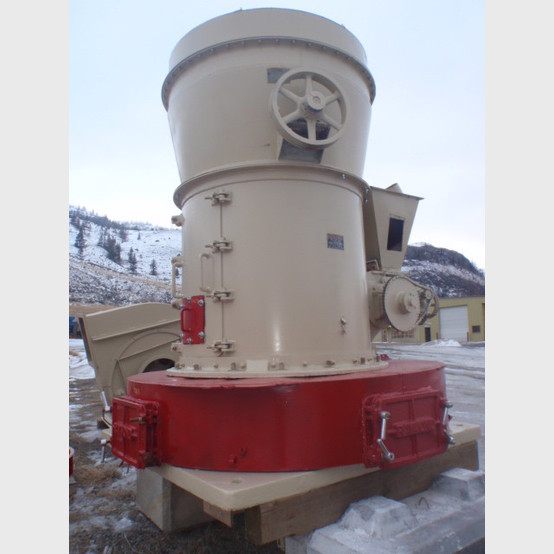

  • Raymond 5057 High Side Roller Mill:
    • Serial No. 44115.
    • GE drive motor:
      • Frame: 405.
      • 50 hp, 1180 rpm, 440V.
    • 5 rollers - 16 in. dia x 7½ in deep.
    • Riding ring - 2 in. thick x 7 in. deep.
    • Rotary feeder mounted to shell.
    • R/A gear reducer chain driven by a Baldor TEFC motor.
      • 2 hp, 230/460V, 1725 rpm.
  • Comes with:
    • Raymond Single Wizzer Classifier:
      • Serial No. 44094.
      • 60 blades (also includes 57 new spare blades).
      • English electric motor.
        • 21½ hp, 220/440V, ODP.
      • Electrical controls.
      • Outside dia. 66 in.

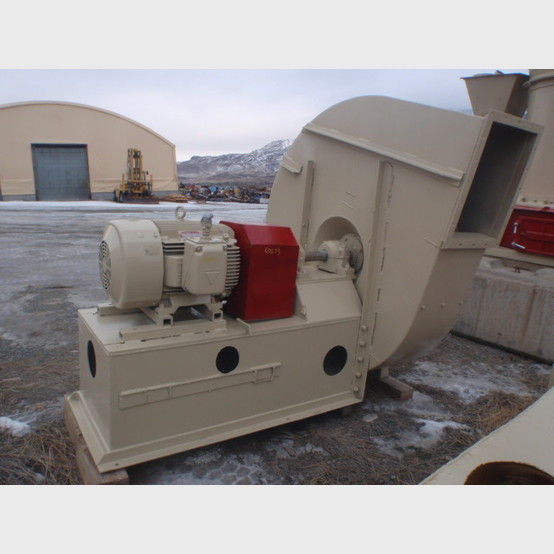

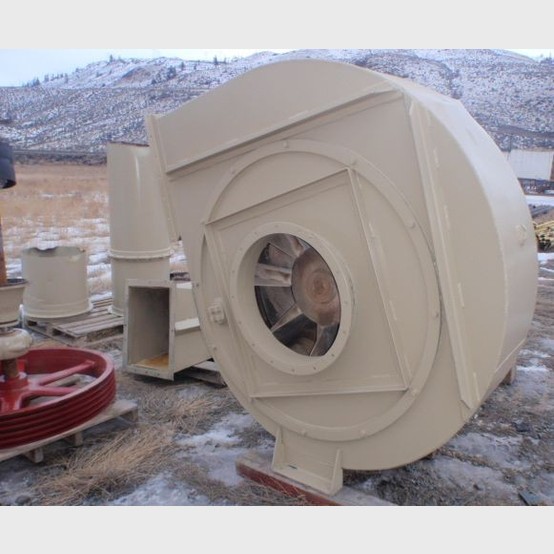

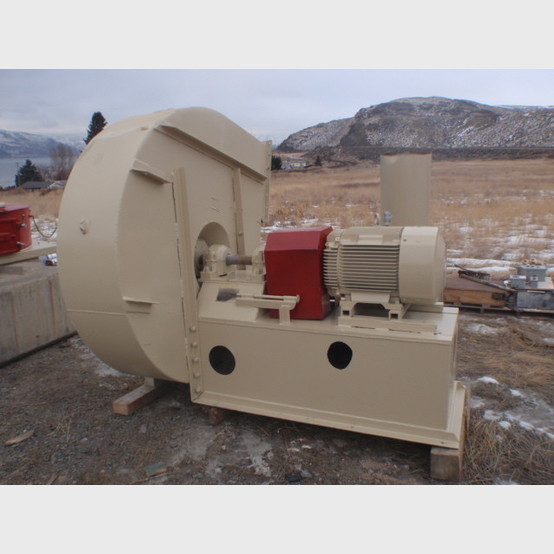

    • Raymond Blower:
      • Serial No. 44115.
      • Hyundai TEFC motor:
        • Frame: 365T.
        • 50 hp, 208/230/460V, 1180 rpm.
      • Paddle type.
      • Outside dimensions: 18 in. deep x 70 in. dia.
      • 2 ft. dia. inlet.
      • 25½ in. x 18 in. discharge.
      • Motor direct coupled to blower.
      • 3 pieces of ducting.
Sold
