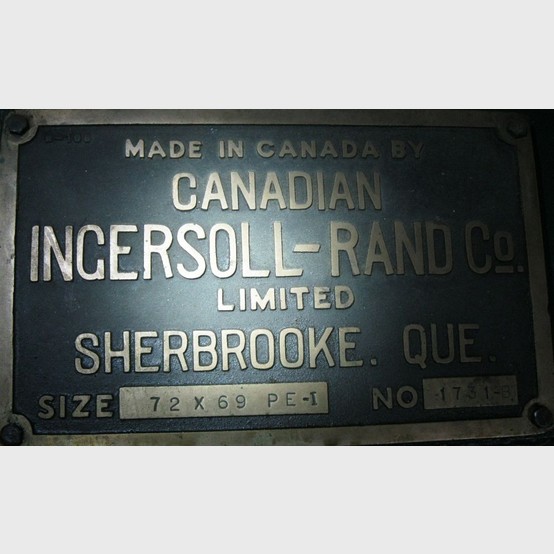

Canadian Ingersoll-Rand 72 x 69 PE-1 Mine Hoist ID: 65951


  • Double drum.
  • 72 in. dia. x 69 in. wide @ face each.

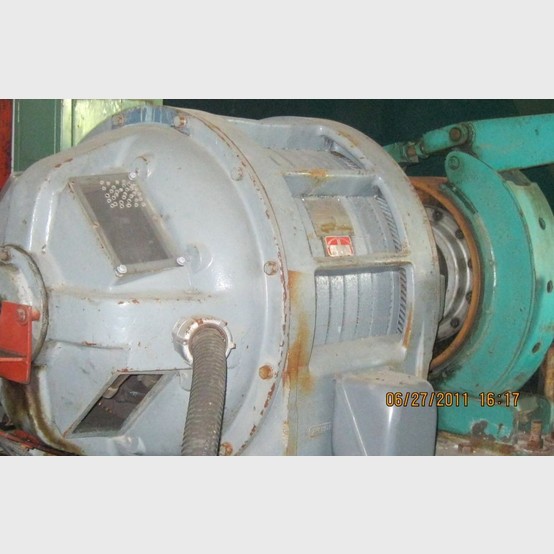

  • Canadian General Electric 450 hp electric motor.
    • 600 rpm.
    • 2400 volts.
    • 3 phase.
  • 7/8 in. dia. wire hoist ropes.
  • 15,000 lbs suspended load/rope pull rating.
  • Hoisting speed: 1200 fpm.
  • Dual weight, over air released, friction shoe brakes on each drum.
  • Weight actuated, over air released, friction shoe brake on motor drive shaft.
  • 2 mechanical geared clutches.

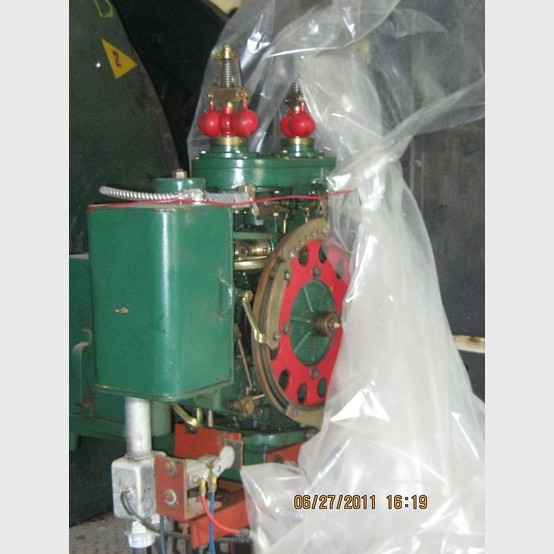

  • Lilly model "C" controllers.
  • Electrical mechanical hoist controls.
  • Canadian General Electric limitamp primary switchgear.
  • AC cast iron grids.
  • Fault finder panel.
  • 2 - 72 in. bicycle spoke, roller bearing, and sheave wheels.
  • Includes skip over cage with 2nd skip as counter balance.

  • Location: Central Canada
