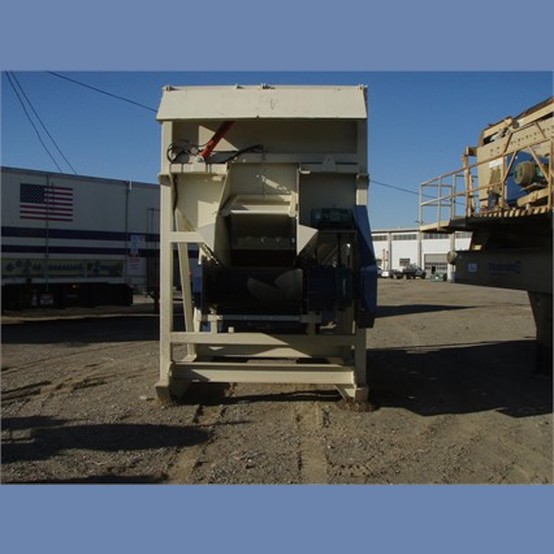

• Year: 2015.
• 36 in. wide conveyor.
  • Adjustable gate.
  • Variable frequency drive.
• ~19 yd³ (struck) hopper with reinforced ¼ in. MS plate hopper walls.
• Feed height is ~13 ft.
• Feed width is ~12 ft.
• Lower hopper skirts to belting and adjustable skirt rubber.
• I-beam skid and supports.
• 36 in. wide x 15 ft. channel frame conveyor with ~4 ft. discharge height.
• 10 hp TEFC electric drive motor, gearbox and V-belts.
• 14 in. lagged head pulley.
• 14 in. wing type tail pulley.
• Head and tail pulley guards.
• Flat belt C5 idlers in load area.
• 3-ply belting ¼ in. x 1/16 in. covers and mechanical fasteners.
• Head end belt scraper.
• Manual screw type take-ups at tail end.
• Adjustable throat gate to regulate material bed depth on belt.
• Wing extensions for hopper.
• Variable frequency AC drive.
• Hydraulic tipping grid.

Please contact us for more information.
