Alphair Axial Ventilation Fan, Air Tunnel & Control Module Package

• Make: Alphair
• Condition: Used
• Package Includes:

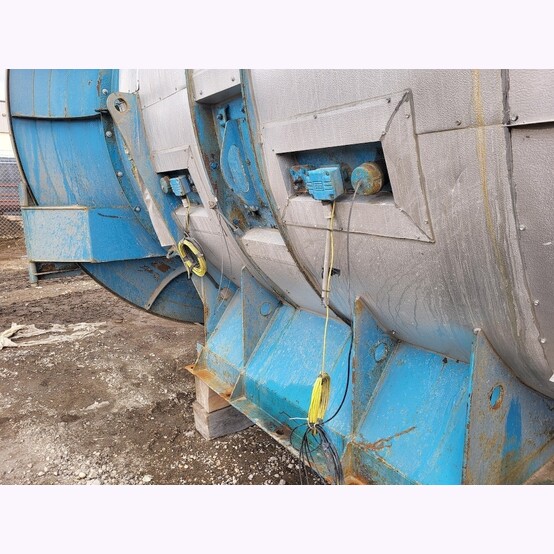

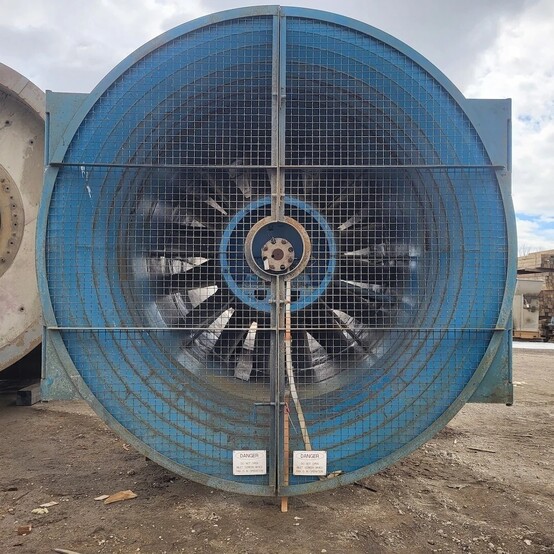

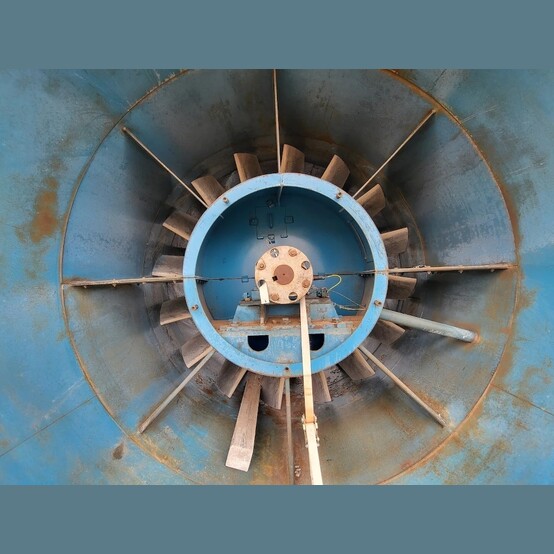

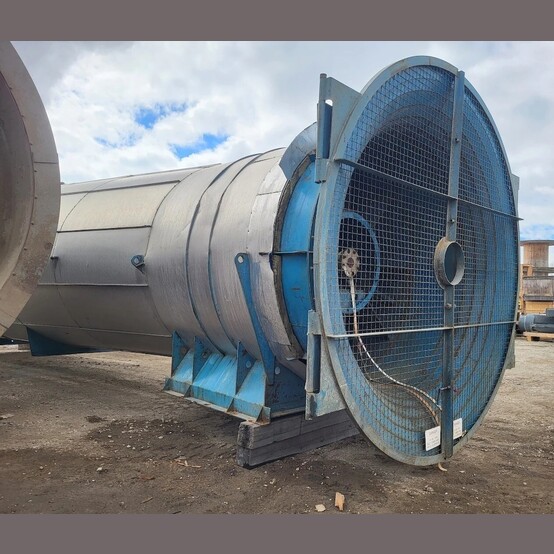

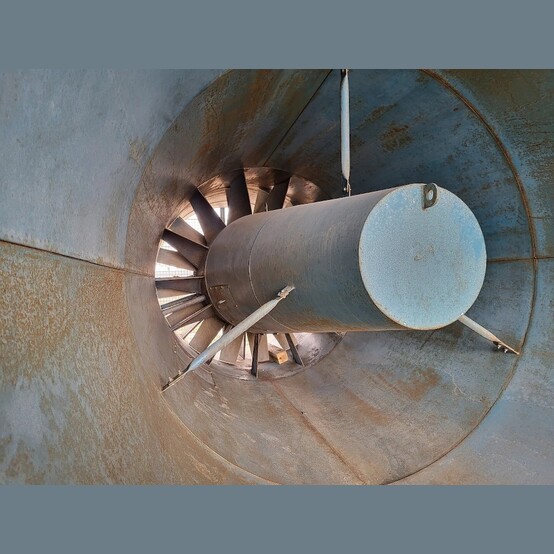

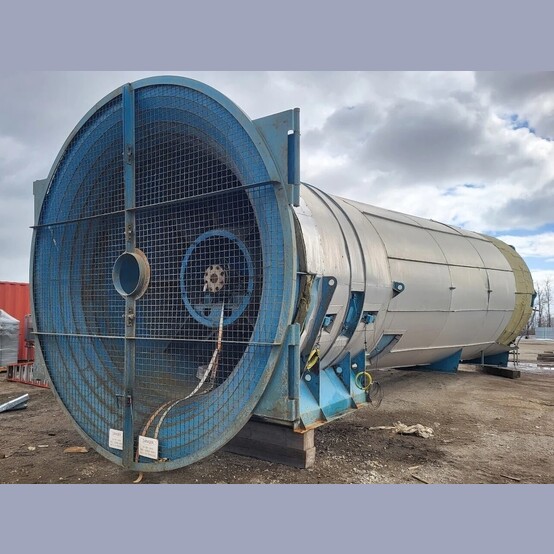

  • Alphair Axial Ventilation Fan

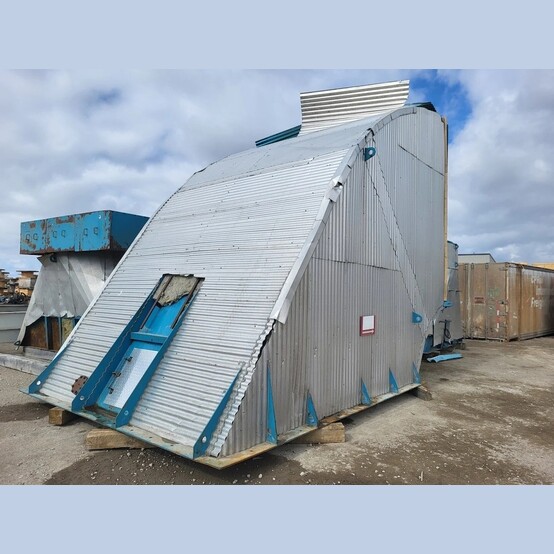

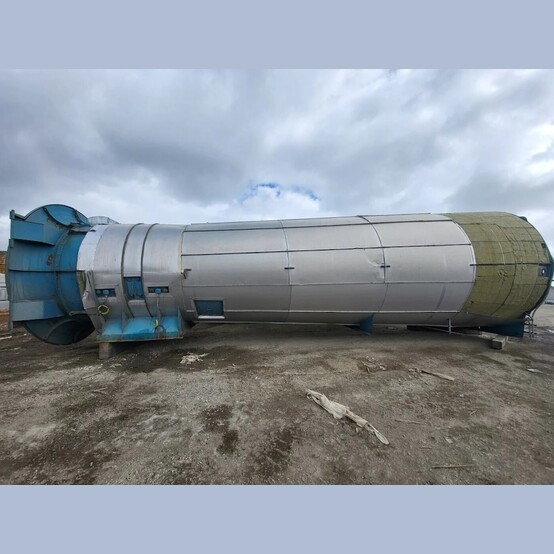

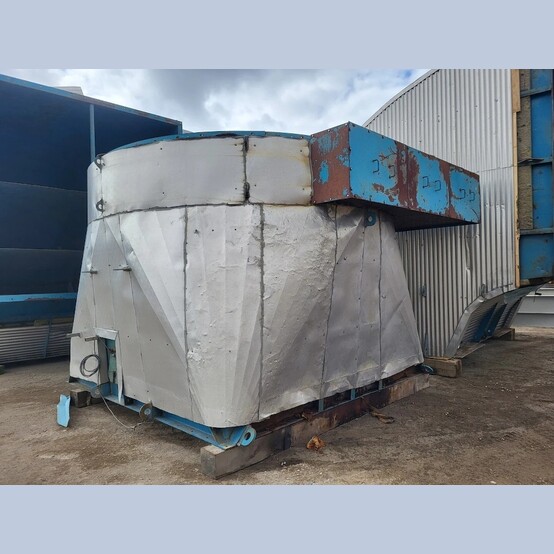

  • Alphair Axial Ventilation Air Tunnel

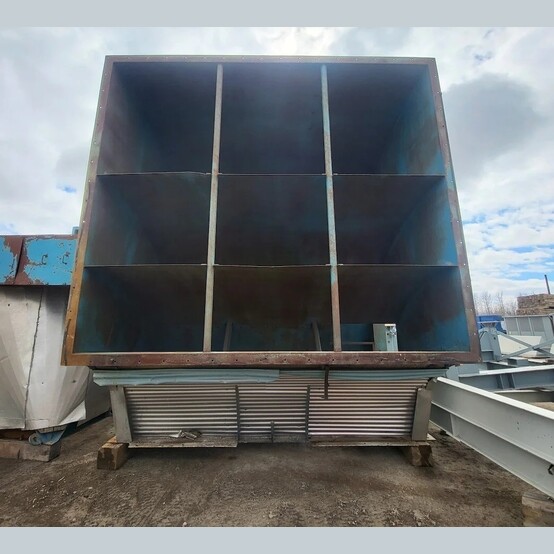

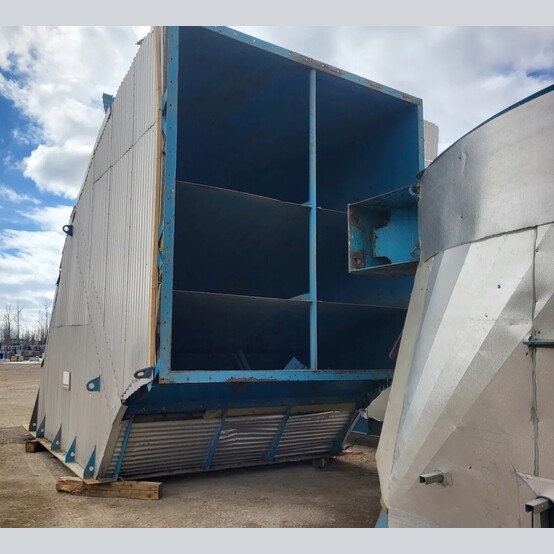

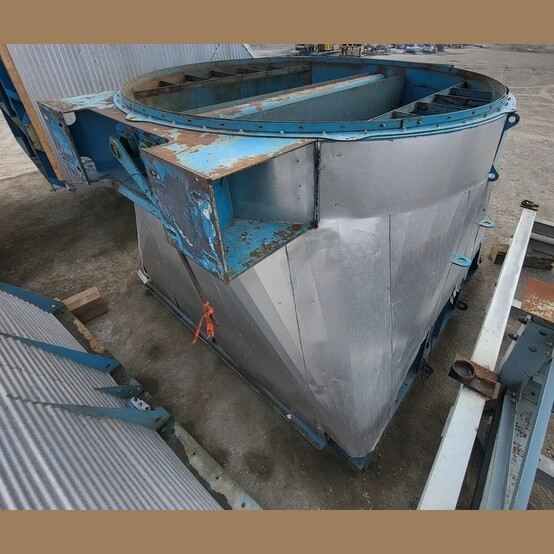

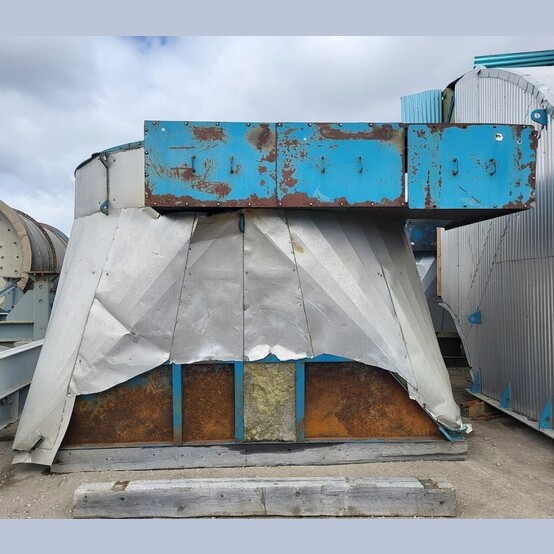

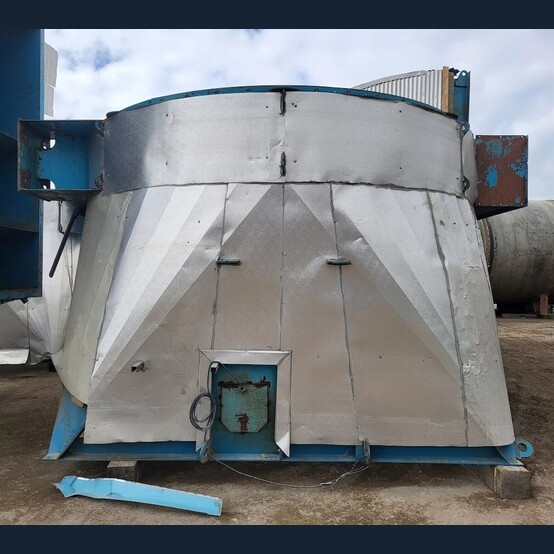

  • Alphair Axial Ventilation Elbow Connector

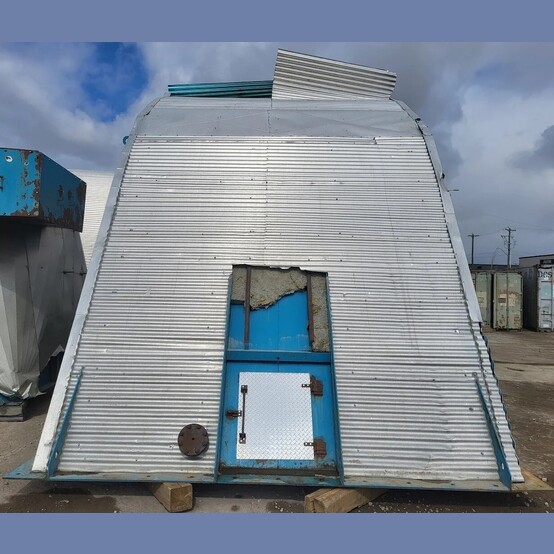

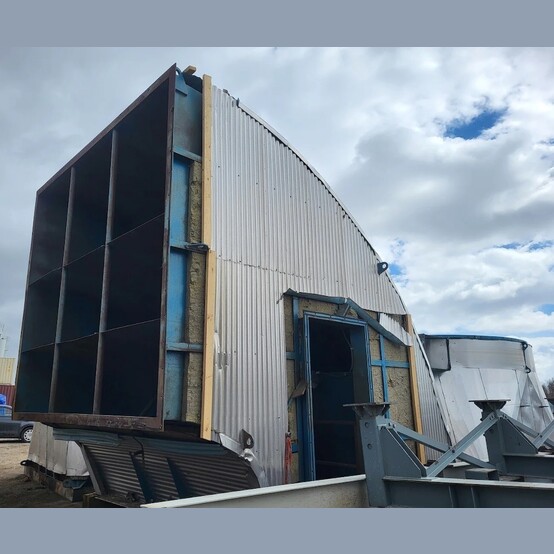

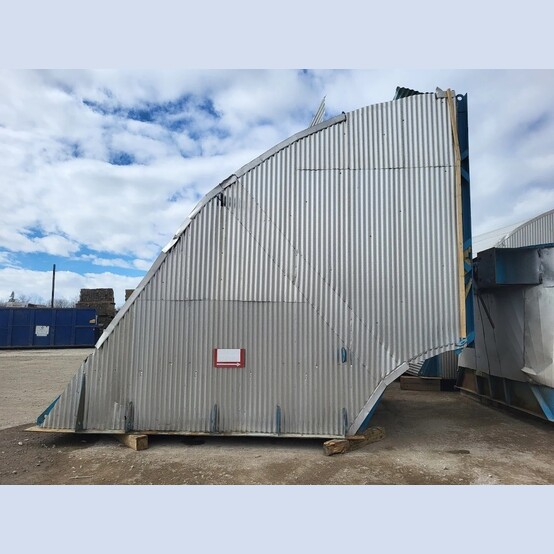

  • Alphair Axial Ventilation Elbow

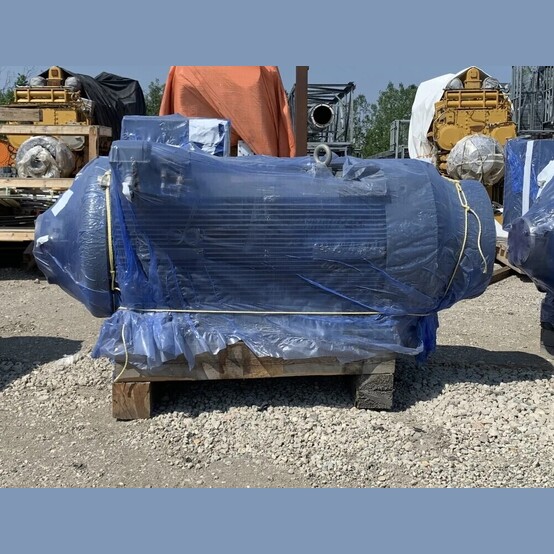

  • Teco-Westinghouse Premium Efficiency 3-Phase Severe Duty Motor

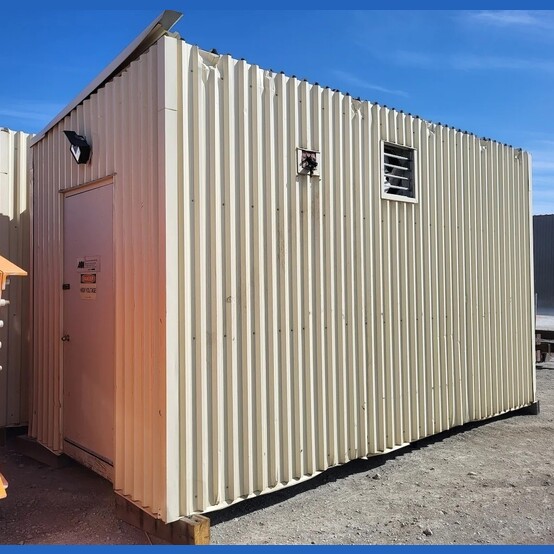

  • Electrical Control Module with 1,000HP VFD

• Fan Performance:
  • Max. Air Flow: 375,000ft³/min
  • Min. Air Flow: 276,000ft³/min
  • Static Pressure: 12.73 in wg.
  • Fan Rotation Speed: 880RPM
  • Inlet Density: 0.075lbs/ft³
  • Blade Tip Angle: 34°
• Drive:
  • Make: Teco-Westinghouse
  • Type: AEJH-8A001
  • Power Output: 1,000HP
  • Poles: 8
  • Voltage: 4,000 Volts
  • Current: 130 Amps
  • Rotation Speed: 890RPM
  • Frequency: 60Hz
  • Rating: Continuous
  • Phase: 3-Phase

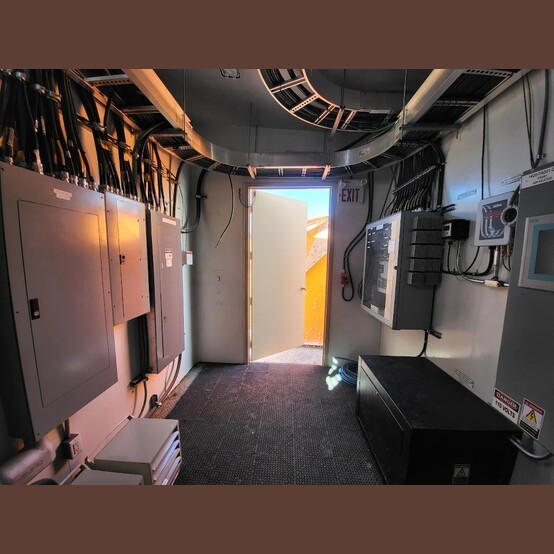

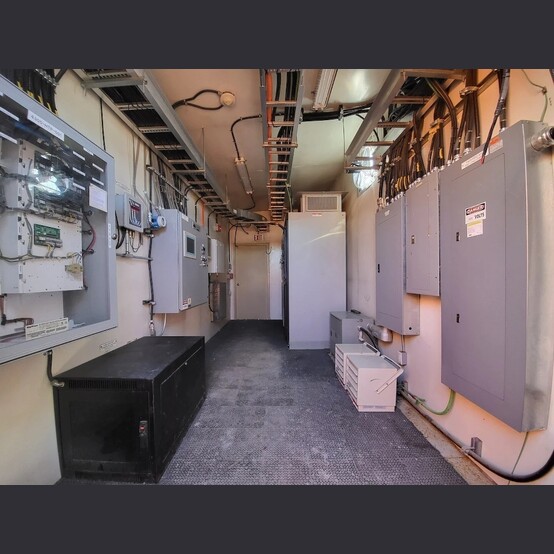

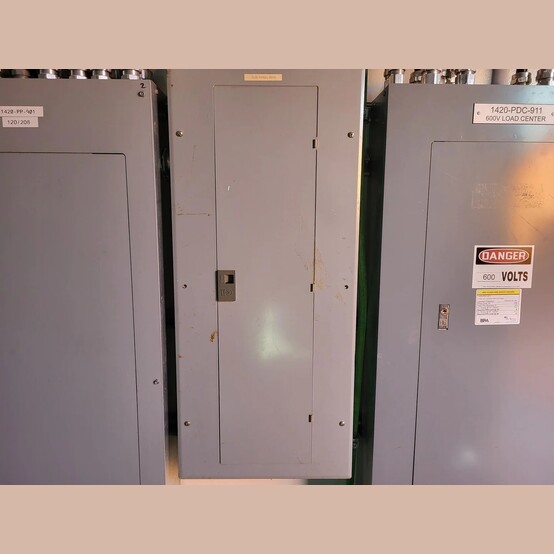

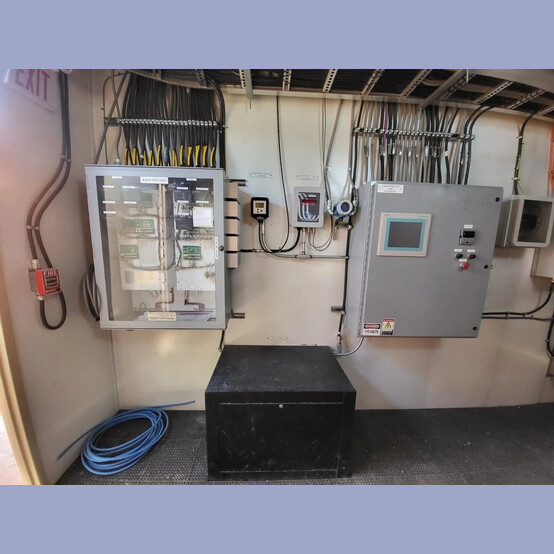

• Control Module Components:

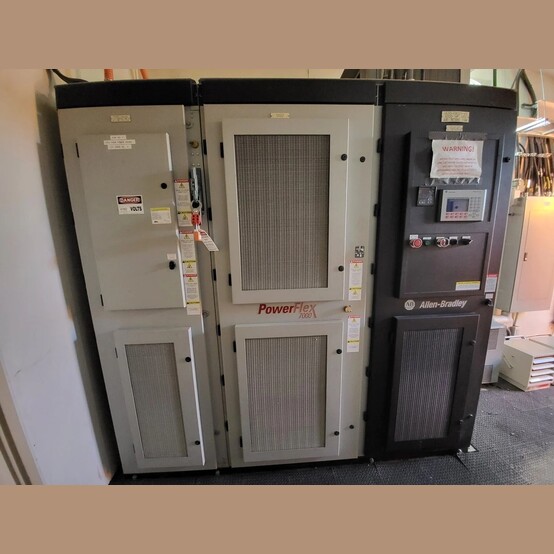

  • Allen-Bradley PowerFlex 7000, 1000HP VFD
  • Motor and Fan Controls

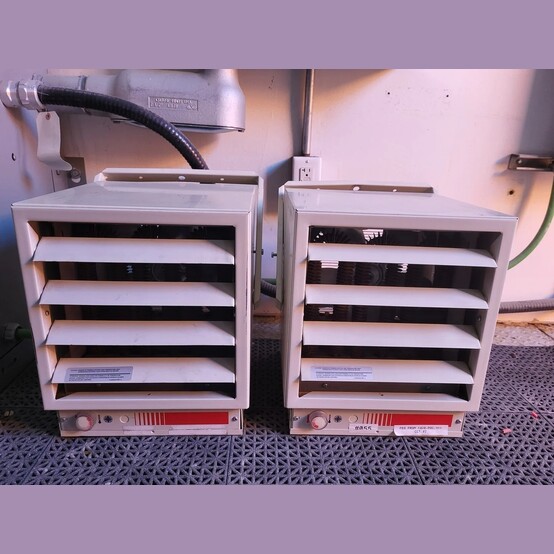

  • Building Heating Units

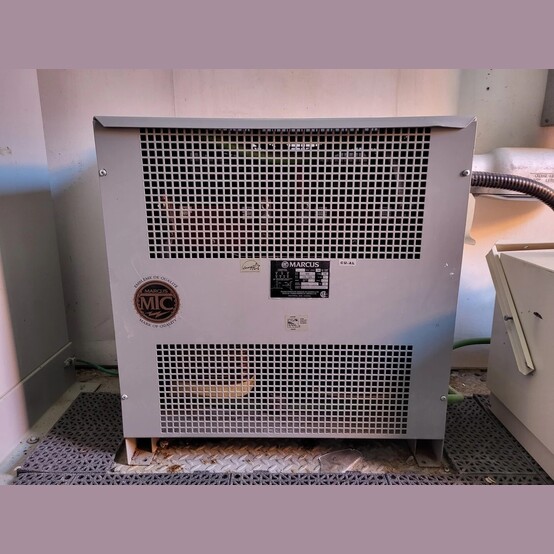

  • Control Transformers
  • Heat Trace Control Panel and Power Supply for Insulated Fuel Lines (in FAR #1 Control Module Only)

• Location: Western Canada
