500 TPH Gold Wash Plant with KPI-JCI Screen Deck and Sluice Boxes

• Capacity: Max 500 TPH
• Condition: Used, Reported in Good Condition

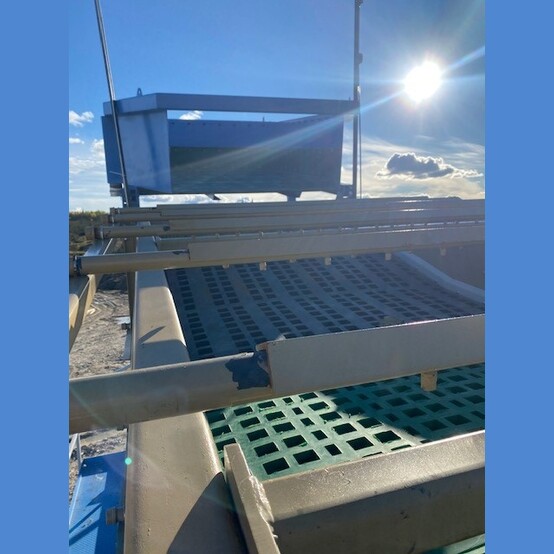

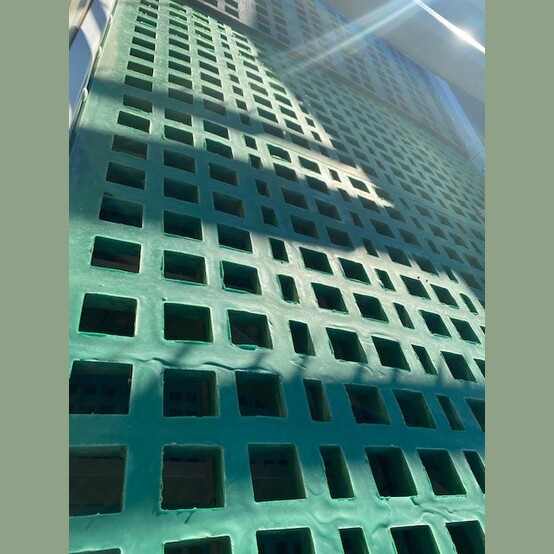

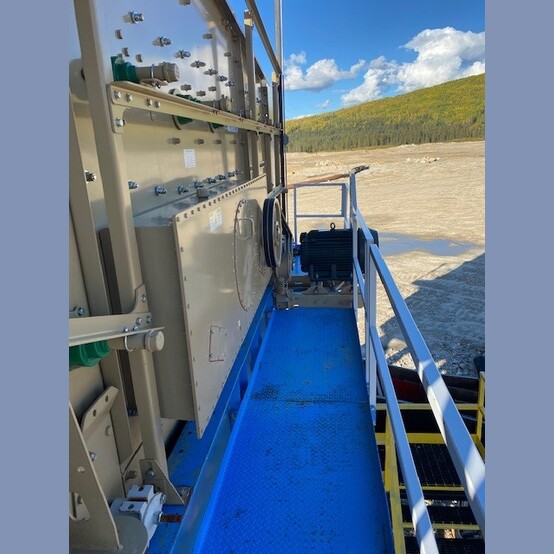

• KPI-JCI 8ft x 20ft 3-Deck Wash Plant

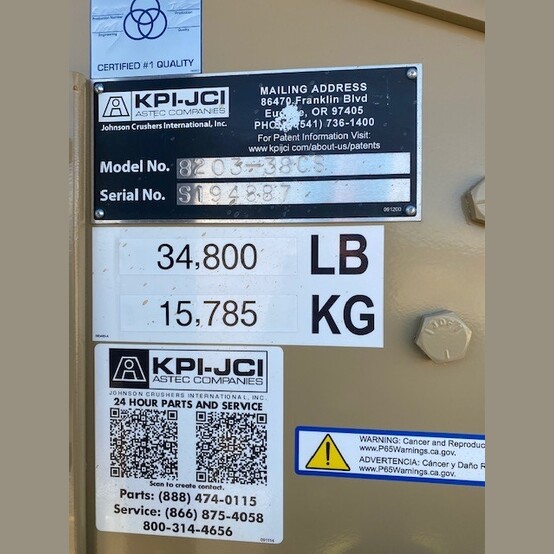

  • Make: Astec KPI-JCI
  • Model: 8203-38CS
  • Style: Combo Screen
  • Size: 8ft Wide x 20ft Long
  • Decks: 3-Tier Deck
    • All Decks Angled at 20° First 4ft, 10° next 4ft and Horizontal for the Remaining
  • Capacity: Up To 800 YPH
  • Condition: Never Used

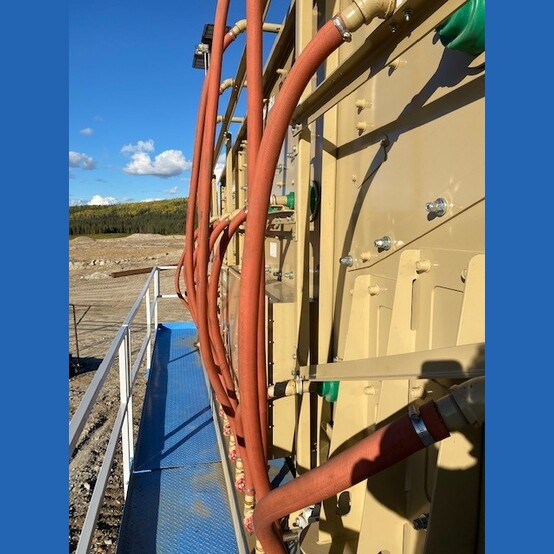

  • 10in Water Manifold and Valves
  • 480 Volt Power Requirement
  • Step-Down Transformer 120/240V

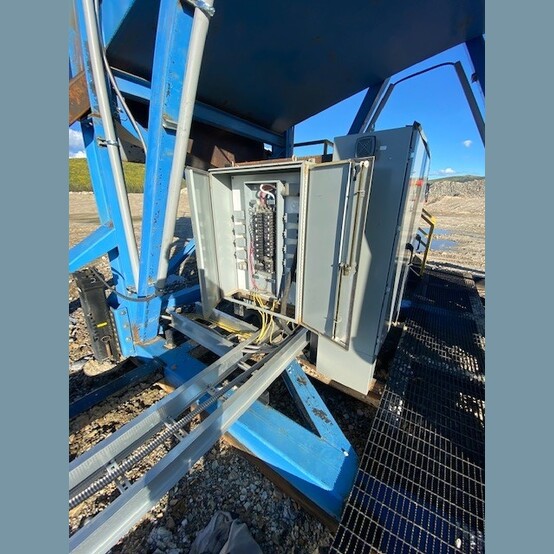

    • With Panel and Plugs
  • Lights have Plug-Ins for Local Power
  • Hydraulic Pack
    • For Leveling Jacks (4 Units)
  • Comes with Discharge Chute
  • Mounted On Skid


  • General Specifications:
    • Adjustable Stroke Length (Amplitude): Max 0.625in to 0.75in
    • Adjustable Stroke Angle (Timing Angle): 30° to 60°
    • Operating Speed Range: 675-875 RPM
    • Maximum Feed Size: 10in

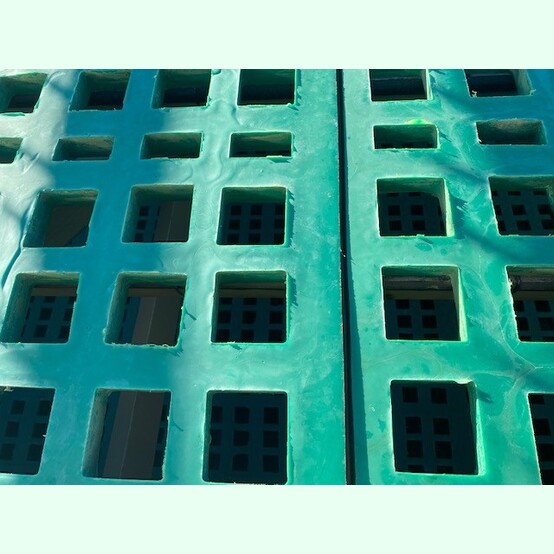

    • Maximum Media Weight: 8 lbs./ft²
    • Maximum Top Deck Opening: 4in
    • Maximum Feed Drop Height: 18in
    • Bearing Size: 190mm Wide

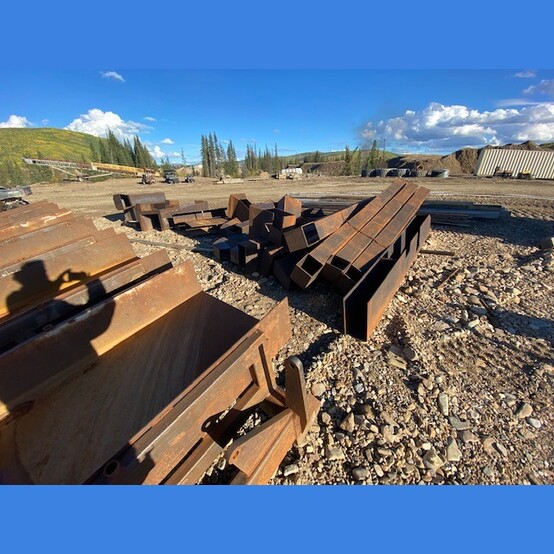

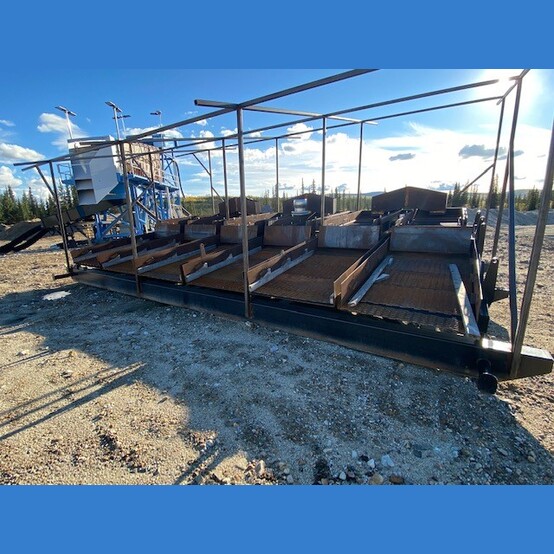

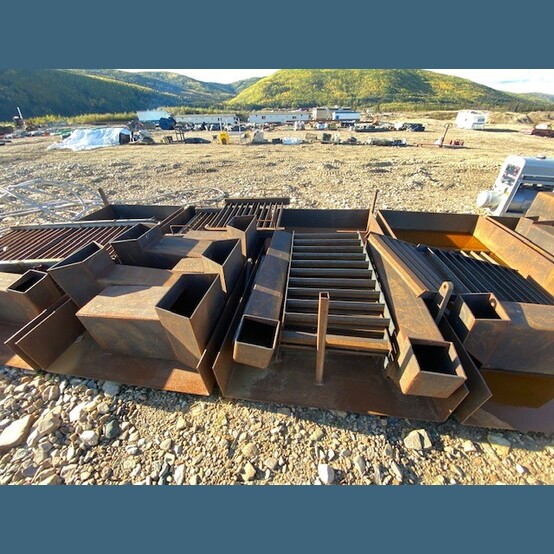

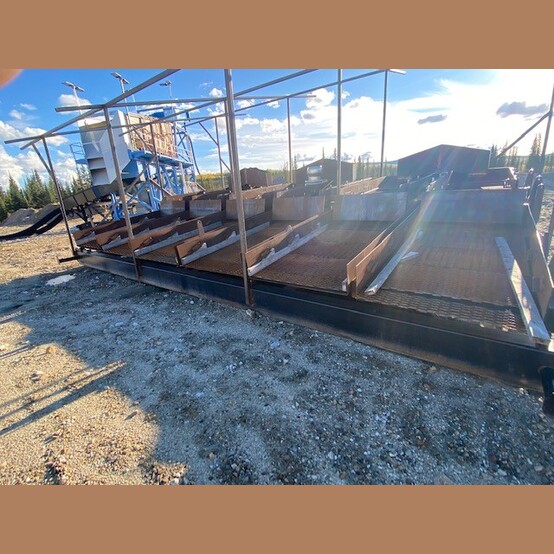

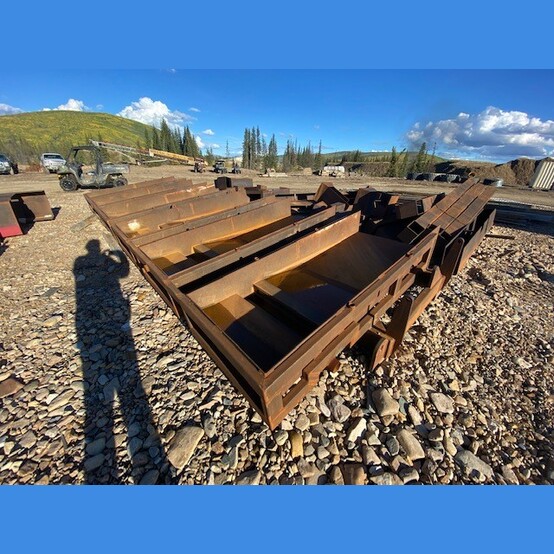

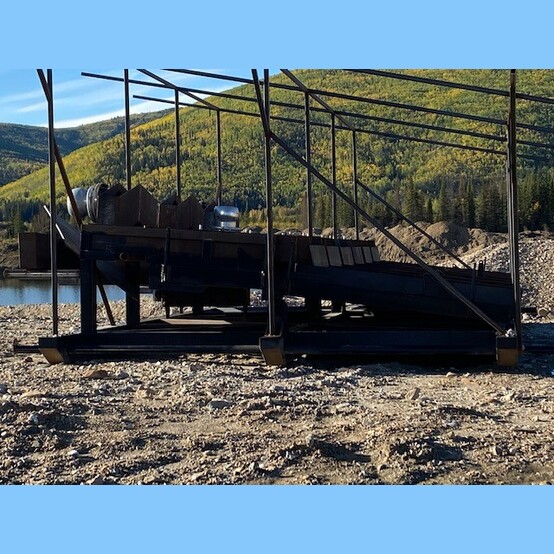

• 16ft x 32ft Sluice Boxes

  Quantity: 2 Sets

  • 2 Section Sluice Runs
  • Sluice Boxes are Skidded
  • Both Runs are Hinged in the Middle to Allow Angle Change
  • 6 Runs Per Skid
  • 2nd Set Need Assembly
    • Skid Welded, Runs Installed
    • Blueprints and Install Explanation Available

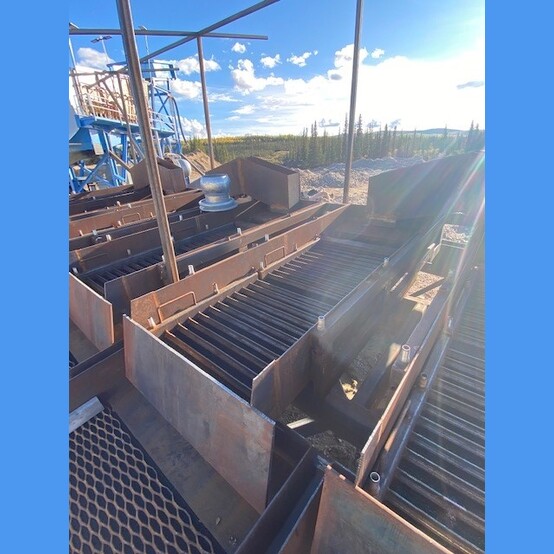

  • Top Runs:
    • 3ft Wide x 8ft Long
    • With Boiler Box

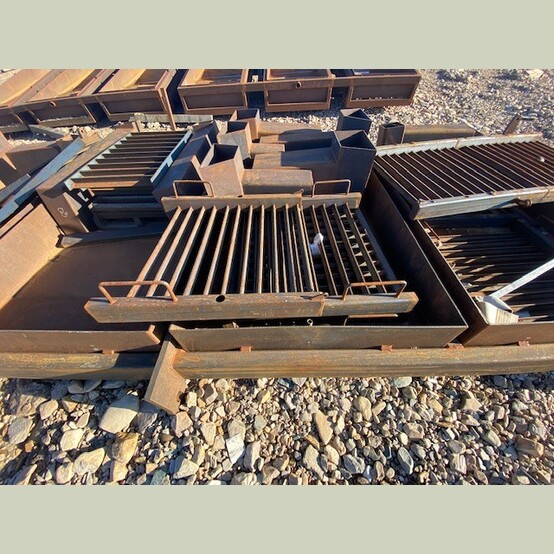

    • Hydraulic Riffles

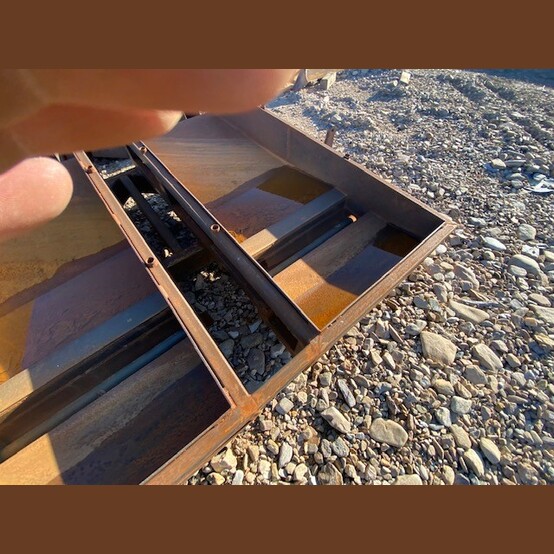

  • Bottom Runs:
    • 4ft Wide x 8ft Long
    • Expanded Metal
    • Ready For Miner's Moss


• Location: Northwest Canada
