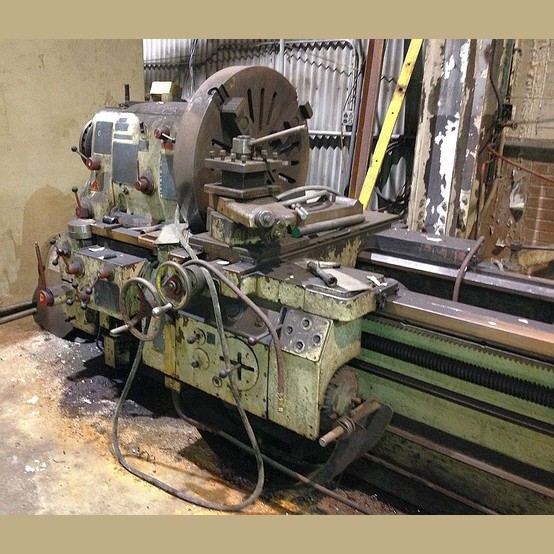

• 35 in. x 336 in. Bed Lathe.
  • Model: TOS SU-80-A.
  • Manufactured in 1964.
    • 30 speeds: 6.7 to 1,000 rpm.
    • 48 threads: 1 to 80 TPI (threads per inch).
      • Metric threads: 0.5 to 4mm.
    • 41 Feeds:
      • Carriage: .002 to .242 IPR.
      • Cross slide: .001 to .121 IPR.
    • #6 M.T. in tailstock.
    • 4 way P.R.T. to carriage.
    • 35 inch swing over bed.
    • 26 5/8 inch swing over cross slide.
    • Complete with:

      • 25 hp electric motor.
        • 220/440V.
        • 3 phase.
        • 60 Hz.
      • Electrical controls.
      • Flamed hardened & ground bedways.
      • 4 way chuck.
      • 4 way tool post, taper and steady rest.

Please contact us for more information.
