2014 Atlas Copco FlexiROC T45 Drill
- Make: Atlas Copco
- Model: FlexiROC T45
- Year: 2014
- Type: Quarry and Construction Drill
- Hours: 13,219 Total Hours
- Percussion Hours: 4,922
- Condition: Used Condition - No Noticeable Blowby or Known Issues with Engine
- Setup for T51 Drill Steel (51mm)
- Rock Drill: Atlas Copco COP3060 Drifter - Rebuilt @ 13,214 Engine & 4,921 Percussion Hours
- Boom: Fixed Boom
- Engine: Caterpillar C9.3 Diesel Engine (325HP)
- Compressor: 472 CFM @ 174 PSI Onboard Air Compressor
- Undercarriage Overhauled at 12,917 Hours
- Currently Installing a New Auto Greaser
- General Model Specifications:
- Hole Range:
- T51, T60: 89–140mm (3.5”– 5.5”)
- T51, T60 Max Hole Depth: 35m (115’) - Hydraulic Rod Handling System with 4,2m (14’) Extension Rods and a 6.1m (20’) Starter Rod
- Hydraulic Rock Drill: COP 3060
- Impact Power: 30kW (41HP)
- Hydraulic Pressure: 240 bar (3,481 PSI)
- Impact Rate: 50Hz
- Torque: 2,450Nm (1,807 lbf/ft)
- Feed: T45 With Fixed Boom
- Feed Extension: 1,900mm (6’ 3’’)
- Feed Rate, Max: 0.9 m/s (177 ft/min)
- Feed Force, Max: 40 kN (8,992 lbf)
- Tractive Pull, Max: 50 kN (11,240 lbf)
- Total Length: 9,500mm (31')
- Travel Length: 5,520mm (18’ 1’’)
- Compressor: Atlas Copco C146-07, Screw Type Compressor
- Working Pressure, Max: 12 bar (174 PSI)
- FAD, at Normal Working Pressure: 223 l/s (472 CFM)
- Dust Collector: DCT 200
- Filter Area: 20m² (215 sq.ft)
- Number of Filter Elements: 20 pcs
- Suction Capacity at 500mm W.G: 540 l/s (1,144 CFM)
- Suction Hose Diam: 127mm (5’’)
- Cleaning Air Pressure, Max: 7.5 bar (109 PSI)
- Cleaning Air Consumption: 2-4 l/pulse (0.06 - 0.12 cu.ft/pulse)
- Carrier:
- Tramming Speed: 3.4 km/h (2.1 mph)
- Track Oscillation: ±10°
- Ground Clearance: 405mm (16”)
- Main Components:
- Crawler Type Two-Speed Undercarriage with Track Oscillation System
- Caterpillar Turbocharged Diesel Engine
- Atlas Copco Screw Type Compressor
- Dust Pre Separator
- Combined Warning Sound and Warning Light
- Fixed Boom System
- Air Flow Switch
- Rock Drill Lubrication System
- COP Logic
- Toe-Hole Drilling System
- Carousel Type Rod Handling System
- Hydraulic Double Drill Steel Support with Movable Dust Collector Hood
- Double Hose Drum
- Dust Collection System

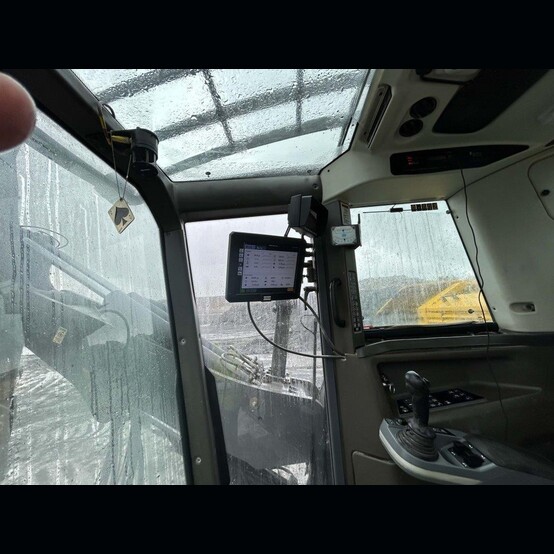

- Operator’s Cabin, ROPS and FOPS Approved
- Hole Range:
- Location: USA
