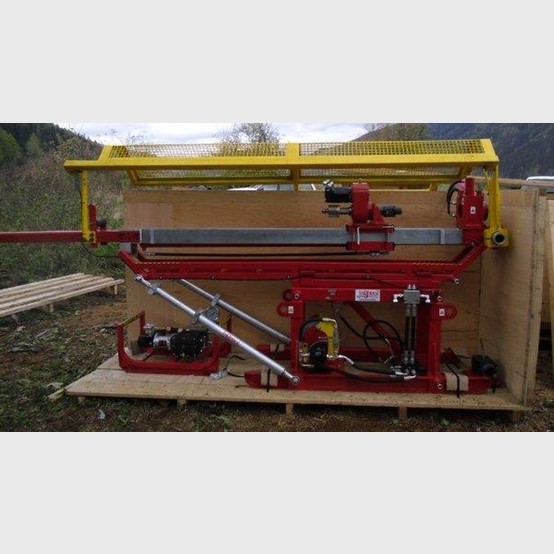

- New/Unused 2011 Ingetrol Explorer Junior 36D Diamond Drill.
- The 'Explorer Junior 36D' maintains the Ingetrol characteristics of versatility, portability, easy operation and maintenance.
- The majority of the spares are universal, which means that they can be found in the local market to save you time and money.
- Ingetrol uses the latest technology in all of their hydraulic components.
- Portable Diamond Core Drill.
- Stroke: 1.7 m.
- Pushing Force: 2,010 kg @ 2,200 psi.
- Pulling Force: 3,141 kg @ 2,200 psi.
- Depth Capability:
- 150m - Ø TT46 (Ø 1.378 in.)
- 130m - Ø BTW (Ø 1.654 in.)
- 100m - Ø B W/L (Ø 1.437 in.)
- Feed Frame: Steel.
- Rotation Unit.
- Eaton-Charlynn hydraulic motor.
- 0 - 842 rpm.
- Maximum torque: 235 Nm.
- Completely sealed.
- Eaton-Charlynn hydraulic motor.
- Power Unit.
- 36 hp Kubota liquid cooled turbo diesel.
- Connected to a Sauer-Danfoss axial piston pump.
- Variable flow load sensing.
- Load sensing offers advantages such as:
- Improved efficiency.
- Increased lifespan of the motor.
- Lower fuel costs.
- Load sensing offers advantages such as:
- Variable flow load sensing.
- Connected to a Sauer-Danfoss axial piston pump.
- Independent module for hydraulic oil tank.
- Temperature and level indicator.
- Pressurized cover.
- Pressure and return filters.
- Oil/Air intercooler.
- Independent module for fuel tank and battery.
- 36 hp Kubota liquid cooled turbo diesel.
- Control Panel.
- Sauer-Danfoss compact load sensing valves with levers that:
- Drive rotation.
- Slow/Fast feed.
- Water pump.
- Wire line hoist.
- Hydraulic rod holder.
- Three gauges to monitor the system, rotation and feed pressures.
- Sauer-Danfoss compact load sensing valves with levers that:
- Water Pump.
- GP piston pump.
- Model T41.
- 12 gallons per minute.
- Relief valve driven from control panel.
- Model T41.
- Mounted on a skid.
- GP piston pump.
- Double Effect Rod Puller.
- Facilitates extraction of the drill column.
- Includes one set of jaws.
- Hydraulic Rod Holder.
- Fastens the rods, driven from the control panel.
- Includes one set of jaws.
- Wire Line Hoist.
- Recovery and placement of the interior tube in the drill string.
- Includes 150m of wire line cable.
- Total Weight.
- 550 kg.
