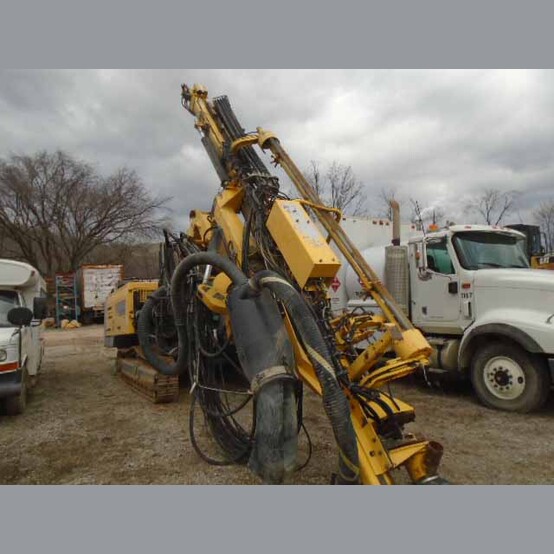

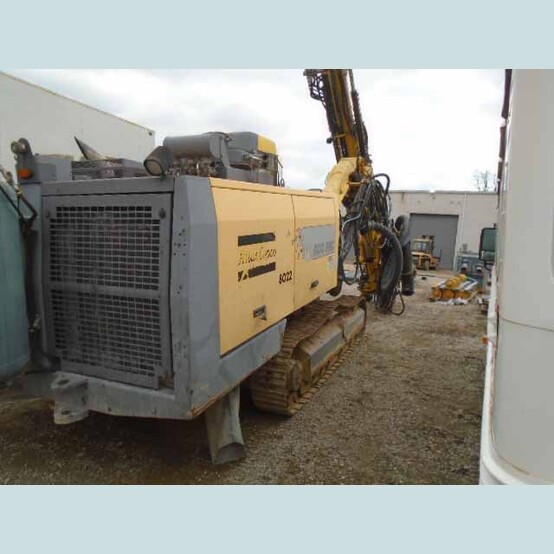

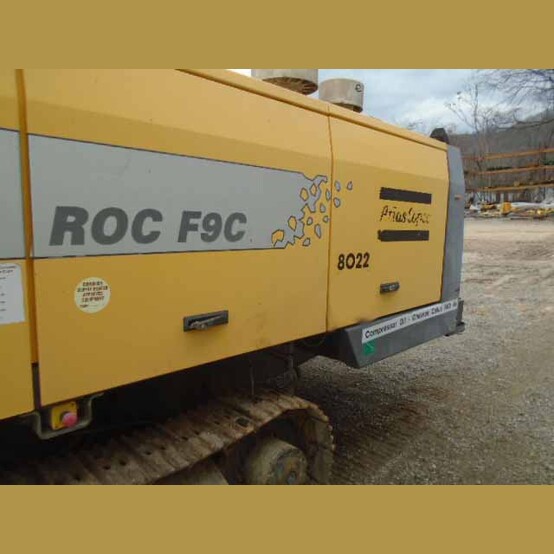

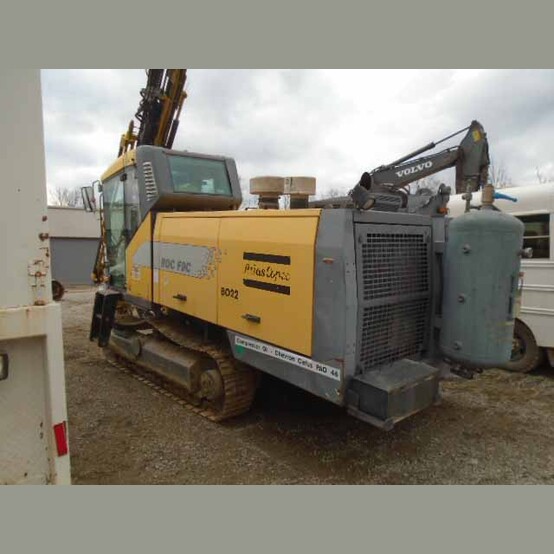

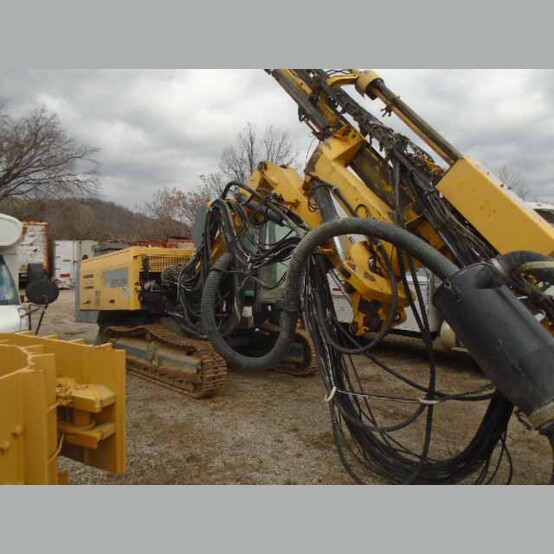

2010 Atlas Copco ROC F9C Drill

• Make: Atlas Copco
• Model: ROC F9C
• Type: Quarry Rig, Tophammer Rig
• Condition: Used, Reported in Good Condition, Ready-to-Work
• Year: 2010
• Hours: 6,842 Hours
  • Drifter: 314 Hours
  • Engine: 1,220 Hours

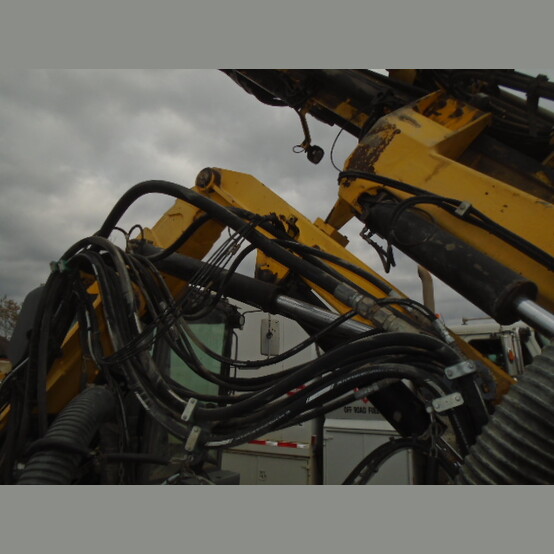

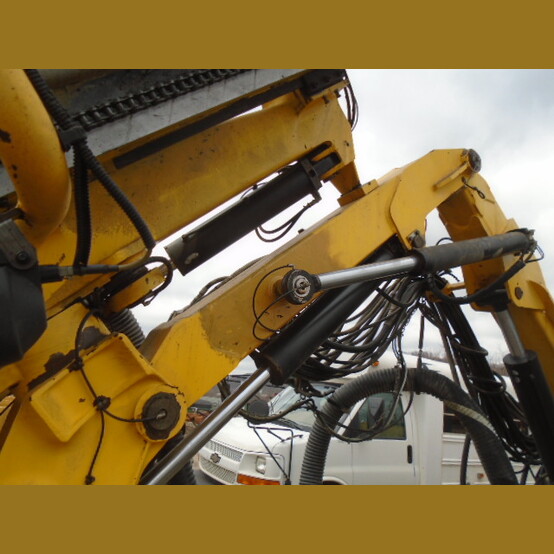

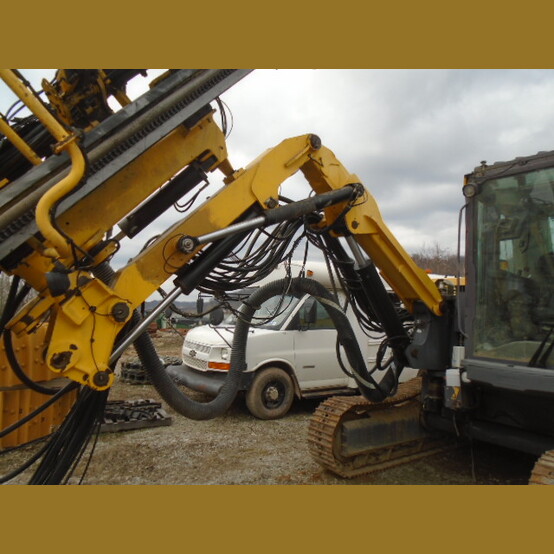

• Boom: 2 Piece Articulated Boom - Non-Extendable

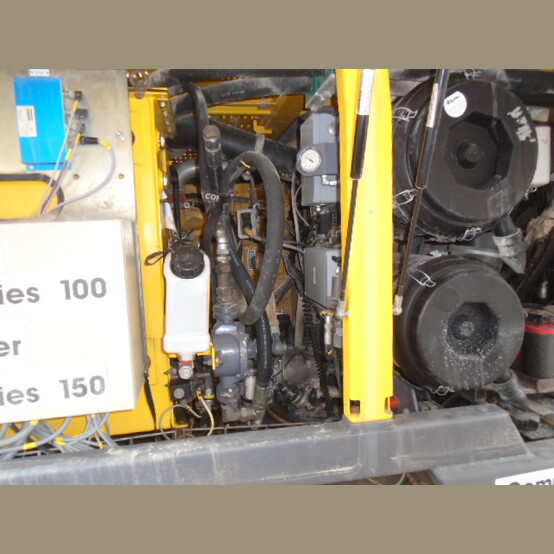

• Engine: CAT Diesel

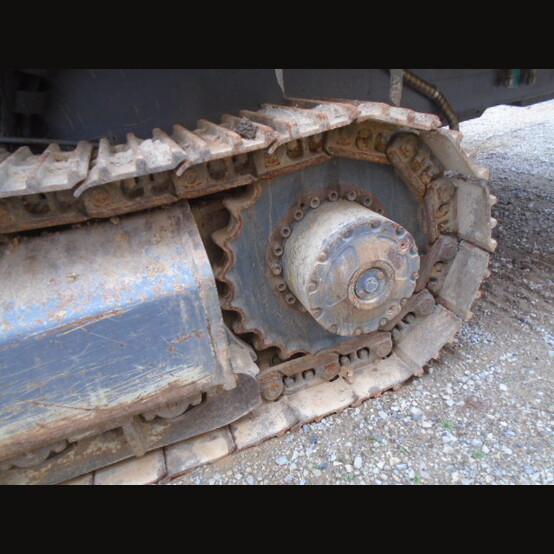

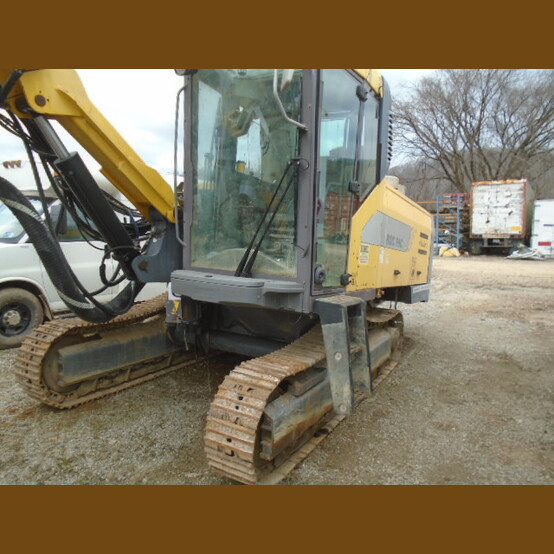

• Motion: Crawler Tracks
• Setup for T51 Drill Steel

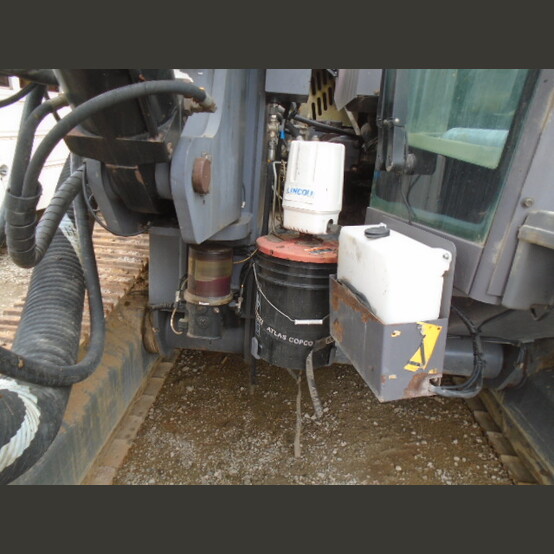

• Auto Grease
• Carousel Type Tube Handling System
• Dust Collector

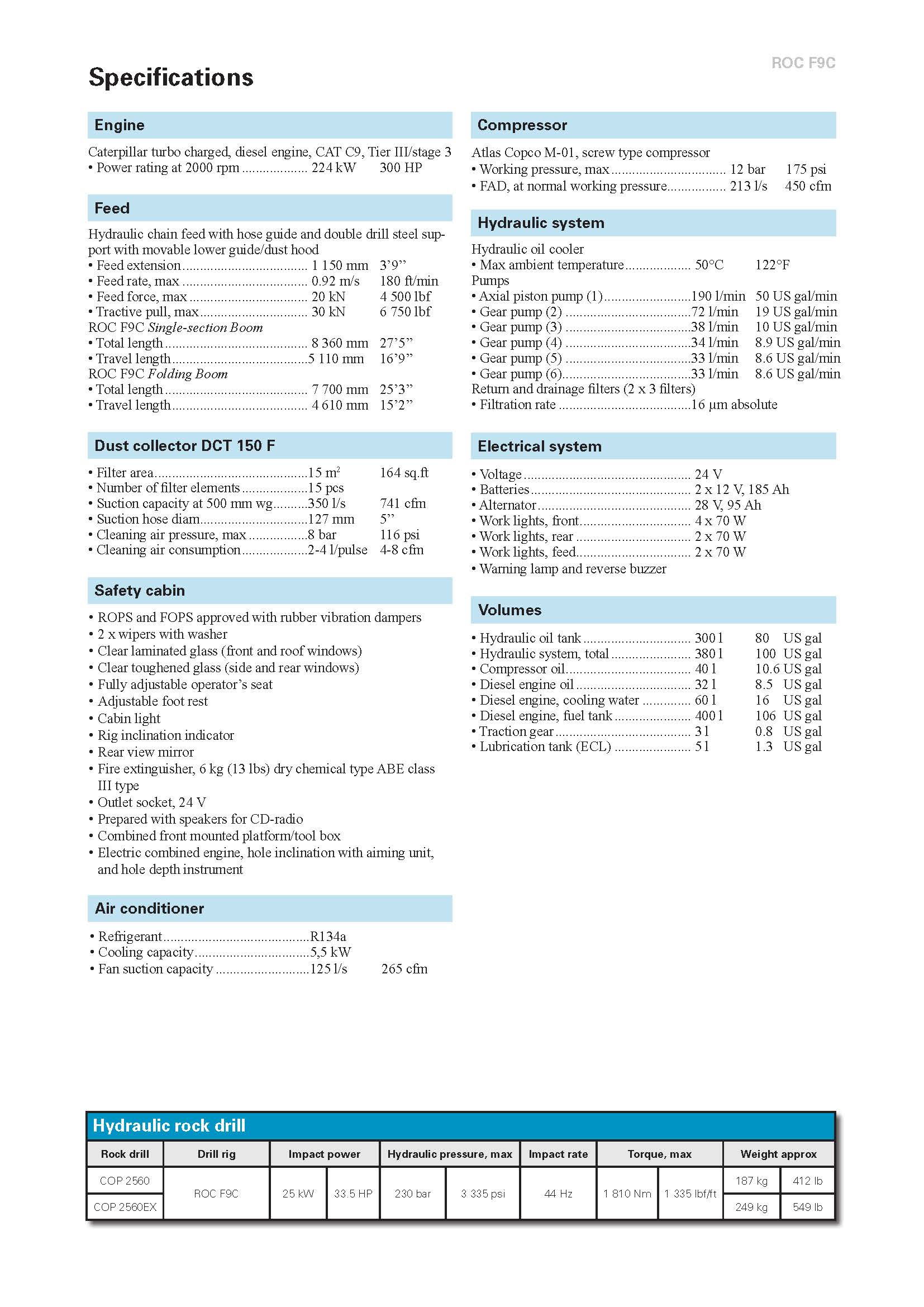

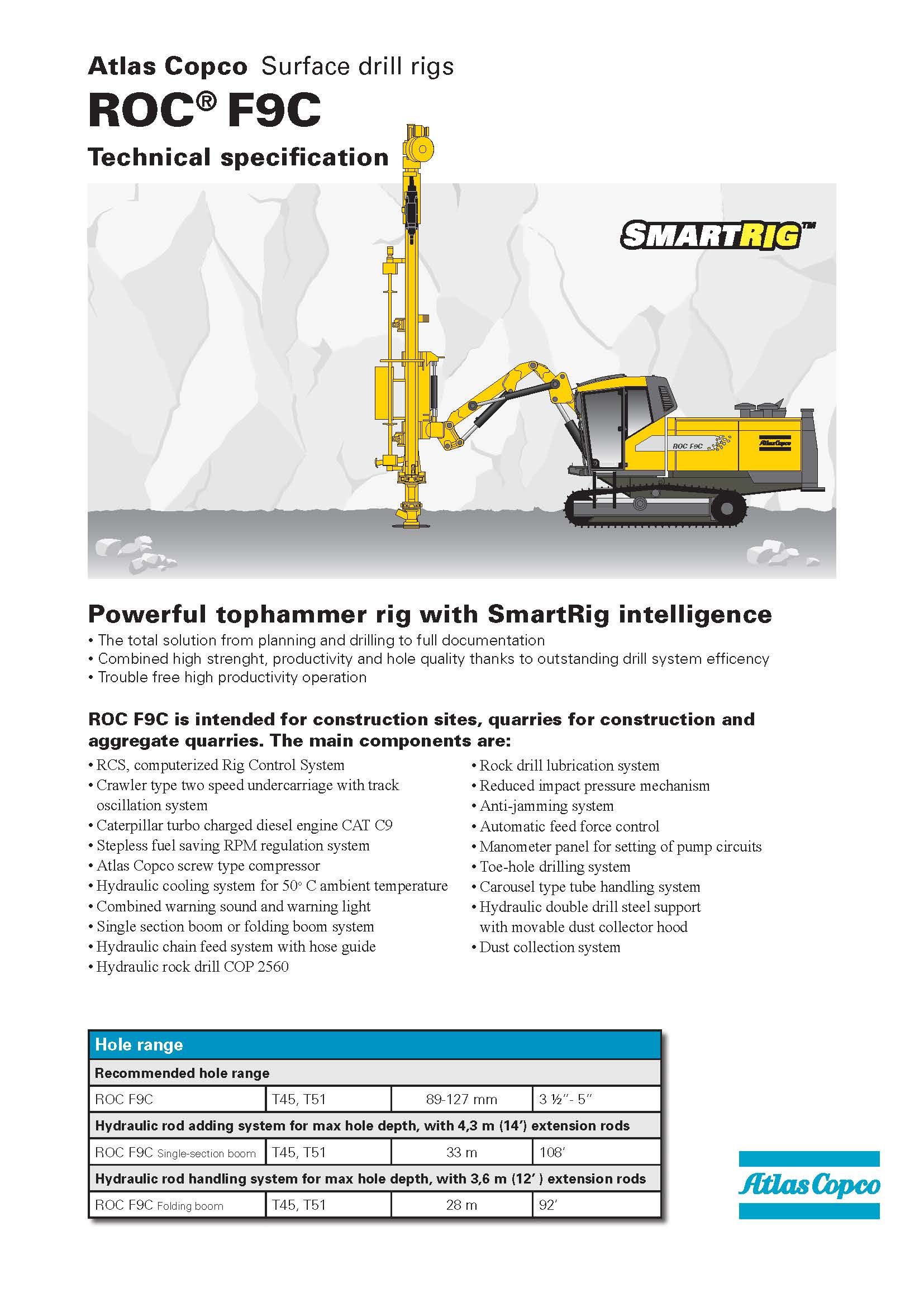

• General Model Specifications:
  • Hole Range:
    • Recommended Hole Range: T45 or T51 - 89-127 mm (3 ½”- 5”)
    • Hydraulic Rod Handling System for Max Hole Depth (with 3.6m (12’ ) Extension Rods): 28m (92')


  • Hydraulic Rock Drill: COP 2560 or COP 2560EX
    • Impact Power: 25kW (33.5HP)
    • Hydraulic Pressure, Max: 230 bar (3,335 PSI)
    • Impact Rate: 44Hz
    • Torque, Max: 1,810Nm (1,335 lbf/ft)

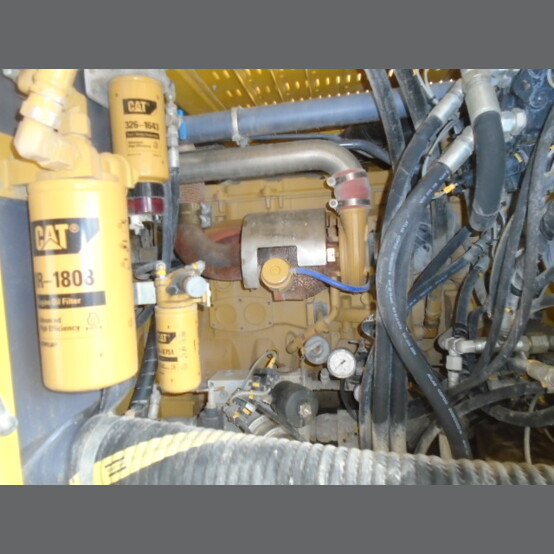

  • Engine: Caterpillar C9 Diesel Engine Tier III/Stage 3
    • Power Output: 300HP (224kW)

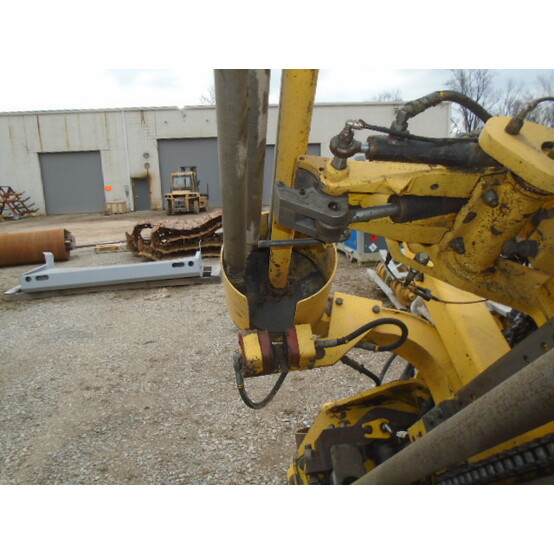

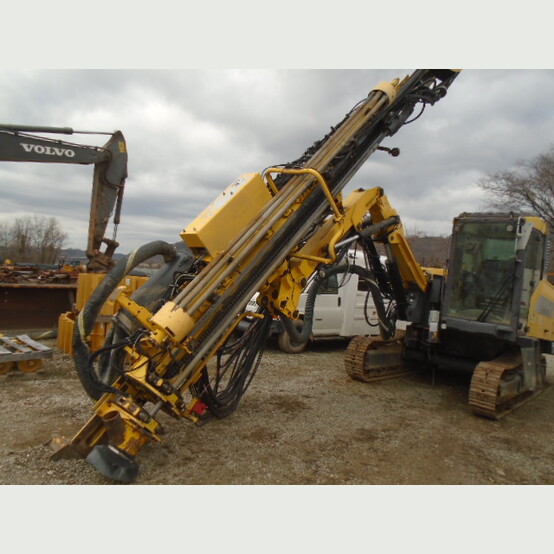

  • Feed: Hydraulic Chain Feed with Hose Guide and Double Drill Steel Support with Movable Lower Guide/Dust Hood
    • Feed Extension: 1,150mm (3’ 9’’)
    • Feed Rate, Max: 0.92 m/s (180 ft/min)
    • Feed force, Max: 20 kN  (4,500 lbf)
    • Tractive Pull, Max: 30 kN (6,750 lbf)

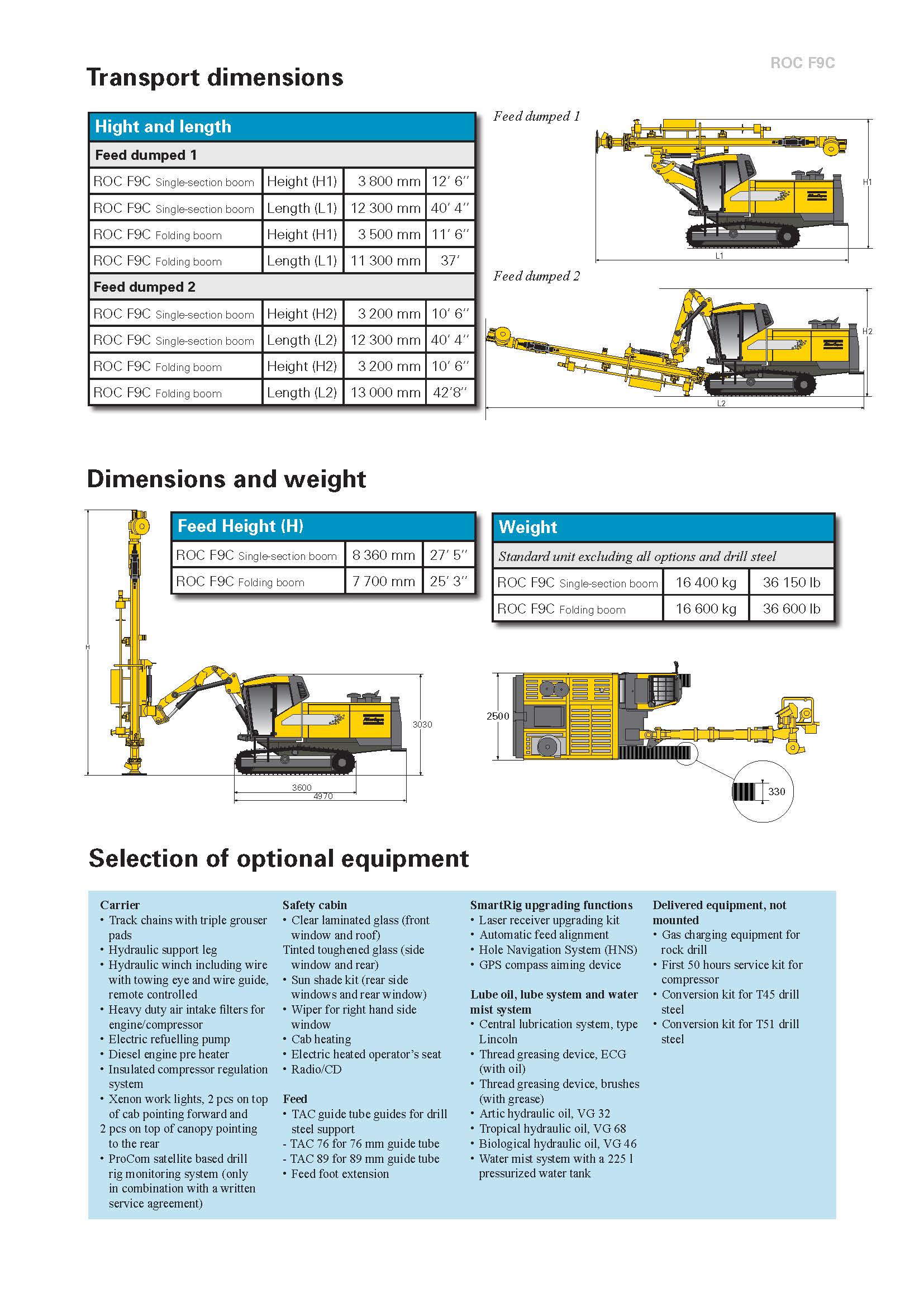

    • Folding Boom:
      • Total Length: 7,700mm (25’ 3’’)
      • Travel Length: 4,610mm (15’ 2’’)

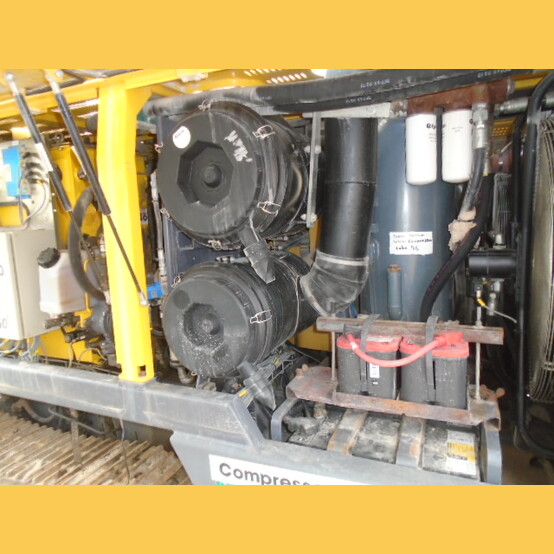

  • Compressor: Atlas Copco M-01, Screw Type Compressor
    • Working Pressure, Max: 12 bar (175 PSI)
    • FAD, at Normal Working Pressure: 213 l/s (450 CFM)


  • Dust Collector: DCT 150 F
    • Filter Area: 15m² (164ft²)
    • Number of Filter Elements: 15 pcs
    • Suction Capacity at 500mm W.G.: 350 l/s (741 CFM)
    • Suction Hose Dia: 127mm (5’’)
    • Cleaning Air Pressure, Max: 8 bar (116 PSI)
    • Cleaning Air Consumption: 2-4 l/pulse (4-8 CFM)


• Location: Eastern USA
