Equipment List:

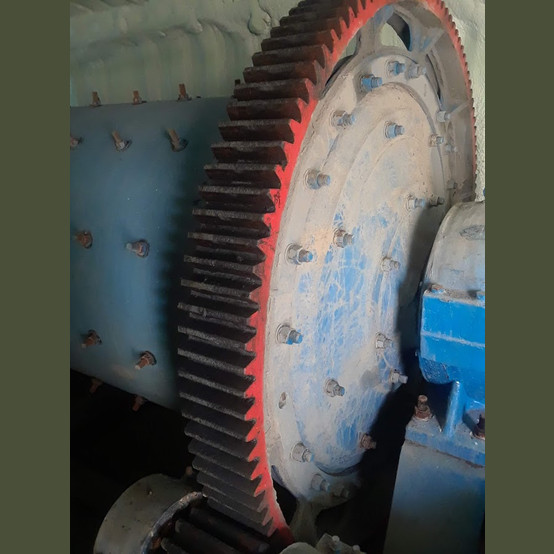

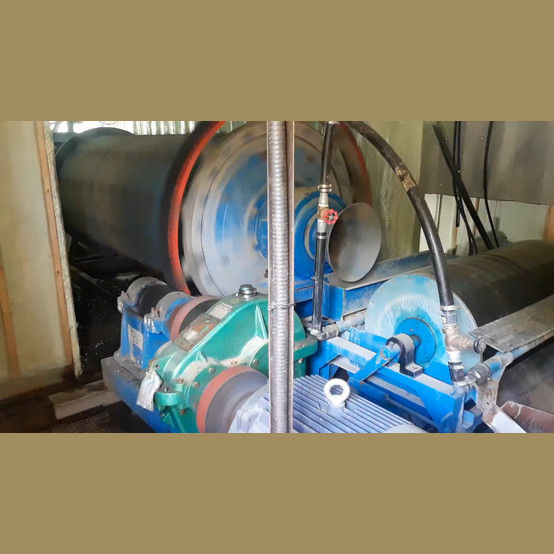

• 4 x 10 Ball Mill
  • 37 kW
  • With Separate MCC
  • Built by WinnerMac
  • Gears Installed and Laser Aligned
  • Steel Liners Installed
  • Magnetic Separator Installed on Discharge End
  • Field Disconnects Installed in Mill
  • Benshaw Speed Controller Positioned in 20 ft. MCC Container

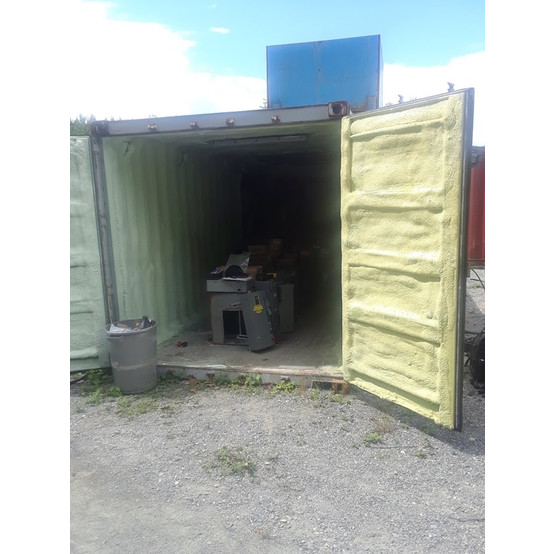

  • Mill Containers Spray Foam Insulated
• Gravity & Flotation Equipment

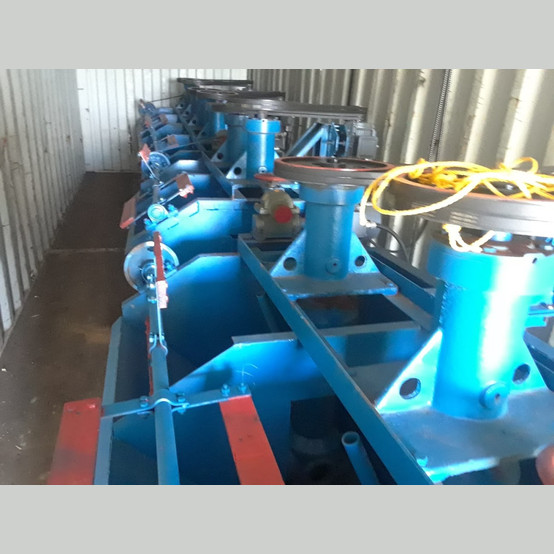

  • 18 Cubic ft. Denver Style Flotation Cells
  • 4 in. S.S Pneumatic Feed Sampler
  • WinnerMac STL 30 (6 in. Manual Centrifugal Concentrator)
  • 4 – 18 Cubic ft. Flotation Cells Feed from Gravity
  • 6 x 16 Shaker Table
  • 100 Amo Main Disconnect & Local Disconnect
  • Connected to a Mobile 480 Volt Generator

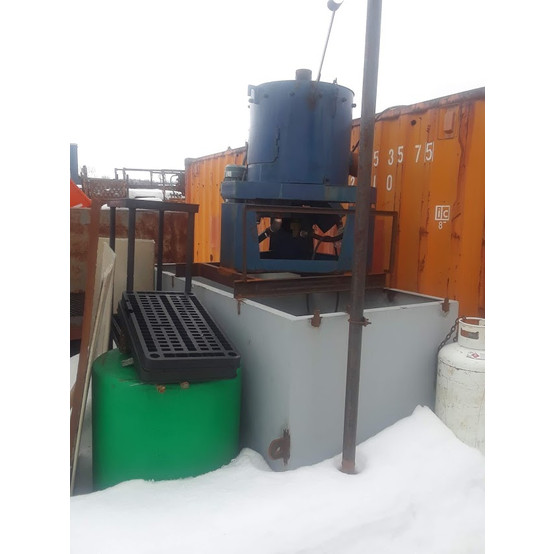

• WinnerMac STL30 Concentrator
  • 4 x 8 Two Compartment Pump Box
  • 1^st Compartment for Concentrator Feed
  • 2^nd Compartment Set Up for Hole 1 T Supersacks for Holding Gravity Concentrates
  • Electrically Connected to a Portable Generator
  • Siemens 3.7 kW 208/480 Volt Motor
• Refining Equipment

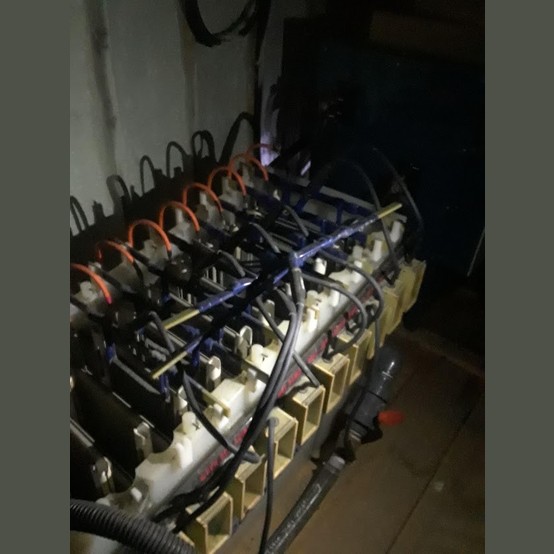

  • PMPPC IonnetX Electrowinning Cell
  • Operates on 480 Volt 25 kW Rectifier

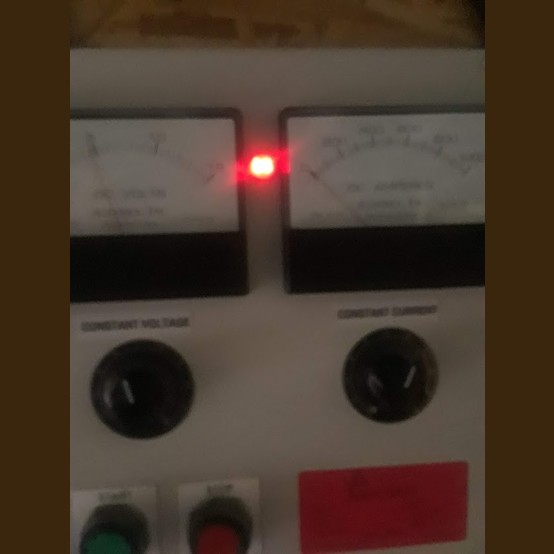

  • Aldonex Air Cooled Power Supply 1000 ADC 0-12 VDC Output
  • Aldonex Power Supply
  • 1000 Gallon Tanks or 1000 L Totes for Preganant & Barren Tanks
  • Suitable for use with 1T Carbon Stripping Vessels

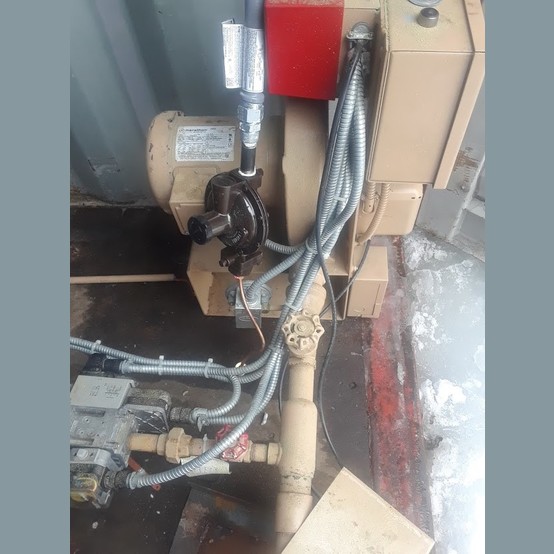

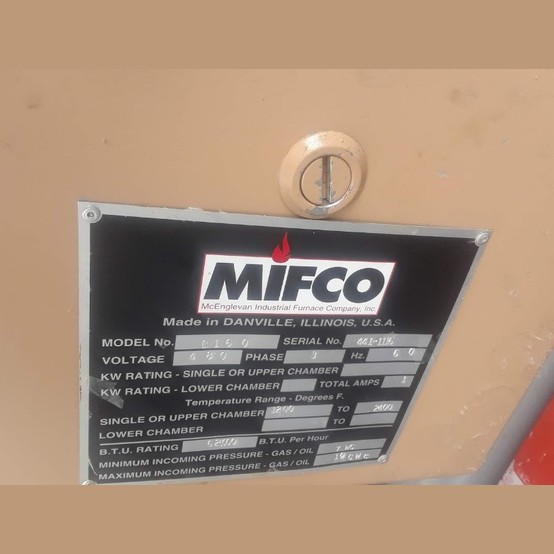

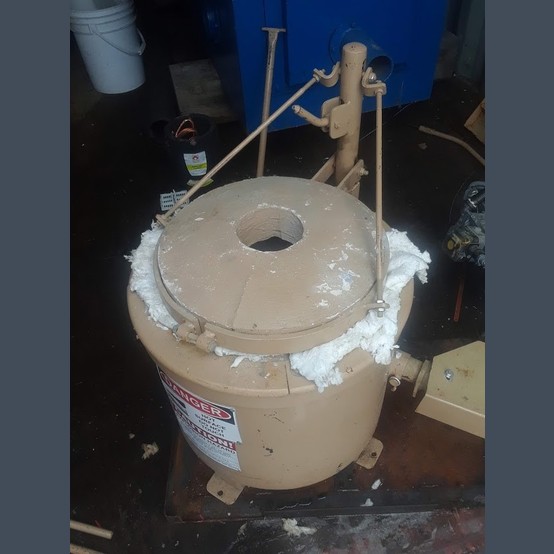

  • MIFCO (MCEnglecan Industrial Furnace Co.) 2016 Model
  • B-160 Model – Capable of Utilizing #16 Crucible for Melting up to 30 lbs. Copper – 300 Troy Ounces
  • Requires 300 lbs. Propane Supply for 425,000 BTU

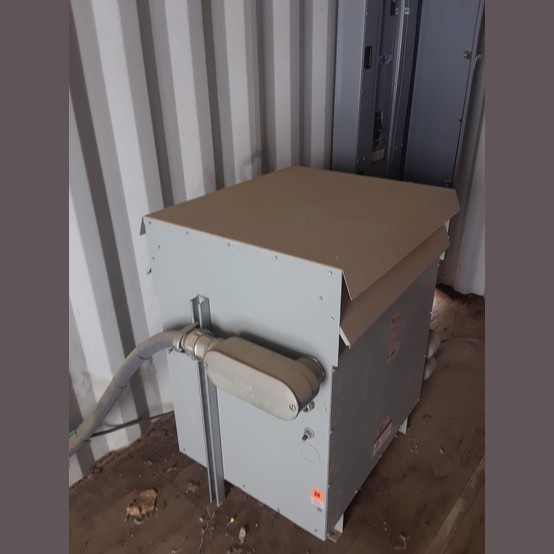

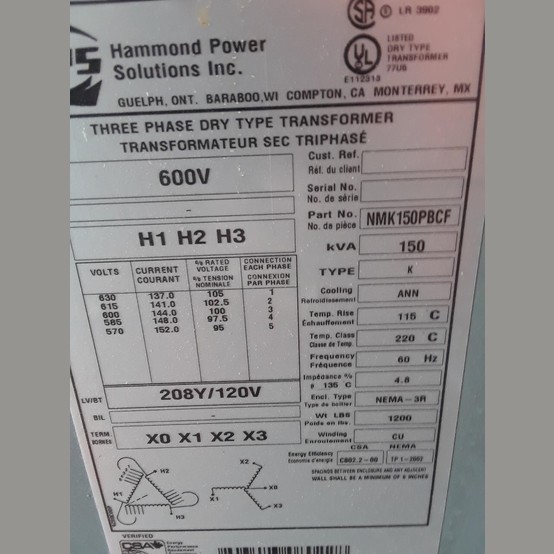

• 600 V-208 Step Down 200 kW Transformer
• 2 – 5 x 16 Double Deck Shaker Tables
• 3 – 1000 Gallon Agitated Tanks
• 3 x 10 Rotary 4mm Trommel
• 2 ft. x 20 ft. Rotary Screw Classifier
• Dust Collection Cyclone
• 6 in. x 8 ft. Rotary Screw Classifier
• 2 – 4 in. Chinese Hydro Cyclones
• Additional Spare Siemens 480 Volt Motor
• 480 Volt 100 kW Scania Generator
• 600 Volt 100 kW Cummins Generator
• Rotex 18 in. x 30 in. Single Deck Screener
  • 1mm Screen
• Location: Eastern Canada
